Product Overview

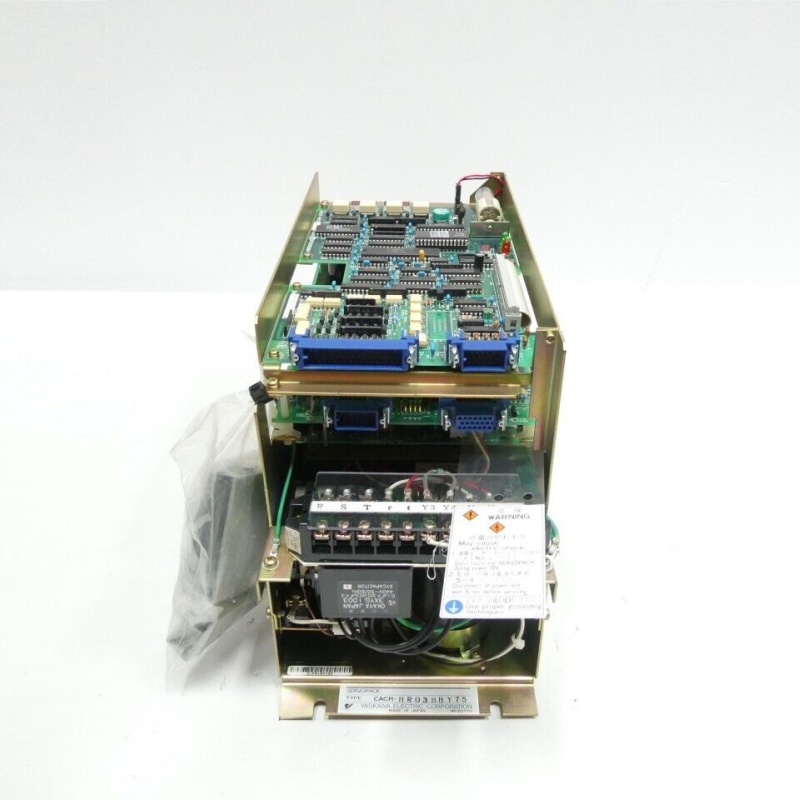

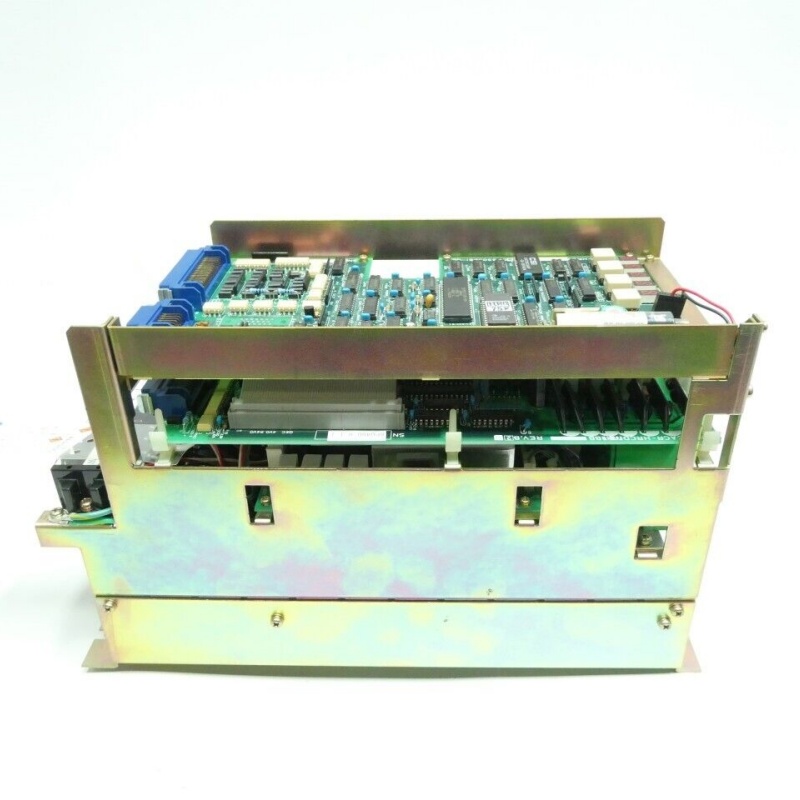

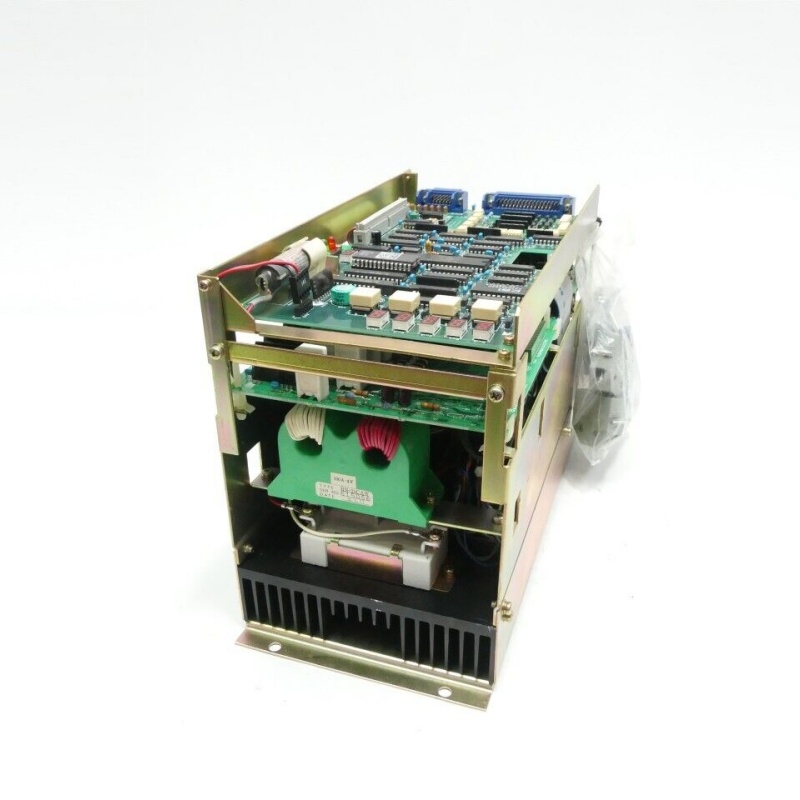

Yaskawa CACR-HR03BBY75 is a high-performance 300W servo drive developed by Yaskawa,a leader in industrial automation.As part of Yaskawa’s HR series,this servo drive is engineered to deliver precise control over position,speed,and torque in light to medium-load applications,serving as a critical link between control systems and servo motors in automation setups.
Yaskawa CACR-HR03BBY75 excels in converting control signals from PLCs or motion controllers into smooth,accurate motor movements,making it indispensable in systems where precision is paramount.Its design balances power and compactness,allowing integration into space-constrained equipment without sacrificing performance.Whether deployed in electronic manufacturing,packaging lines,or automated assembly stations,Yaskawa CACR-HR03BBY75 ensures stable operation,reducing downtime and enhancing overall process efficiency.
Technical Specifications
Parameter Name Parameter Value
Product Model Yaskawa CACR-HR03BBY75
Manufacturer Yaskawa(Yaskawa Electric Corporation)
Product Type AC Servo Drive
Rated Output Power 300W
Input Voltage Single-phase 200-240V AC,50/60Hz
Rated Output Current 3.5A(rms)
Control Modes Position control,speed control,torque control
Communication Interface Pulse train input,analog signal(0-10V/4-20mA)
Response Frequency 3kHz
Operating Temperature 0°C to 55°C
Storage Temperature-20°C to 65°C
Dimensions(W×H×D)70mm×120mm×90mm
Weight Approximately 0.9kg
Protection Features Overcurrent,overvoltage,undervoltage,overload,overheating,encoder fault
Installation Method DIN rail mounting
Main Features and Advantages
Precision motion control:Yaskawa CACR-HR03BBY75 employs advanced PID(Proportional-Integral-Derivative)algorithms to achieve positioning accuracy within±0.01mm,critical for applications like PCB(Printed Circuit Board)drilling.This level of precision ensures consistent product quality,even at high speeds,by minimizing positional errors during rapid start-stop cycles.
300W power with efficiency:Delivering 300W of rated power,Yaskawa CACR-HR03BBY75 strikes a balance between performance and energy efficiency,with conversion efficiency exceeding 90%at full load.This reduces energy consumption in continuous-operation equipment,such as automated conveyor systems,lowering long-term operational costs.
Robust protection mechanisms:Equipped with comprehensive safeguards,Yaskawa CACR-HR03BBY75 protects against overcurrent,overheating,and encoder faults,preventing damage to itself and connected motors.In industrial environments with voltage fluctuations,its overvoltage/undervoltage protection ensures stable operation,reducing the risk of unexpected shutdowns.
Easy integration:Compatible with Yaskawa’s SGMJV series 300W servo motors,Yaskawa CACR-HR03BBY75 requires minimal configuration for plug-and-play operation.It supports standard control signals,simplifying retrofits in older systems—an electronics manufacturer reported cutting setup time by 40%when upgrading from a legacy drive.
Application Field
In electronic manufacturing,Yaskawa CACR-HR03BBY75 drives the precise movements of component placement machines,ensuring tiny SMD(Surface Mount Device)components are placed on PCBs with sub-millimeter accuracy.Its fast response to control signals allows these machines to handle high throughput,critical for meeting production deadlines in smartphone or circuit board factories.
Packaging machinery benefits from Yaskawa CACR-HR03BBY75’s speed control capabilities,particularly in labeling systems.It regulates the rotation of label applicators,ensuring labels align perfectly with product surfaces—whether on bottles,boxes,or cans—reducing waste from misaligned labels and improving packaging aesthetics.
Automated assembly stations rely on Yaskawa CACR-HR03BBY75 to control robotic arms in light-load tasks,such as screw tightening or part insertion.Its torque control mode prevents over-tightening of delicate components,a common issue in medical device assembly,where excessive force can damage sensitive parts.
Related Products
Yaskawa CACR-HR02BBY75:A 200W variant of Yaskawa CACR-HR03BBY75,suitable for lighter loads like small conveyor belts or precision pumps.
Yaskawa CACR-HR05BBY75:A 500W model,offering higher power than Yaskawa CACR-HR03BBY75 for applications such as small material handling robots.
Yaskawa SGMJV-03ADE6S:A 300W servo motor,perfectly paired with Yaskawa CACR-HR03BBY75 for optimal performance and compatibility.
Yaskawa JUSP-OP03A:A programming cable designed to connect Yaskawa CACR-HR03BBY75 to a PC,facilitating parameter setup and firmware updates.
Yaskawa JVOP-182:A handheld programmer for on-site configuration of Yaskawa CACR-HR03BBY75,allowing quick adjustments without a computer.
Installation and Maintenance
Pre-installation preparation:Before installing Yaskawa CACR-HR03BBY75,verify the input voltage matches the 200-240V AC requirement and ensure the mounting surface is clean,dry,and free from excessive vibration.Check that the DIN rail is securely fastened to support the drive’s weight.Prepare shielded cables for signal connections to minimize electromagnetic interference(EMI)from nearby equipment,and confirm compatibility with the connected servo motor model.
Maintenance recommendations:Inspect Yaskawa CACR-HR03BBY75 quarterly for loose connections,as vibration can loosen terminals over time,causing signal instability.Clean the drive’s surface and heat sink with compressed air to remove dust,which can impede散热(heat dissipation).Monitor the status indicators—steady green indicates normal operation,while red flashes signal faults(refer to the manual for troubleshooting).For persistent issues,reset parameters to factory defaults before reconfiguring,as misconfiguration is a common cause of performance issues.
Product Guarantee
Yaskawa CACR-HR03BBY75 is backed by a 12-month warranty from the date of installation,covering defects in materials and workmanship under normal operating conditions.Our technical support team provides assistance with installation,configuration,and troubleshooting,ensuring optimal performance of Yaskawa CACR-HR03BBY75 in your system.We stand behind the quality of this servo drive,offering prompt replacements or repairs for covered issues,and ensuring access to genuine spare parts to minimize downtime.
