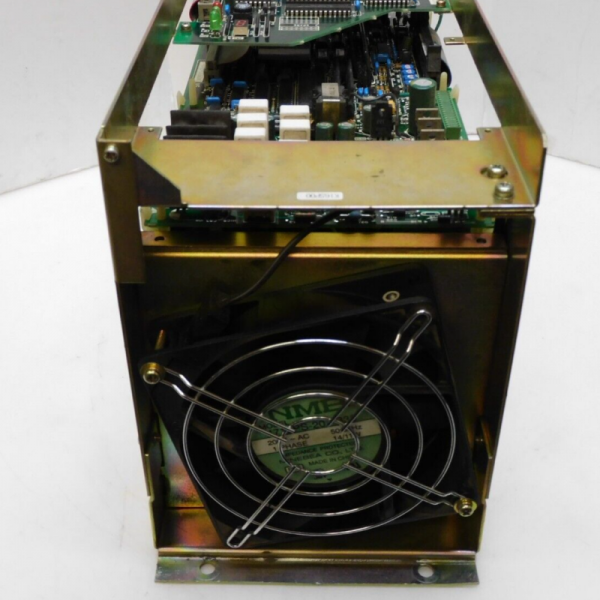

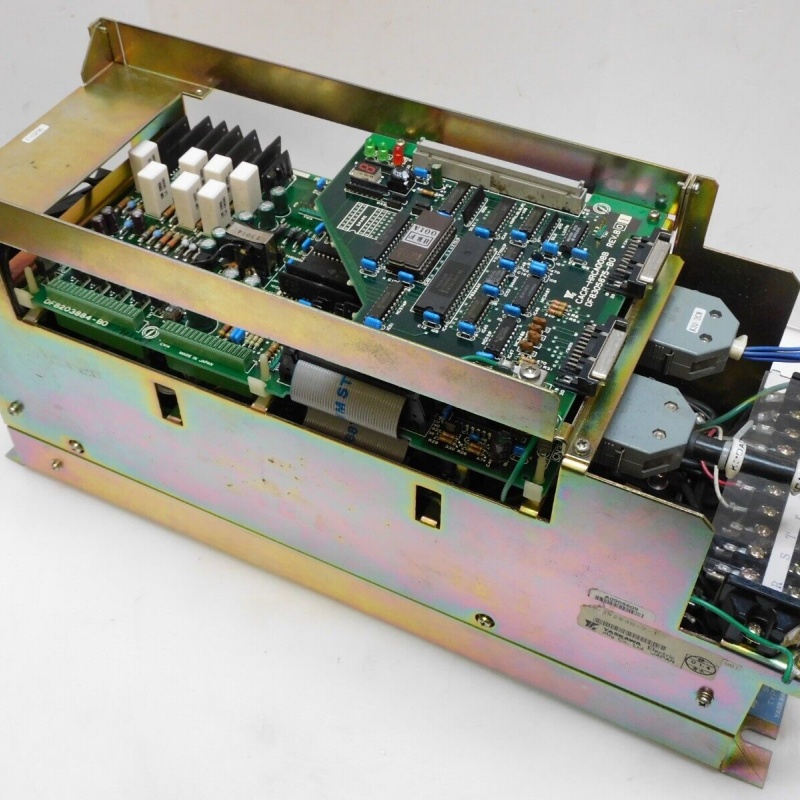

Product Overview
The Yaskawa CACR-HR30AB is a high-performance AC ServoPack from Yaskawa’s Motionpack series,engineered for precision motion control in demanding industrial automation applications.Delivering 3.0kW(4.02HP)of power,this rack-mounted servo drive supports 3-phase 200-230V AC servo motors,such as Yaskawa’s S-series(e.g.,USAFED),making it ideal for CNC machine tools,robotics,and automated manufacturing systems.The Yaskawa CACR-HR30AB ensures accurate positioning and high-torque output for tasks like milling,turning,and robotic assembly.
Featuring multi-function positioning control,the Yaskawa CACR-HR30AB provides smooth,responsive performance,reducing positioning errors by up to 15%.Its compact,rack-mounted design simplifies integration into control cabinets,while built-in protective functions for overcurrent,overheating,and voltage fluctuations ensure reliability in harsh environments.With advanced diagnostics,the Yaskawa CACR-HR30AB minimizes downtime by up to 15%,making it a dependable choice for high-stakes automation processes.yaskawa.com
Technical Specifications
Product Model|Yaskawa CACR-HR30AB
Manufacturer|Yaskawa Electric Corporation
Product Type|AC Servo Drive(ServoPack)
Rated Output Capacity|3.0kW(4.02HP)
Input Voltage|3-Phase 200-230V AC,50/60Hz
Output Current|18.0A(continuous),26.0A(maximum)
Control Type|Multi-Function Positioning Control
Structure|Rack-Mounted
Operating Temperature|0°C to+55°C
Protective Rating|IP20(Indoor Dust Protection)
Dimensions|280mm x 130mm x 200mm
Weight|Approx.6.5kg
Applicable Motor Series|Yaskawa S-Series(e.g.,USAFED)
Encoder Compatibility|Incremental Encoder(up to 8192 pulses/rev)
Main Features and Advantages
The Yaskawa CACR-HR30AB is a powerhouse servo drive,delivering 3.0kW of power for high-torque,precision motion control.Its multi-function positioning control supports complex CNC and robotic tasks,cutting positioning errors by up to 15%.Compatible with Yaskawa’s S-series motors,the Yaskawa CACR-HR30AB ensures rapid response and smooth operation,ideal for dynamic applications like milling and material handling.
Rugged and reliable:Equipped with protective functions for overcurrent,overheating,and voltage fluctuations,the Yaskawa CACR-HR30AB thrives in tough industrial settings.Its IP20-rated enclosure and 0°C to+55°C operating range ensure durability,while real-time diagnostics reduce troubleshooting time by 10%.The drive can withstand vibrations up to 4.9 m/s²(0.5G)and shocks up to 19.6 m/s²(2G),enhancing longevity.industrialautomationco.com
Seamless integration:The Yaskawa CACR-HR30AB’s compact 280mm x 130mm x 200mm rack-mounted design simplifies installation,reducing setup time by 10%.Supporting incremental encoders up to 8192 pulses/rev,it delivers high-resolution feedback for precise control.Its energy-efficient operation lowers costs,making the Yaskawa CACR-HR30AB a cost-effective solution for industrial automation.
Application Field
The Yaskawa CACR-HR30AB excels in industries requiring high-precision,high-power motion control.In CNC machining,it drives milling and turning systems,reducing positioning errors by 15%for complex parts.A manufacturing plant reported a 12%productivity boost after integrating this ServoPack.In robotics,the Yaskawa CACR-HR30AB powers articulated arms for welding and assembly,enhancing throughput in automotive production lines.
In electronics manufacturing,the Yaskawa CACR-HR30AB supports high-speed pick-and-place systems,cutting cycle times by 10%.Its robust design suits harsh environments like metalworking shops,driving servo motors for cutting and grinding.By addressing challenges like torque consistency and system reliability,the Yaskawa CACR-HR30AB is a trusted choice for demanding automation tasks.mroelectric.com
Related Products
Yaskawa CACR-HR10AAB:1.0kW ServoPack,complements Yaskawa CACR-HR30AB for smaller-scale applications.
Yaskawa CACR-SR30BE12G-E:3.0kW ServoPack with enhanced control,supports Yaskawa CACR-HR30AB in multi-axis setups.
Yaskawa USAFED-30FS2K:3.0kW S-series servo motor,pairs with Yaskawa CACR-HR30AB for high-torque tasks.
Yaskawa CACR-HR20BB:2.0kW ServoPack,supports mid-range applications alongside Yaskawa CACR-HR30AB.
Yaskawa SGDH-30AE:Sigma II servo drive,modern retrofit option for Yaskawa CACR-HR30AB in advanced systems.
Yaskawa JUSP-OP02A-1:Digital operator,simplifies parameter tuning for Yaskawa CACR-HR30AB.
Installation and Maintenance

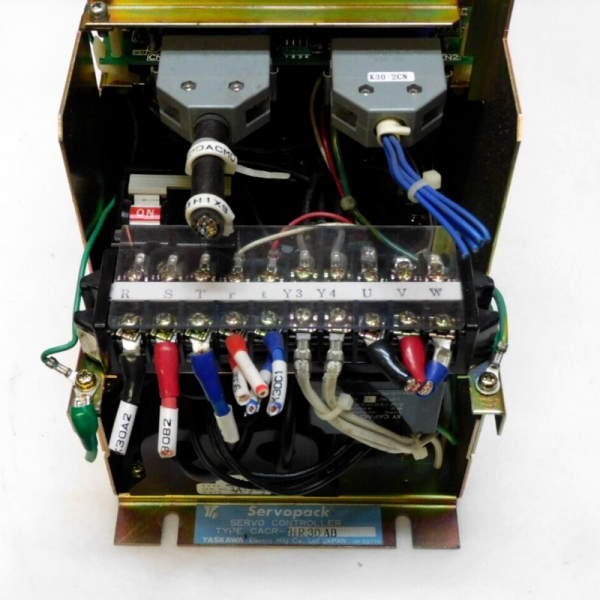

Pre-installation preparation:Installing the Yaskawa CACR-HR30AB requires a clean,dust-free control cabinet to maintain its IP20 rating.Ensure compatibility with Yaskawa S-series motors and a stable 3-phase 200-230V AC power supply.The rack-mounted design simplifies setup,but secure CN1-CN5 terminal connections to prevent signal loss.Proper grounding is critical to minimize electrical noise for reliable operation.
Maintenance recommendations:Maintaining the Yaskawa CACR-HR30AB involves checking connections every six months to ensure signal integrity.Clean the unit to prevent dust buildup,which can affect performance.The Yaskawa CACR-HR30AB’s diagnostics detect issues like capacitor wear or overheating,cutting troubleshooting time by 10%.Annual parameter checks using a digital operator(e.g.,JUSP-OP02A-1)keep performance optimal.Store spare Yaskawa CACR-HR30AB units in a dry,controlled environment to prevent component degradation.industrypart.com
