product overview

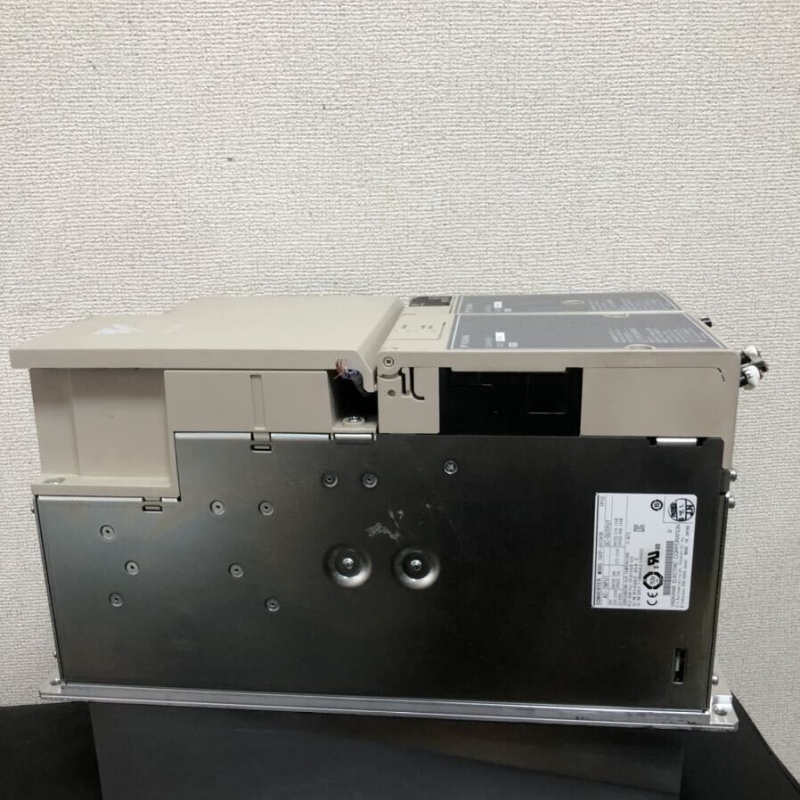

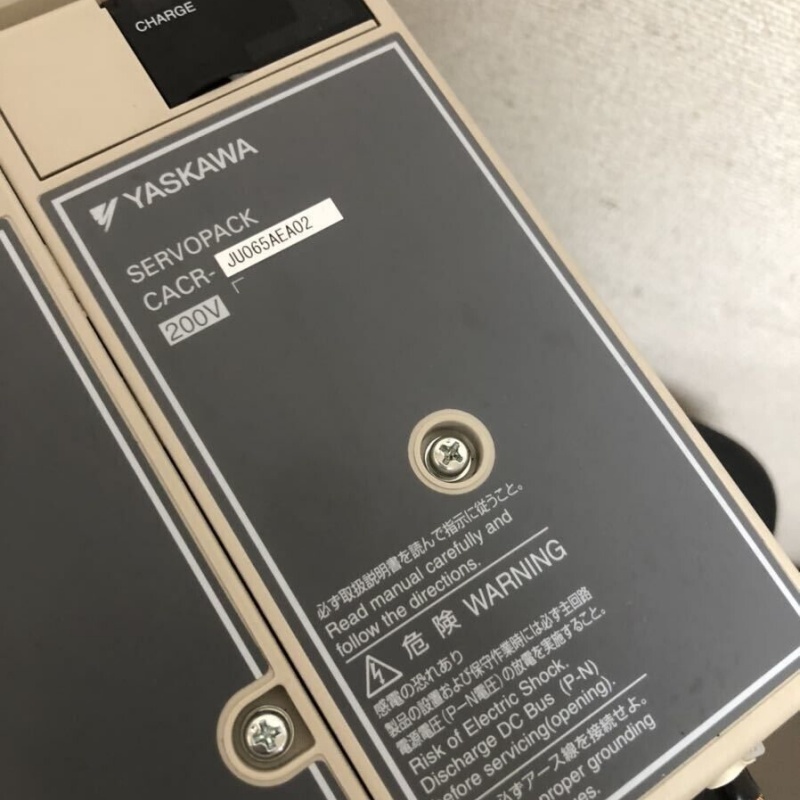

YASKAWA CACR-JU065AEA02 is a high-performance AC servo drive that is part of Yaskawa Electric Corporation’s highly acclaimed Sigma-V Series servo system.This driver is designed specifically for precision motion control and is widely used in CNC machine tools,robot systems,automatic assembly lines,and other industrial scenarios that require high-precision positioning and dynamic response.
CACR-JU065AEA02 supports multiple control modes,including pulse command position control,analog speed/torque control,and can be optionally equipped with communication protocols such as Modbus RTU,making it easy to integrate with upper level systems such as PLC and CNC controllers.It supports multiple feedback types,such as incremental encoders,rotary transformers,absolute value encoders,etc.,ensuring its flexibility and adaptability in different application environments.
This drive has excellent thermal management capabilities and built-in protection functions,which can maintain stable performance under high-intensity operation and effectively extend its service life.Whether in high-speed cutting,multi axis coordinated motion,or precision fine-tuning tasks,CACR-JU065AEA02 can provide excellent control accuracy and stability,and is a key component in modern intelligent manufacturing systems.
Technical Parameter
Parameter Name Specification
Product model CACR-JU065AEA02
Manufacturer Yaskawa Electric Corporation
Product type:AC servo drive/axis control module
Series∑-V Series Servo System
Input voltage 200-230 V AC
Output power 0.65 kW
Control mode pulse position control,analog speed/torque control
Feedback interface incremental encoder,rotary transformer,absolute value encoder
Communication interface optional:Modbus RTU
Working temperature:0°C to+55°C
Installation method:DIN rail or panel installation
Cooling method:forced air cooling
Protection function for overcurrent,overvoltage,undervoltage,and overheating detection
Certification standards CE,UL,RoHS
Main features and advantages
High precision motion control
CACR-JU065AEA02 provides micrometer level position control accuracy,suitable for manufacturing processes such as laser cutting,PCB drilling,and medical equipment assembly that require extremely high precision.Its advanced control algorithm can minimize tracking error and maintain stable operation even when the load changes.
Diversified feedback compatibility
This driver supports encoders,rotary transformers,and absolute position feedback systems,allowing it to flexibly adapt to servo motors from Yaskawa and other manufacturers.This broad compatibility makes it suitable for new project deployment and old equipment retrofitting.
Multiple control modes to choose from
Supports pulse input,analog command signals,and optional Modbus RTU communication interface,allowing engineers to choose the most suitable control scheme based on the system architecture,suitable for various upper computer systems such as PLC and CNC controllers.
Built in security and protection mechanisms
CACR-JU065AEA02 includes multiple safety functions such as overcurrent,undervoltage,overtemperature,and short circuit protection,which help prevent hardware damage,improve system availability,and reduce unexpected downtime.
User friendly configuration tool
Through the DriveWorksEZ software platform provided by Yaskawa,users can easily complete parameter settings,fault diagnosis,and firmware updates,simplify debugging processes,and reduce maintenance complexity.
Compact and efficient design
Despite its powerful performance,CACR-JU065AEA02 adopts a compact structural design,making it easy to install in control cabinets with limited space.Its efficient cooling system ensures reliable operation even in harsh industrial environments.
application area
CACR-JU065AEA02 is widely used in the following industrial scenarios:
CNC machine tool:used for precise control of X/Y/Z axes,achieving high-speed cutting and complex contour machining.
Electronic manufacturing equipment:such as chip placement machines,wire bonding machines,testing equipment,etc.,to achieve high-precision component positioning.
Packaging machinery:used for synchronous control of conveyor belts,labeling machines,and filling systems to improve production efficiency.
Printing equipment:precise control of tension and printing register to ensure high-quality output.
Robot system:used for joint control of collaborative robots,assembly robots,and handling robots.
Medical equipment:used for micro motion control of precision instruments such as surgical robots,analyzers,and microscope platforms.
Due to its high flexibility and reliability,CACR-JU065AEA02 has become the preferred drive module for many engineers in multi axis motion control applications.
Related product recommendations
Yaskawa SGDV-065E01A:belongs to the∑-V series,with similar power but different wiring methods,using terminal blocks instead of connectors.
Yaskawa CACR-JU100AEA02:Higher power version,suitable for larger motors and more complex motion requirements.
Yaskawa MP2000IEC controller:a multi axis central controller used in conjunction with CACR-JU065AEA02.
Yaskawa SGMCS servo motor:often used in conjunction with this drive,suitable for direct drive and high-speed response applications.
Yaskawa DriveWorksEZ software:a graphical interface for quick configuration,debugging,and monitoring of drive operating status.
Yaskawa CACR-MR065AEA:Early model,physically compatible,commonly used for replacement and upgrade.
Yaskawa CIMR-VFAC21:Non servo frequency converter,sometimes used in combination with CACR-JU065AEA02 in hybrid control systems.
Installation and maintenance recommendations
Preparation before installation
Before installing CACR-JU065AEA02,please confirm that the power supply voltage meets the 200-230 V AC standard;Check if the internal temperature of the control cabinet is between 0°C and+55°C,and ensure sufficient ventilation to support forced air cooling;Confirm that all motor and encoder cables meet the driver specifications and are properly grounded.
Maintenance suggestions
Regularly check the drive for dust accumulation and clean the heat sink if necessary to maintain good heat dissipation performance.Observe the LED indicator lights on the front panel to promptly detect fault prompts such as overheating and communication errors.Use tools such as DriveWorksEZ for periodic monitoring of current,encoder signals,and system health status.Update firmware as needed to ensure compatibility and performance optimization.
