Product Overview

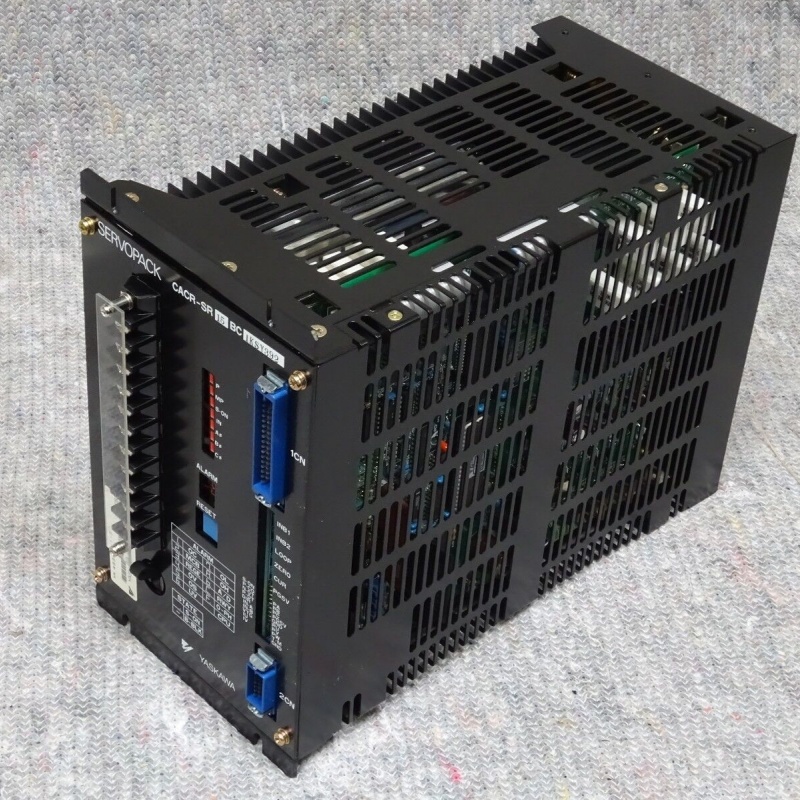

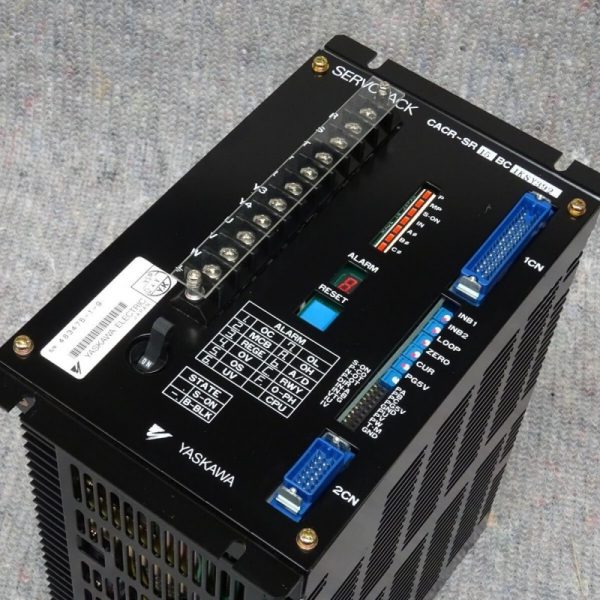

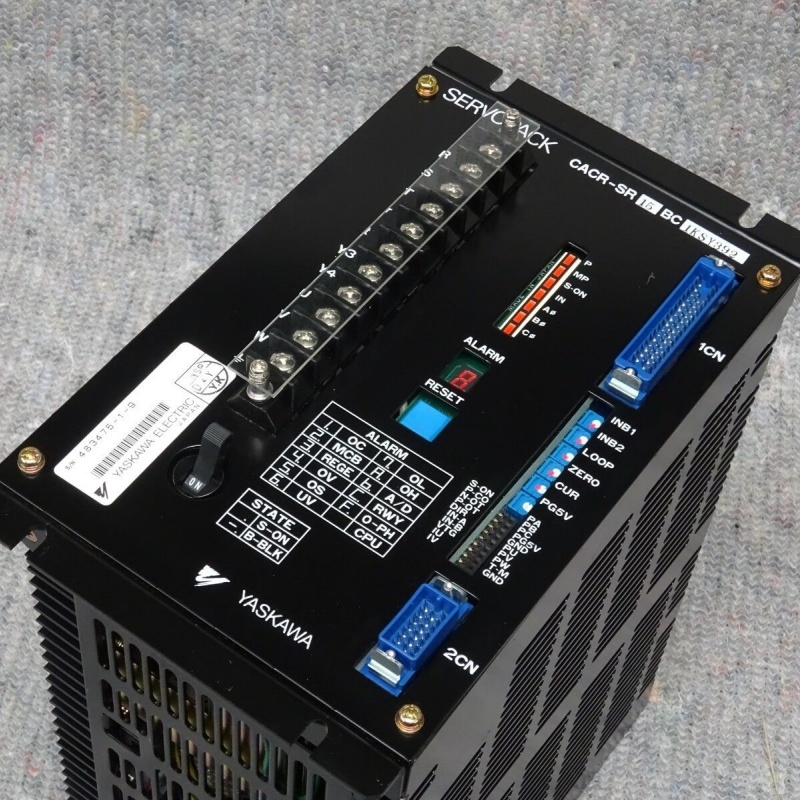

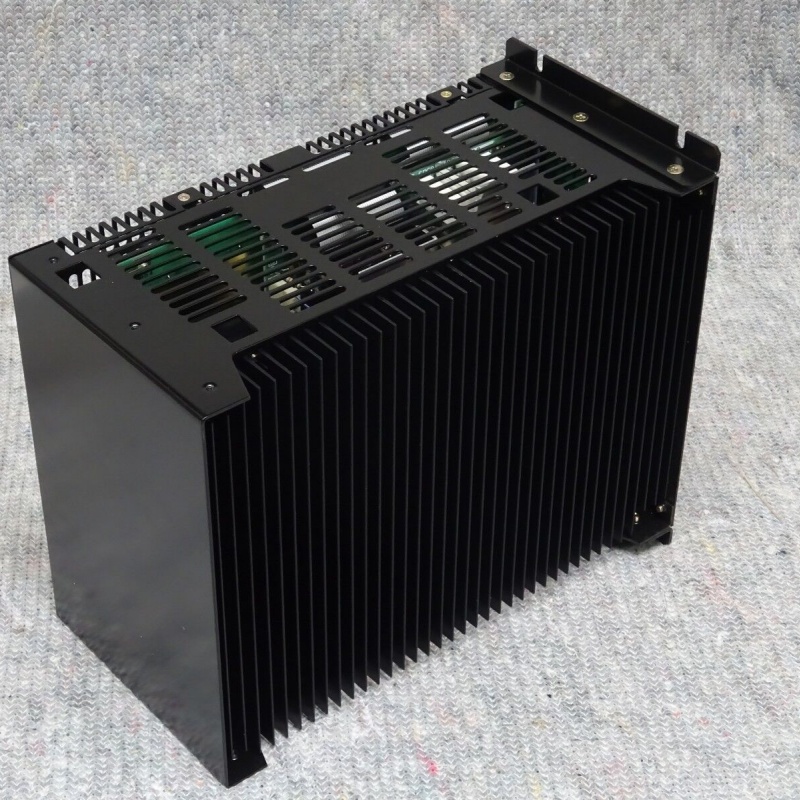

The YASKAWA CACR-SR15BC1KSY392 is a high-quality servopack(servo drive)developed by YASKAWA,a renowned leader in motion control technology.With a rated output power of 1.5KW and designed to operate on 200VAC input,this single-axis servo drive is engineered to deliver precise control over speed,torque,and position in a wide range of industrial automation applications.
As part of YASKAWA’s trusted servo drive series,the YASKAWA CACR-SR15BC1KSY392 integrates cutting-edge control algorithms and durable hardware,ensuring smooth and accurate motion performance.It pairs seamlessly with compatible YASKAWA servo motors,forming a complete motion control system that enhances production efficiency,reduces setup time,and improves overall operational stability.The YASKAWA CACR-SR15BC1KSY392 is widely applied in industries such as automotive parts manufacturing,electronics assembly,and precision packaging,thanks to its reliable performance and adaptability to various working conditions.
Technical Specifications
Parameter Name
Parameter Value
Product Model
YASKAWA CACR-SR15BC1KSY392
Manufacturer
YASKAWA Electric Corporation
Product Type
AC Servopack/Servo Drive
Rated Output Power
1.5KW
Input Voltage
Single-phase 200-240V AC,50/60Hz
Output Current
9A(rms)
Axis Configuration
Single axis
Control Methods
Position,speed,torque control
Communication Interface
RS-485(Modbus RTU),optional fieldbus
Operating Temperature
0℃-55℃
Storage Temperature
-20℃-65℃
Dimensions(W×H×D)
80mm×160mm×140mm(approximate)
Weight
Approximately 1.8kg
Protection Features
Overcurrent,overvoltage,undervoltage,overload,overheating,encoder error,short circuit
Control Resolution
1,000,000 pulses/rev(pulse train input)
Response Frequency
3.5kHz
Operating Humidity
20%-80%RH(non-condensing)
Installation Method
DIN rail or panel mounting
Protection Class
IP20(when properly installed)
Certifications
CE,UL,cUL
Main Features and Advantages
High-precision motion control:The YASKAWA CACR-SR15BC1KSY392 adopts a high-resolution feedback mechanism and advanced PID control algorithm with feedforward compensation,achieving positioning accuracy within±0.01mm in precision machining applications.This ensures consistent product quality and reduces rework rates in manufacturing processes.
Robust overload capacity:With a 200%overload capacity for 3 seconds,the YASKAWA CACR-SR15BC1KSY392 can handle sudden load fluctuations,making it suitable for applications with intermittent heavy loads,such as material lifting and positioning systems.This feature enhances system reliability and reduces downtime caused by overload-related faults.
Energy-saving performance:The YASKAWA CACR-SR15BC1KSY392 is equipped with regenerative braking technology that recovers energy during deceleration and feeds it back to the power grid,reducing energy consumption by up to 15%compared to traditional servo drives in cyclic operation scenarios.This helps industrial facilities lower their energy costs and meet environmental protection requirements.
Simplified integration:Featuring multiple input/output interfaces and flexible communication options,the YASKAWA CACR-SR15BC1KSY392 can easily integrate with various PLCs,HMIs,and automation systems.Its plug-and-play design and user-friendly configuration software reduce setup time by up to 30%,enabling quick deployment in production lines.
Enhanced environmental adaptability:The YASKAWA CACR-SR15BC1KSY392 is designed to withstand harsh industrial environments,with strong resistance to electromagnetic interference and vibration.This ensures stable operation even in environments with high levels of electrical noise,such as near large motors or welding equipment.
Application Field
In automotive parts manufacturing,the YASKAWA CACR-SR15BC1KSY392 is widely used in robotic welding stations,where it controls the movement of welding torches with high precision.This ensures consistent weld quality and reduces welding defects by up to 25%,improving the overall quality of automotive components.
In electronics assembly lines,the YASKAWA CACR-SR15BC1KSY392 controls the motion of component insertion machines,enabling accurate placement of electronic components onto circuit boards.Its high positioning accuracy ensures that even tiny components(as small as 0.4mm×0.2mm)are placed correctly,increasing assembly yields by an average of 18%.
In packaging machinery,the YASKAWA CACR-SR15BC1KSY392 regulates the speed and position of conveyor belts and packaging heads,ensuring precise filling and sealing of products.In food packaging applications,it has improved packaging accuracy,reducing material waste by 12%and increasing production efficiency by 20%.Additionally,it is used in material handling systems to control the movement of automated guided vehicles(AGVs),ensuring smooth and accurate transportation of goods in warehouses.
Related Products
YASKAWA SGMAS-15ACA41:A 1.5KW servo motor perfectly matched with YASKAWA CACR-SR15BC1KSY392 for a complete motion control solution.
YASKAWA CACR-SR10BC1KSY392:A 1.0KW servo drive in the same series,suitable for applications requiring lower power than YASKAWA CACR-SR15BC1KSY392.
YASKAWA CACR-SR20BC1KSY392:A 2.0KW servo drive with higher power output than YASKAWA CACR-SR15BC1KSY392 for more demanding applications.
YASKAWA JUSP-OP05A:A programming cable used to connect a PC to YASKAWA CACR-SR15BC1KSY392 for parameter configuration and monitoring.
YASKAWA JVOP-182:A handheld programmer designed for on-site setup and troubleshooting of YASKAWA CACR-SR15BC1KSY392.
YASKAWA SGMPH-15A1A61:A compact 1.5KW servo motor compatible with YASKAWA CACR-SR15BC1KSY392 in space-constrained installations.
YASKAWA CACR-SR15BC1KSY393:An upgraded version of YASKAWA CACR-SR15BC1KSY392 with enhanced communication functions for Industry 4.0 applications.
Installation and Maintenance
Pre-installation preparation:Before installing the YASKAWA CACR-SR15BC1KSY392,ensure the mounting location is clean,dry,and well-ventilated.Verify that the input power supply meets the drive’s requirements(200-240V AC,50/60Hz)and that appropriate circuit protection devices(such as fuses or circuit breakers)are installed.Check all connecting cables for damage,ensuring they are of the correct type and rating for the drive’s current and signal requirements.Also,confirm that the mounting surface can support the weight of the YASKAWA CACR-SR15BC1KSY392 and that there is sufficient space around the drive for heat dissipation.
Maintenance recommendations:The YASKAWA CACR-SR15BC1KSY392 requires minimal maintenance,but regular inspections are essential for optimal performance.Every 6 months,clean the drive’s heat sink with compressed air to remove dust and debris,ensuring efficient heat dissipation.Check all electrical connections for tightness to prevent loose contacts that could cause malfunctions.Monitor the drive’s status indicators for error codes and refer to the user manual for troubleshooting if any issues arise.Avoid exposing the YASKAWA CACR-SR15BC1KSY392 to extreme temperatures,moisture,or corrosive substances,as these can affect its performance and lifespan.For firmware updates,use YASKAWA’s authorized software and follow the recommended procedures to ensure the drive operates correctly.
Product Guarantee
YASKAWA provides a 12-month warranty for the YASKAWA CACR-SR15BC1KSY392 from the date of installation,or 18 months from the date of manufacture,whichever comes first.This warranty covers defects in materials and workmanship under normal operating conditions.YASKAWA’s global technical support team offers professional assistance with installation,configuration,and troubleshooting for the YASKAWA CACR-SR15BC1KSY392,ensuring prompt resolution of any issues.Customers also have access to comprehensive documentation,including user manuals,application guides,and software tools,to facilitate the proper use and maintenance of the servopack.For extended warranty options and additional support services,customers can contact their local YASKAWA representative,ensuring long-term reliability and performance of the YASKAWA CACR-SR15BC1KSY392 in their automation systems.
