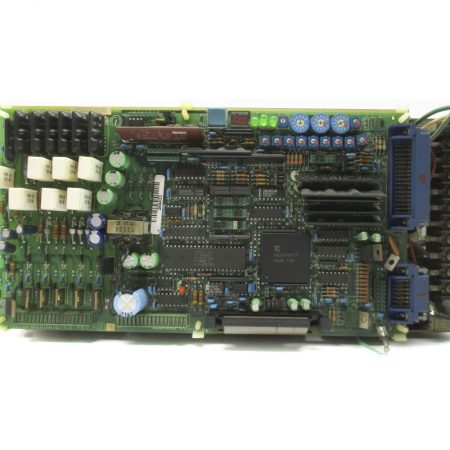

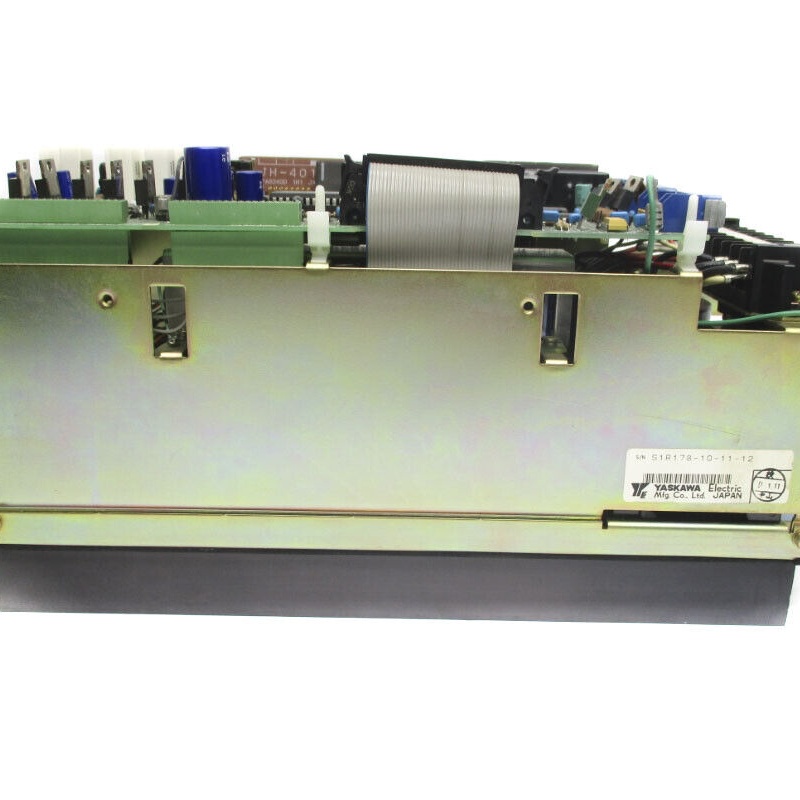

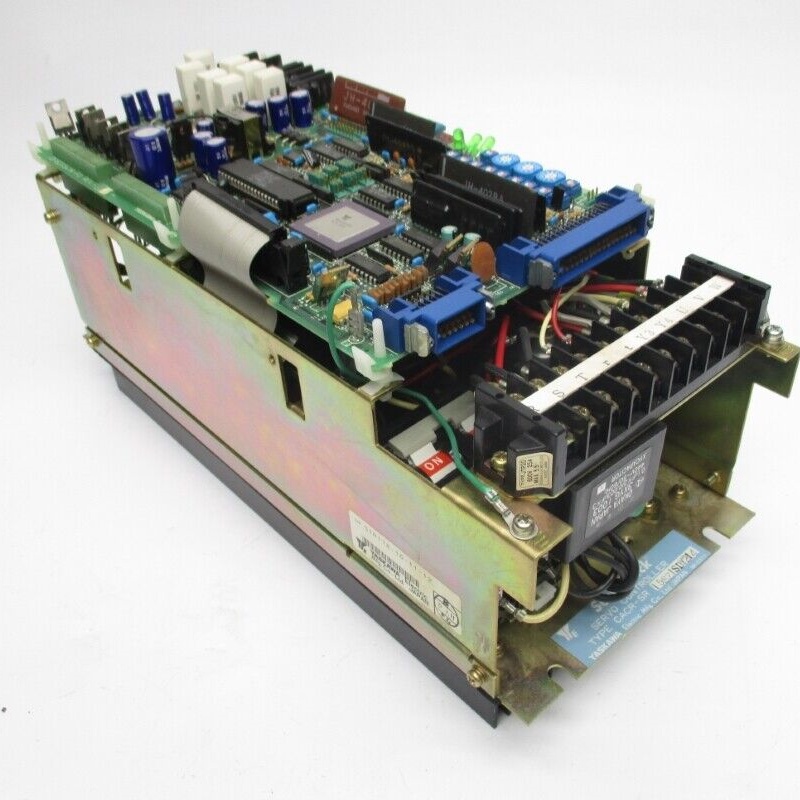

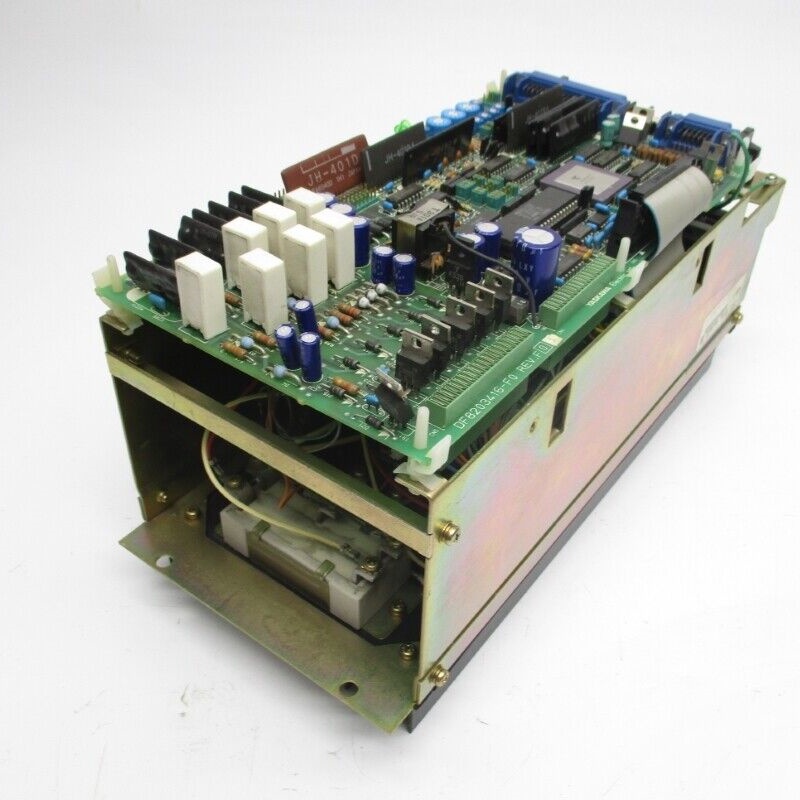

Product model:YASKAWA CACR-SR15SZ1SDY214 NSNP
Manufacturer:YASKAWA(Yaskawa Electric)
Product type:Servo drive module
Series:Σ-7 series
Rated power:1.5 kW
Input voltage:three-phase AC 200V
Output current:7.5 A
Control mode:pulse command+analog command
Communication interface:MECHATROLINK-II
Encoder feedback interface:incremental/absolute value
Protection function:overcurrent,overvoltage,undervoltage,overheating,regeneration abnormality
Installation method:standard DIN rail installation
Protection level:IP20
Operating temperature:0°C to+55°C
Compatible motors:SGMVH,SGMCS series servo motors
YASKAWA CACR-SR15SZ1SDY214 NSNP Product Overview
YASKAWA CACR-SR15SZ1SDY214 NSNP,this thing is not an ordinary driver,it is the”hardcore tough guy”in the YaskawaΣ-7 servo system!Designed for 1.5 kW servo motors,it is used in those occasions that require extremely high precision,response speed,and stability,such as CNC machining centers,six-axis robots,high-speed placement machines,laser cutting equipment,etc.It is a”high-powered”player.
It supports pulse command input and analog control,and can adapt to a variety of control methods.When used with Yaskawa’s own SGMVH or SGMCS series servo motors,the performance is directly maximized.The built-in MECHATROLINK-II bus interface can be easily connected to the PLC system to build a high-speed and stable servo control network.And it comes with a variety of protection functions,such as overcurrent,overvoltage,overheating,and regeneration abnormalities.Once a problem occurs,it will”brake”immediately to avoid equipment damage,and it is a”safety responsibility”.
Whether it is a new project or an old equipment upgrade,YASKAWA CACR-SR15SZ1SDY214 NSNP is an indispensable”hardcore player”in your servo system.
Main features and advantages
The YASKAWA CACR-SR15SZ1SDY214 NSNP driver is simply a”master of precision control”that specializes in solving various problems such as”difficult position control,slow response,and poor accuracy”.It supports an output current of up to 7.5 A,can carry a 1.5 kW servo motor,runs fast,stops accurately,and has accurate positioning accuracy.
It uses the high-performance control algorithm of theΣ-7 series,has fast dynamic response,strong anti-interference ability,and is particularly suitable for equipment with extremely high precision requirements,such as semiconductor manufacturing equipment,laser cutting machines,and high-speed placement machines.The built-in MECHATROLINK-II interface enables high-speed communication with PLC,HMI and other equipment,and builds an automated system with fast response and accurate data.
The most reassuring thing is that it has a complete protection mechanism,and overcurrent,overvoltage,undervoltage,overheating,and regeneration abnormalities can all be automatically identified and alarmed to effectively prevent equipment damage.Modular design,installed on DIN rail,is also convenient for maintenance,and plug-in terminals are easy to replace.
English version description:
The YASKAWA CACR-SR15SZ1SDY214 NSNP is a high-performance servo driver module designed for use in theΣ-7 series servo systems.It delivers precise control for 1.5 kW servo motors,supporting pulse and analog input commands,along with MECHATROLINK-II communication for seamless integration into industrial automation systems.With built-in protection features including overcurrent,overvoltage,undervoltage,overheat,and regenerative error detection,this module ensures reliable and safe operation in demanding environments.Its compact DIN rail design and modular architecture make it ideal for high-precision applications such as CNC machines,robotics,and automated assembly lines.
Application areas
The application range of YASKAWA CACR-SR15SZ1SDY214 NSNP is very wide,covering almost all industrial scenarios that require high-precision servo control.In the machine tool industry,it is often used for feed axis control of CNC machining centers to ensure accurate tool paths.In the field of robotics,it is widely used in the joint control of collaborative robots and six-axis manipulators to achieve high-speed and high-precision positioning.
In electronic manufacturing,YASKAWA CACR-SR15SZ1SDY214 NSNP is often used in equipment such as placement machines,dispensing machines,and soldering machines to ensure component placement and welding accuracy.In the food packaging industry,it is used in equipment such as pillow packaging machines and filling machines to achieve high-speed and synchronous control.In addition,in precision control occasions such as medical equipment,semiconductor manufacturing,and testing equipment,YASKAWA CACR-SR15SZ1SDY214 NSNP also shines and becomes the core drive module of many high-end equipment.
Selection Guide/Purchase Recommendation(Optional)
When choosing YASKAWA CACR-SR15SZ1SDY214 NSNP,first confirm whether your servo motor is matched.It is suitable for 1.5 kW SGMVH or SGMCS series servo motors.Secondly,confirm whether your control system supports the MECHATROLINK-II communication protocol.If not,you may need to configure an additional gateway module.Third,confirm whether the power supply on site is three-phase AC 200V,which is the standard input voltage of the drive.Finally,consider whether redundant configuration is required.If your system has extremely high requirements for stability,it is recommended to use it with Yaskawa’s redundant controller.
Related products
YASKAWA CACR-SR12 TZ6SM AC:1.2 kW servo drive of the same series,suitable for small and medium power control scenarios.
YASKAWA CACR-SR15SZ1SDY214 NSNN:DC input version,suitable for special power supply environments.
YASKAWA SGMVH-16A2C:Equipped with 1.5 kW servo motor,it is often used in high-precision positioning scenarios.
YASKAWAΣ-7 controller:A servo control platform that perfectly matches the YASKAWA CACR-SR15SZ1SDY214 NSNP.
YASKAWA MECHATROLINK-II communication card:used for high-speed communication connection between PLC and servo drive.
Installation and maintenance
Preparation before installation:Before installing YASKAWA CACR-SR15SZ1SDY214 NSNP,be sure to turn off the power to ensure personal and equipment safety.Prepare DIN rails,wiring tools and shielded cables,check whether the power supply voltage is three-phase AC 200V,and confirm that the grounding is good.The drive is plug-in installed,plug it into the corresponding rail and fix the screws.
Maintenance suggestions:During daily maintenance,it is recommended to regularly check the LED status indicator of the module to confirm whether the communication and operation status are normal.If an alarm or abnormality is found,first check whether the wiring is loose and whether the shielding is good.Keep the control cabinet ventilated and dry to avoid high temperature and high humidity affecting the life of the module.Use a multimeter regularly to check whether the input voltage is stable to prevent failures due to voltage fluctuations.
Product Guarantee
YASKAWA CACR-SR15SZ1SDY214 NSNP are all original products,supporting global joint warranty,and can be replaced free of charge during the warranty period if it is not damaged by human factors.We,Shenzhen Changxin,click to visit the official website,focusing on industrial control spare parts for 20 years,with sufficient spare parts inventory,short delivery cycle,and fast after-sales response.We are your reliable partner for industrial automation spare parts procurement.Whether you are using it for equipment upgrades,fault replacement,or new project construction,we can provide you with professional support and quality assurance,so that you can buy with confidence and use with peace of mind.
English version of the warranty description:
At Shenzhen Changxin Technology Co.,Ltd.,we specialize in high-quality industrial automation components,including the YASKAWA CACR-SR15SZ1SDY214 NSNP servo drive module.All our products are original factory-new or certified refurbished,with full technical support and warranty coverage.We offer fast delivery,global compatibility,and expert after-sales service to ensure your automation systems run smoothly.Whether you’re upgrading legacy equipment or deploying new motion control architectures,we’re here to support your success.Contact us today and let us help you keep your production lines running without interruption.
