Product Overview

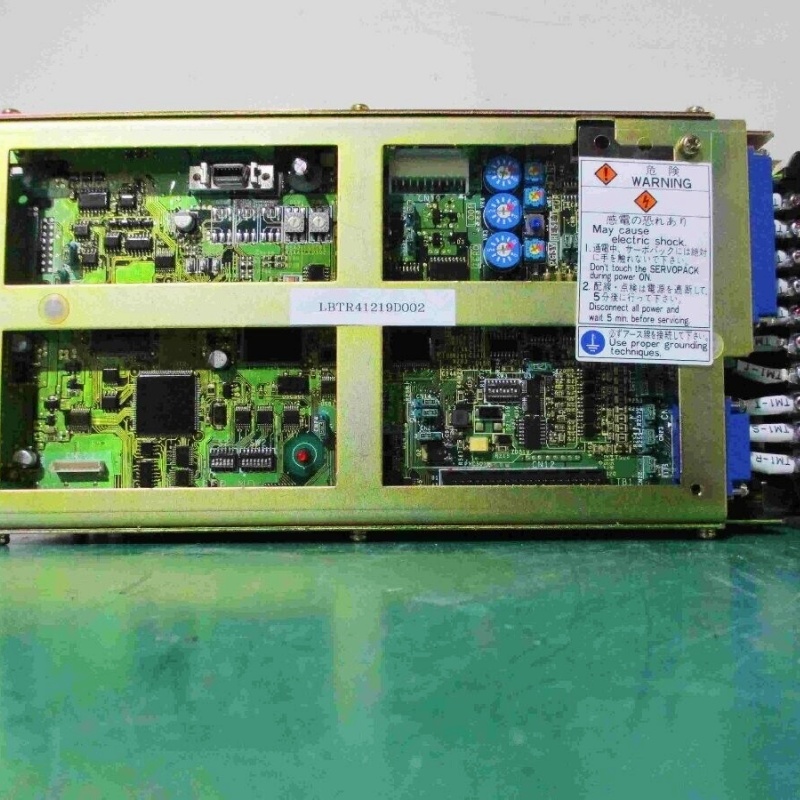

The YASKAWA CACR-SR20BF13FE-Y8 is a high-performance AC servo drive designed by YASKAWA,a leading manufacturer in motion control technology.With a rated output power of 2.0KW and operating on 200VAC input,this single-axis servopack is engineered to deliver precise control over speed,torque,and position in industrial automation systems.
As part of YASKAWA’s esteemed servo drive lineup,the YASKAWA CACR-SR20BF13FE-Y8 integrates advanced control algorithms and robust hardware to ensure smooth and accurate motion,making it an essential component in applications where precision and reliability are critical.It seamlessly pairs with compatible YASKAWA servo motors,forming a complete motion control solution that enhances productivity,reduces setup time,and improves overall system performance.The YASKAWA CACR-SR20BF13FE-Y8 is widely utilized in diverse industries,including electronics manufacturing,packaging,and material processing,thanks to its versatility and consistent performance.
Technical Specifications
Parameter Name
Parameter Value
Product Model
YASKAWA CACR-SR20BF13FE-Y8
Manufacturer
YASKAWA Electric Corporation
Product Type
AC Servo Drive/Servopack
Rated Output Power
2.0KW
Input Voltage
Single-phase 200-240V AC,50/60Hz
Output Current
12A(rms)
Axis Configuration
Single axis
Control Methods
Position,speed,torque control
Communication Interface
RS-485(Modbus RTU),optional Ethernet
Operating Temperature
0℃-55℃
Storage Temperature
-20℃-65℃
Dimensions(W×H×D)
90mm×180mm×150mm(approximate)
Weight
Approximately 2.2kg
Protection Features
Overcurrent,overvoltage,undervoltage,overload,overheating,encoder error,short circuit,ground fault
Control Resolution
1,000,000 pulses/rev(pulse train input)
Response Frequency
4kHz
Operating Humidity
20%-80%RH(non-condensing)
Installation Method
DIN rail or panel mounting
Protection Class
IP20(when properly installed)
Certifications
CE,UL,cUL
Main Features and Advantages
Enhanced motion precision:The YASKAWA CACR-SR20BF13FE-Y8 utilizes a high-resolution feedback system and advanced PID control with feedforward compensation,achieving positioning accuracy within±0.005mm in precision assembly applications.This level of precision ensures consistent product quality and reduces waste in manufacturing processes.
Adaptive vibration suppression:Equipped with specialized vibration suppression technology,the YASKAWA CACR-SR20BF13FE-Y8 minimizes mechanical resonance and vibration during high-speed motion.This feature is particularly beneficial in delicate operations such as semiconductor wafer handling,where excessive vibration can damage sensitive components,reducing defect rates by up to 30%.
Energy-efficient design:The YASKAWA CACR-SR20BF13FE-Y8 incorporates regenerative energy recovery,which captures and reuses energy generated during deceleration.This technology reduces overall power consumption by up to 18%compared to conventional drives in cyclic operations,lowering operational costs for industrial facilities.
Flexible connectivity:With multiple communication options,including RS-485 and optional Ethernet,the YASKAWA CACR-SR20BF13FE-Y8 easily integrates into various automation networks.This allows for seamless data exchange with PLCs,HMIs,and upper-level control systems,simplifying system monitoring,parameter adjustment,and remote diagnostics.
User-centric configuration:The servo drive features an intuitive setup process via YASKAWA’s dedicated programming software,enabling quick parameter configuration and system tuning.Its auto-tuning function automatically optimizes control parameters based on the connected load,eliminating the need for manual calibration and reducing commissioning time by up to 40%.
Application Field
In electronics manufacturing,the YASKAWA CACR-SR20BF13FE-Y8 is widely used in printed circuit board(PCB)assembly machines,where it controls the movement of component placement heads with exceptional precision.This ensures accurate placement of tiny surface-mount devices,reducing misalignment issues and improving production yields by an average of 22%.
In packaging machinery,the YASKAWA CACR-SR20BF13FE-Y8 regulates the motion of filling nozzles and sealing mechanisms,enabling precise control over filling volumes and seal quality.Its fast response to speed changes allows packaging lines to handle varying container sizes efficiently,increasing throughput by 25%in food and pharmaceutical packaging applications.
The YASKAWA CACR-SR20BF13FE-Y8 also plays a crucial role in material processing equipment,such as laser cutting machines,where it controls the movement of the laser head.Its high positioning accuracy ensures clean and precise cuts,reducing material waste by 15%and improving the quality of finished products.Additionally,it is utilized in robotic arms for material handling,providing smooth and accurate motion that enhances the efficiency of warehouse automation systems.
Related Products
YASKAWA SGMAS-20ACA41:A 2.0KW servo motor specifically designed to pair with YASKAWA CACR-SR20BF13FE-Y8 for optimal performance.
YASKAWA CACR-SR10BF13FE-Y8:A 1.0KW servo drive in the same series,suitable for lower-power applications than YASKAWA CACR-SR20BF13FE-Y8.
YASKAWA CACR-SR30BF13FE-Y8:A 3.0KW servo drive offering higher power capacity than YASKAWA CACR-SR20BF13FE-Y8 for more demanding tasks.
YASKAWA JUSP-OP03A:A programming cable that connects a PC to YASKAWA CACR-SR20BF13FE-Y8 for configuration and monitoring.
YASKAWA JVOP-181:A handheld programmer designed for on-site setup,parameter adjustment,and troubleshooting of YASKAWA CACR-SR20BF13FE-Y8.
YASKAWA SGMPH-20A1A4C:A compact 2.0KW servo motor compatible with YASKAWA CACR-SR20BF13FE-Y8 in space-constrained applications.
YASKAWA CACR-SR20BF13FE-Y9:An upgraded version of YASKAWA CACR-SR20BF13FE-Y8 with enhanced communication protocols for advanced industrial networks.
Installation and Maintenance
Pre-installation preparation:Before installing the YASKAWA CACR-SR20BF13FE-Y8,ensure the mounting area is clean,dry,and free from excessive vibration or electromagnetic interference.Verify that the input power supply matches the drive’s requirements(200-240V AC,50/60Hz)and that appropriate circuit protection(fuses or circuit breakers)is installed.Check all connecting cables for damage,ensuring they are rated for the drive’s current and signal types.Confirm that the mounting surface can support the weight of the YASKAWA CACR-SR20BF13FE-Y8 and that there is adequate space around the drive for ventilation to maintain optimal operating temperatures.
Maintenance recommendations:The YASKAWA CACR-SR20BF13FE-Y8 is designed for minimal maintenance,but regular inspections are advised.Every six months,clean the drive’s heat sink using compressed air to remove dust and debris,ensuring efficient heat dissipation.Check all electrical connections for tightness to prevent loose contacts that could cause operational issues.Monitor the drive’s status indicators for error codes and refer to the user manual for troubleshooting guidance if faults occur.Avoid exposing the YASKAWA CACR-SR20BF13FE-Y8 to extreme temperatures,moisture,or corrosive environments,as these can degrade performance.For firmware updates,use YASKAWA’s authorized software and follow the recommended update procedures to ensure drive stability.
Product Guarantee
YASKAWA provides a 12-month warranty for the YASKAWA CACR-SR20BF13FE-Y8 from the date of installation,or 18 months from the date of manufacture,whichever comes first.This warranty covers defects in materials and workmanship under normal operating conditions.YASKAWA’s global technical support network offers expert assistance with installation,configuration,and troubleshooting for the YASKAWA CACR-SR20BF13FE-Y8,ensuring prompt resolution of any issues.Customers also have access to comprehensive documentation,including user manuals,application guides,and software tools,to facilitate optimal use of the servo drive.For extended warranty options and specialized support services,contact your local YASKAWA representative,ensuring long-term reliability and performance of the YASKAWA CACR-SR20BF13FE-Y8 in your automation system.
