Technical Specifications

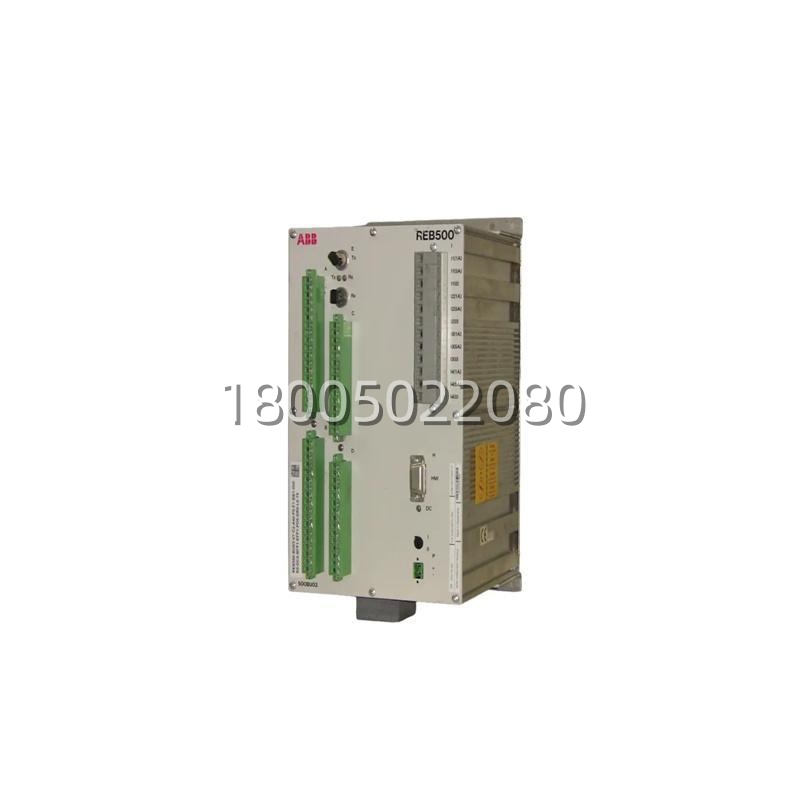

| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1MRB150082R0103 (500CU-BIO01) |
| Manufacturer | ABB |
| Product Type | Binary I/O Module (Compact / Remote) |
| Series | ABB 500CU series |
| Total I/O Channels | 16 channels (typically 8 DI + 8 DO; DI/DO split revision-dependent) |
| Input Type | Binary / Digital Input, optocoupler isolated, software debounce capable |
| Input Voltage / Current | 12–24 V DC (±10%), typ. 50 mA per channel |
| Output Type | Binary / Digital Output, relay or transistor (rev-dependent) |
| Output Rating | Up to 250 V AC/DC, 1 A per channel (rev-dependent) |
| Communication Interface | Modbus RTU (baseline); Modbus TCP/IP on capable variants |
| Event Handling | Local event timestamp (rev-dependent), channel diagnostics |
| Operating Temperature | -25 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 0% to 95% RH, non-condensing |
| Supply Voltage | 12–24 V DC (±10%), external |
| Mounting | DIN rail / compact rack slot (cabinet interior) |
| Ingress Protection | IP20 (connector IP67 per some regional descriptions) |
| Dimensions (L×W×H) | Approx. 22 × 75 × 112 mm (thin DIN ver); 125–150 × 80–100 × 30–90 mm (alt. terminal-style variants by region) |
| Weight | Approx. 0.4–0.5 kg |
| Certifications | CE, UL, ISO 9001 |
Note: Specific channel split, output device (relay vs. transistor), and communication variant (RTU vs. TCP) can vary by hardware revision / regional SKU—verify the label on your existing 500CU-BIO01 before ordering substitution.
Main Features and Advantages
Optocoupler-isolated inputs with software debounce: The ABB 1MRB150082R0103 inputs are opto-coupled, which blocks ground-loop and induced-noise issues that plague long-run switch wiring in MCC rooms. More usefully, the firmware supports software debounce on the DI channels—a limit switch bouncing for 15 ms on closure won’t generate three rising edges on the Modbus register. For e-stop chains and guard-door interlocks where “one edge = one trip” is safety-critical, that debounce configurability on the 500CU-BIO01 keeps the master’s logic clean without external RC networks on every field wire.250 V / 1 A output drive: Many compact I/O modules cap outputs at 30 V DC / 0.5 A, which forces an interposing relay for anything mains-side. The ABB 1MRB150082R0103 rates its DO channels to 250 V AC/DC at 1 A (rev-dependent), meaning a 24 V solenoid, a 120 V indicator beacon, or a 230 V small alarm horn can be driven directly from the 500CU-BIO01 terminal, saving DIN space and wiring labor. For inductive AC loads (contactor coils, larger solenoids), still add snubbing—the 1 A rating assumes resistive; inductive de-rating applies.Modbus flexibility: Baseline communication is Modbus RTU (RS-485), which lets the 500CU-BIO01 hang off virtually any master—ABB AC500, Symphony Plus via a Modbus gateway, Siemens/Rockwell/OMRON PLCs, or a Linux SCADA box with an RS-485 dongle. On TCP-capable revisions, the same module lands on the plant Ethernet alongside the PLCs, which simplifies cabling on new builds. Either way the ABB 1MRB150082R0103 speaks the one protocol every controls engineer already knows, avoiding the proprietary-backplane tax of a full rack expansion.Compact DIN footprint: At ~22 mm thin in the slim DIN version, the ABB 1MRB150082R0103 tucks beside a power supply or a small PLC in a 200 mm deep cabinet—the kind of “packed” enclosure on packaging machines and converter lines where backplane-rack depth isn’t available. Removable terminal blocks (on most revisions) mean a swap doesn’t require re-terminating 16 field wires—label, unplug, swap board, plug back. That alone cuts MTTR on a fault-from-the-field event from an hour to ten minutes.Wide-temperature, cabinet-class rugged: -25 °C to +60 °C and 5–95% RH non-condensing puts the 500CU-BIO01 into non-air-conditioned MCC rooms, pump-house skids, and outdoor-enclosure-with-fan scenarios common in water/wastewater and bulk-material handling. IP20 is cabinet-only (as expected for a DIN module), but the connector area on some regional SKUs is called out at IP67, which helps when the cabinet door gets opened in drizzle during commissioning.Cross-train spare logic: Because the ABB 1MRB150082R0103 is a generalist—DI for e-stop / guard / limit, DO for solenoid / lamp / horn—one SKU serves multiple aisles on the same plant. Packaging line has 8 valve islands? 500CU-BIO01. Conveyor interlock string needs 8 DI for pull-cords? 500CU-BIO01. Pump-house local I/O for 8 float-switches? 500CU-BIO01. For the MRO storeroom, that universality beats stocking three different narrow-scope I/O cards.
