Application Scenarios

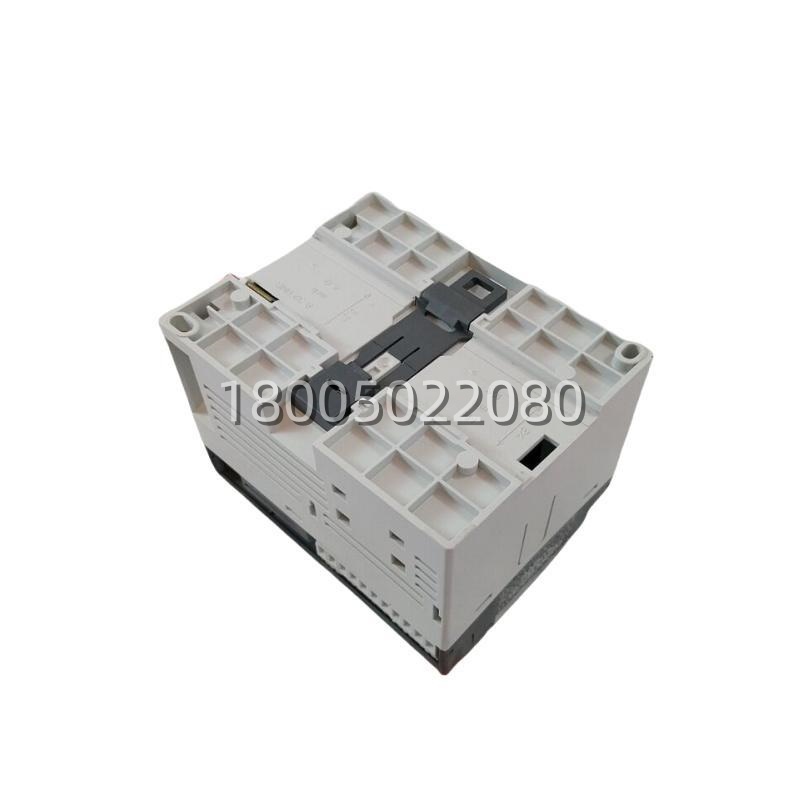

Consider a pump station that requires both motor speed regulation and logic control for valve sequencing, pressure monitoring, and alarm handling. Instead of installing separate drive and PLC units with dedicated wiring and communication links, the ABB 1SBP260020R1001 combines both functions in a single chassis. The unit accepts 380-480V AC input and delivers up to 30 kW of variable-frequency output while running embedded logic programs. This streamlined architecture reduces cabinet space requirements and simplifies installation for pump, fan, and conveyor applications. In retrofitting scenarios where space is at a premium, the ABB 1SBP260020R1001 offers a practical replacement for aging drive-and-controller combinations, eliminating the need for an external PLC and associated cabling.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB 1SBP260020R1001 (07CR41-T3.9) |
| Manufacturer | ABB |
| Product Category | Frequency Converter with Integrated PLC Unit |
| Rated Power | 30 kW |
| Input Voltage | 380-480 V AC (3-phase) |
| Output Frequency Range | 0-50 Hz / 0-60 Hz (variant dependent) |
| Control Methods | V/F, Vector Control, Open Loop |
| Efficiency | Up to 98% |
| Communication Interfaces | Modbus TCP/IP, Profinet |
| Protection Class | IP20 / IP21 (variant dependent) |
| Operating Temperature | -20°C to +60°C |
| Certifications | CE, UL, CSA |
Technical Principles and Innovative Values
Innovation Point 1: Combined Drive and Logic Control Architecture
The ABB 1SBP260020R1001 integrates PWM-based motor speed control with PLC logic execution capabilities within a single unit. This eliminates the need for separate controllers, reducing wiring complexity and cabinet footprint for applications requiring both motor control and sequencing logic.
Innovation Point 2: Flexible Control Modes for Diverse Applications
The unit supports V/F control for basic pump and fan applications, vector control for demanding torque applications, and open-loop operation for simple speed regulation requirements. This versatility allows the ABB 1SBP260020R1001 to adapt to a wide range of motor control scenarios without requiring hardware changes.
Innovation Point 3: Dual-Protocol Communication for System Integration
Equipped with both Profinet and Modbus TCP/IP interfaces, the ABB 1SBP260020R1001 integrates seamlessly with ABB ACS880 drives, Siemens controllers, and other major automation platforms. This ensures smooth data exchange between the drive and the broader DCS or SCADA network.
Innovation Point 4: High Efficiency for Energy Optimization
With an efficiency rating of up to 98%, the ABB 1SBP260020R1001 minimizes power losses during operation. In continuous-duty applications such as fans and pumps, the high-efficiency design contributes to significant energy savings over the product’s lifecycle.
Application Cases and Industry Value
Case Study: Conveyor Line Control Integration
A manufacturing plant with multiple conveyor sections needed both speed control for variable product flow and logic control for interlocking and fault handling. The engineering team selected the ABB 1SBP260020R1001 for each conveyor section, eliminating separate PLC modules and reducing cabinet panel space by approximately 30%. The integrated design also simplified commissioning, as both drive parameters and logic programs were configured through a single interface. The plant reported improved system reliability and faster troubleshooting due to the unified diagnostics capability.
Industry Value Impact
The ABB 1SBP260020R1001 delivers critical value across three dimensions: First, it enhances system efficiency by combining motor control and logic functions, reducing component count and installation complexity. Second, it lowers lifecycle costs through high efficiency and reduced cabinet footprint. Third, it ensures operational flexibility with multiple control modes and communication protocols, supporting both new installations and legacy system upgrades.
