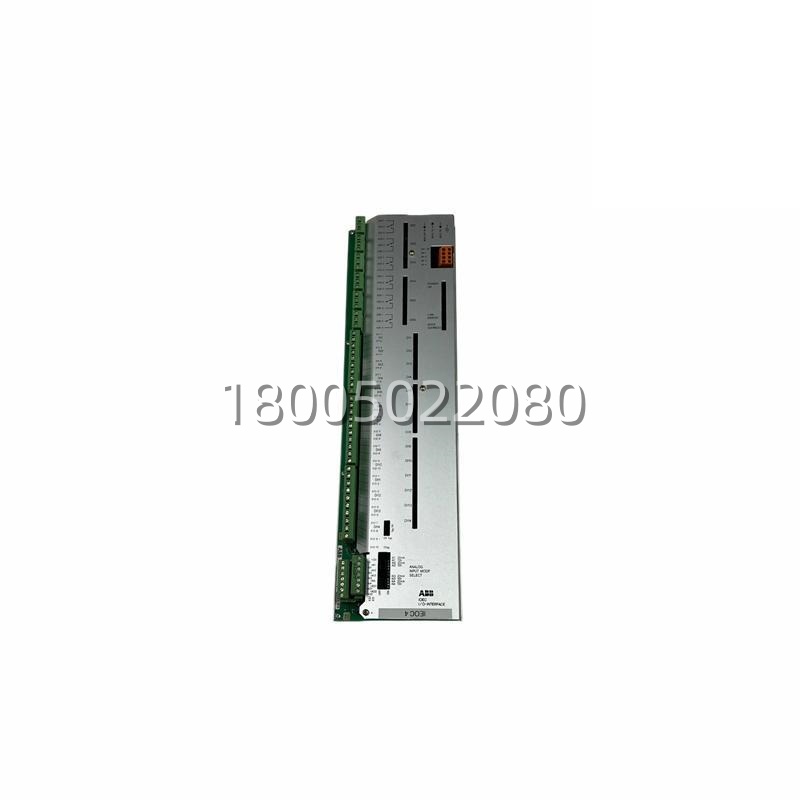

ABB 3BHB003041R0001 IOEC I/O Control Board​ – High-Density 14 DI / 6 DO / 4 AI / 2 AO Interface for ACS1000 MV Drives

Technical Specifications

Main Features and Advantages

The ABB 3BHB003041R0001​ delivers exceptional value in medium-voltage drive I/O interfacing through its thoughtfully engineered architecture and robust industrial design. At the core of the ABB 3BHB003041R0001​ lies its ability to consolidate multiple signal types into a single, manageable interface module—eliminating the need for separate digital and analog I/O cards and significantly simplifying drive control cabinet layout.Comprehensive signal aggregation: The ABB 3BHB003041R0001​ handles 14 digital inputs, 6 relay outputs, 4 analog inputs, and 2 analog outputs within one compact form factor. This rich I/O density allows the module to manage everything from motor temperature sensing and high-voltage cabinet interlocks to remote operator commands and analog speed reference signals—all processed by the ABB 3BHB003041R0001​ with consistent precision.Seamless internal/external bridging: In the ACS1000 drive architecture, the ABB 3BHB003041R0001​ excels at separating internal drive logic (IOEC 1) from external control signals (IOEC 2). This logical partitioning ensures that field-side electrical noise and transients are effectively isolated from the drive’s sensitive internal control electronics, thanks to the 1500 V RMS isolation between field and logic sides. The result is a ABB 3BHB003041R0001​ installation that maintains signal integrity even in electrically hostile environments.Parameter-based programmability: I/O points marked “PROGRAMMABLE” on the ABB 3BHB003041R0001​ can be functionally reassigned through drive parameter configuration, allowing the same hardware to serve diverse application scenarios. This flexibility means the ABB 3BHB003041R0001​ can be adapted to different motor types, control schemes, and safety requirements without physical rewiring or hardware replacement.Wide thermal tolerance: With an operating temperature range of -25°C to +70°C, the ABB 3BHB003041R0001​ thrives in environments where conventional electronics would fail. Whether installed in arctic pipeline pumping stations or desert oil extraction facilities, the ABB 3BHB003041R0001​ maintains reliable operation, contributing to the legendary uptime of ACS1000 drive systems.Backplane integration with AM33C: The ABB 3BHB003041R0001​ communicates with the ACS1000’s AM33C control board via dedicated internal backplane bus, ensuring deterministic, low-latency signal exchange. This tight integration means the ABB 3BHB003041R0001​ participates fully in the drive’s control loop, with no external communication bottlenecks or protocol translation overhead.Genuine ABB quality assurance: Supplied as new surplus authentic ABB product, the ABB 3BHB003041R0001​ carries the full heritage of ABB’s engineering excellence. Every ABB 3BHB003041R0001​ undergoes ABB’s rigorous manufacturing and testing protocols, guaranteeing pin-compatible replacement for existing installations and worry-free integration into new ACS1000 drive deployments.

Application Field

The ABB 3BHB003041R0001​ finds its primary application within ABB ACS1000 series medium-voltage variable frequency drives, which themselves serve critical roles across numerous heavy industrial sectors. In power generation auxiliaries, the ABB 3BHB003041R0001​ interfaces boiler feedwater pumps, forced draft fans, and induced draft fans to their control systems, processing motor temperature signals, bearing vibration trips, and remote speed command inputs. The module’s ability to aggregate 14 digital inputs and 6 relay outputs makes the ABB 3BHB003041R0001​ ideally suited for managing the complex interlock schemes required in power plant safety systems.Within oil and gas pipeline operations, the ABB 3BHB003041R0001​ enables SCADA system integration for crude oil and natural gas booster station drives. Here, the module’s analog input channels receive 4–20 mA signals from pressure transmitters and flow meters, while its analog outputs drive valve positioners and local indicators. The ABB 3BHB003041R0001​ ensures that pipeline operators maintain precise control over pumped media, with the module’s -25°C to +70°C operating range perfectly matching the temperature extremes encountered in cross-continental pipeline installations.In water and wastewater treatment, the ABB 3BHB003041R0001​ connects large horsepower pumps to plant DCS systems, handling level switch inputs, VFD run/stop commands, and fault feedback signals. The programmable nature of the ABB 3BHB003041R0001​ allows treatment facilities to reconfigure I/O assignments as process requirements evolve, extending the useful life of installed ACS1000 drives without hardware replacement.Mining and mineral processing represents another significant application domain for the ABB 3BHB003041R0001. Concentrator pumps, conveyor drives, and grinding mill motors all rely on ACS1000 drives where the ABB 3BHB003041R0001​ manages the critical interface between the drive and plant control systems. The module’s robust isolation and wide temperature tolerance ensure reliable operation in dust-laden, vibration-intensive mining environments where equipment failure is not an option.Marine and offshore applications also benefit from the ABB 3BHB003041R0001, where the module controls thrusters, cargo pumps, and compression systems aboard vessels and offshore platforms. In these space-constrained, harsh-environment installations, the compact footprint and high I/O density of the ABB 3BHB003041R0001​ deliver maximum functionality with minimal cabinet space requirements.
