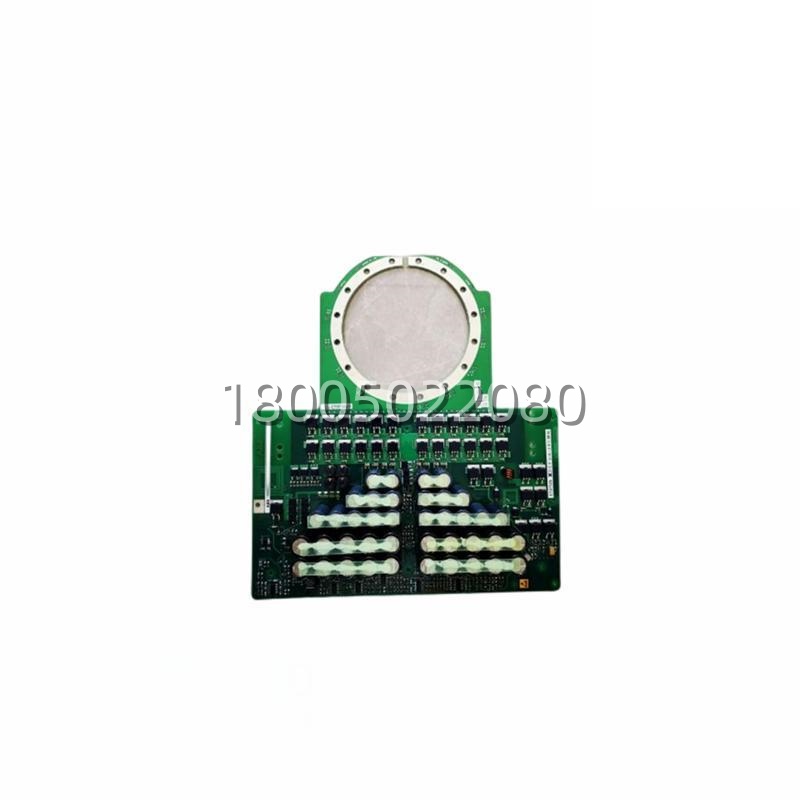

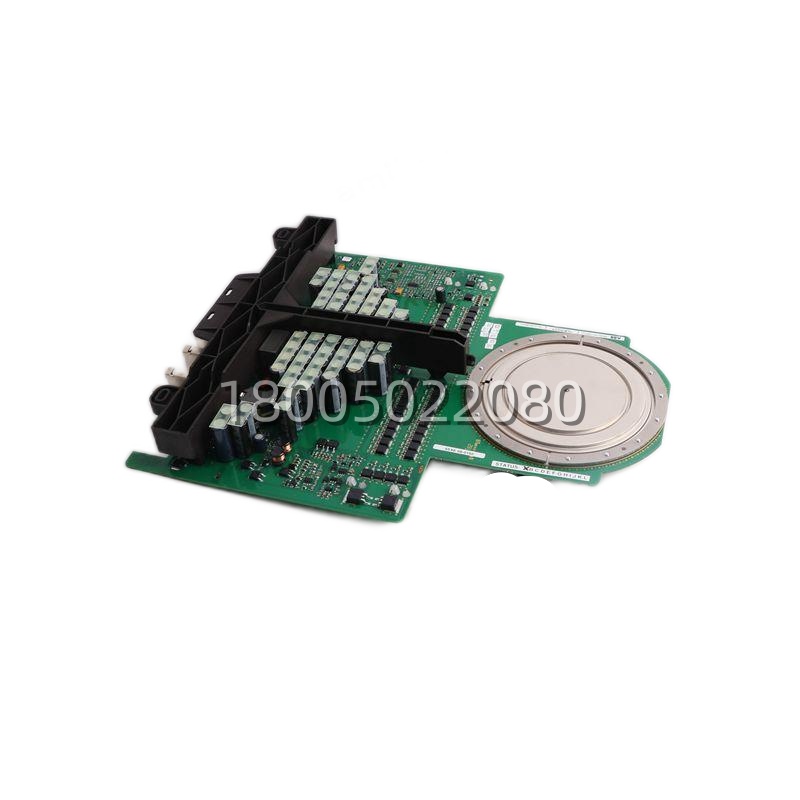

ABB 3BHB003154R0101 5SXE04-0150 IGCT Gate Driver Module Board – High-Power Gate Drive Control Unit for ACS6000 MV Drives

Technical Specifications

Main Features and Advantages

The ABB 3BHB003154R0101​ delivers its core value as the decisive link between ABB’s control intelligence and the raw switching power of the 5SHX1960L0004​ IGCT. Unlike generic gate drivers, the ABB 3BHB003154R0101​ is purpose-built for the unique demands of press-pack IGCT technology, where gate pulse fidelity directly dictates both switching loss and device longevity.Millisecond-level fault response:The integrated desaturation detection circuitry within the ABB 3BHB003154R0101​ continuously monitors the on-state voltage across the IGCT. The moment a desat condition is sensed—indicating a short-circuit or overload event—the ABB 3BHB003154R0101​ executes a fast, controlled soft turn-off, preventing the destructive “shoot-through” energy release that would otherwise destroy the 5SHX1960L0004. Miller clamp circuitry further suppresses parasitic turn-on during high dv/dt transients, while UVLO ensures the gate drive bias is always within safe operating limits before any switching action is permitted.Fiber-optic isolation architecture:All control communication with the ABB 3BHB003154R0101​ occurs over plastic optical fiber, delivering > 2500 V DC of galvanic isolation between the controller domain and the power domain. This optical barrier eliminates ground loops, rejects electromagnetic interference from neighboring power stacks, and enables reliable communication across the physically separated compartments of a multi-megawatt drive cabinet. The ABB 3BHB003154R0101​ receives PWM commands via downstream fiber and reports multi-level fault status via upstream fiber, creating a fully isolated, noise-immune control loop.Perfectly matched to the 5SHX1960L0004 IGCT:The ABB 3BHB003154R0101​ is calibrated to drive the exact gate charge and turn-off current profile required by the 5SHX1960L0004​ (order number 3BHL000390P0104). This IGCT delivers 4500 V repetitive peak off-state voltage, 1960 A average on-state current, and ≥ 2500 A turn-off capability, with an on-state drop of ≤ 2.3 V that minimizes conduction losses in high-current applications. The press-pack package of the 5SHX1960L0004​ fails in a short-circuit mode—never open-circuit—providing an inherent safety advantage over standard IGBT modules in impact-loaded applications such as arc furnaces and rolling mills. Together, the ABB 3BHB003154R0101​ and 5SHX1960L0004​ form a matched, optimized power switching pair.Industrial-grade robustness:Engineered for the harshest cabinet environments, the ABB 3BHB003154R0101​ operates across a -25°C to +70°C temperature span while bolt-mounted directly to the power unit frame adjacent to the IGCT. Its 0.6 kg industrial PCB construction, forced-air cooling path, and IP20-rated enclosure ensure long-term reliability under continuous high-frequency switching stress, vibration, and thermal cycling. The ABB 3BHB003154R0101​ is supplied new-surplus, genuine ABB original—never refurbished—and carries full CE, UL, and IEC 60747 compliance for global deployment.
