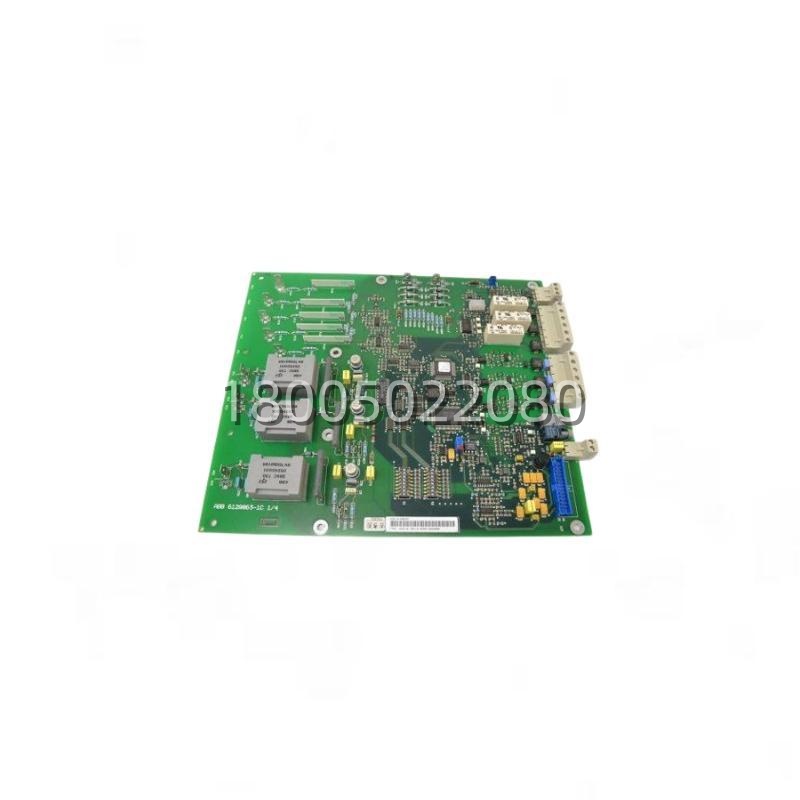

ABB 61298487 NDSC-01 Spare PCB – ACS600 DSU 12/16/24-Pulse Rectifier Cabinet Replacement

Technical Specifications

Main Features and Advantages

Rectifier-side ownership in a multi-drive line: The ABB 61298487​ doesn’t try to be everything—it explicitly doesn’t run inverter PWM (that’s RMIO + NINT-01 on the INU side). What it does own is the front end: diode bridge supervision, DC-bus regulation handshake, pre-charge thyristor firing on larger DSUs, and fan/brake/fuse monitoring. On a 4-quadrant paper-machine drive where three inverter sections share one DC link, the NDSC-01​ is the one that tells the bus “I’m healthy, keep feeding.” If it blinks out, the whole multi-drive string sees DC-bus faults even though the inverter cabinets themselves are fine.32-bit DSP with DTC awareness: At 150 MHz the ABB 61298487​ has headroom to run the DTC supervisory loops that the ACS600/800 family is known for, even though the actual torque math lives partly downstream on the inverter-side DSP. The point is timing consistency—the NDSC-01​ samples Udc, Uac, sync, and currents in locked step with the DDCS fiber cycle, so when the inverter side asks “what’s the bus doing?” the answer arrives with deterministic latency. Swap in a repaired or clone board with different wait-state behavior and the DDCS ring can show CRC spikes that take days to trace.Fiber-ring resilience: The DDCS 10 Mbps optical port on the ABB 61298487​ supports ring topology with the NDCU master and NDLS slaves. If one fiber leg is cut, the ring closes and communication survives—this matters on cable-carrier or rolling-mill lines where fiber trunks get knocked during maintenance. The NDSC-01​ also surfaces fault codes to the master in real time and supports offline waveform/diagnostic recall, so when a DC-bus overvoltage event tripped three inverter sections, the 61298487​ log tells you whether the rectifier saw a line-sag or a pre-charge thyristor misfire.Onboard diagnostics without a panel: The 7-segment tube and DIP switches mean a technician can power the DSU cabinet, watch the ABB 61298487​ self-test through the window, and read a fault code without plugging a control panel or laptop. For plants where the DSU cabinet is in a motor room away from the pulpit, that standalone visibility shortens the “is it the rectifier or the inverter?” triage.Migration note: ABB positions NDCU-12C​ as the forward path when NDSC-01​ stocks run dry, but the DIP-address map, DDCS node numbering, and fiber pinout differ—so a straight swap isn’t always “unplug old, plug new.” MRO planners should decide cabinet-by-cabinet: keep 61298487​ for like-for-like on existing DSUs, and only jump to NDCU-12C when a full drive section is being re-commissioned with parameter file migration budgeted in.

Application Field

The ABB 61298487​ lives inside ABB ACS600 and ACS800 multi-drive cabinets configured as common-DC-bus systems—most typically the DSU (diode rectifier) cabinet that forms the front end of that bus. You’ll find it on paper-machine drive aisles (wet end / dryer / calender sections sharing one DC link), metal rolling mills (main drive + pay-off + tension reels on one bus), cable and wire extrusion lines (extruder + capstan + take-up), and large conveyor / crusher trains in mining where regenerative sections feed braking energy back onto the shared DC bus. In each case the plant runs multiple inverter drives off one rectifier front-end, and the NDSC-01​ is the DSU cabinet’s control brain.Specific failure modes that drive ABB 61298487​ replacement demand: DSU cabinet throwing “DC-overvoltage,” “synch loss,” “DDCS ring break,” or “ground fault on rectifier side” while inverter cabinets test clean; 7-segment on the board showing a code that maps to Udc sampling or pre-charge thyristor fault; or the DSU fan/brake outputs refusing to arm because the DO relay section on the 61298487​ has fatigued after 15+ years of switching. Because the NDSC-01​ sits in the rectifier cabinet—not the inverter—it sees less thermal cycling than the inverter-side RMIO, but it does see more line-side surge and ground-fault events, which is why the isolated trigger and measurement front-end age out.For MRO planners, the ABB 61298487​ is a “one-per-DSU-cabinet” spare. A typical ACS800 multi-drive line might have one DSU feeding 3–6 inverter INUs; stocking one NDSC-01​ per DSU means a rectifier-cabinet fault never cascades into the whole drive string. Since ABB has flagged the ND-series as migration-path (→ NDCU-12C) and lead times on 61298487​ can stretch in some regions, proactive buy beats emergency sourcing—especially on continuous-process lines (paper, foil, film) where a DSU fault = whole machine down.Brownfield retrofit note: When a plant upgrades inverter cabinets (say ACS800 → ACS880) but keeps the existing DSU rectifier frame (the diodes don’t wear out the same way IGBTs do), the ABB 61298487​ often stays put—its DDCS fiber still talks to the new RMIO-side world, and the DSU mechanicals don’t justify replacement. That “mix-and-match” scenario is where the 61298487​ sees its longest tail: DSU 15 years old, inverters 5 years old, all talking DDCS.
