ABB AO810V2 Analog Output Module – 14-Bit Resolution, ±0.1% Accuracy, OSP Fail-Safe on ModuleBus Loss

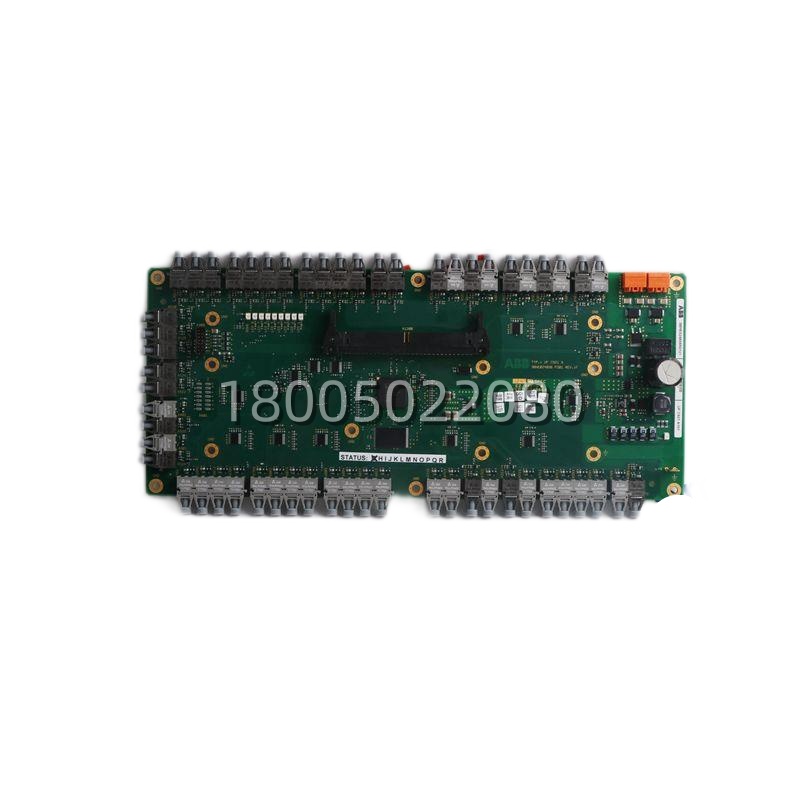

Technical Specifications

Main Features and Advantages

14-bit resolution with ≤2 ms refresh in a non-HART price tier.​ The ABB AO810V2​ lands in the sweet spot: accurate enough for PID valve loops and VFD speed setpoints in refineries, pulp-mill stock lines, and boiler auxiliary control, without the cost adder of HART. Most continuous-process AO loops don’t need HART write—they need stable current drive and fast update, which the AO810V2​ delivers at 0.35 ms rise time and 600 m field-cable headroom.OSP (Output Set Point) on communication loss.​ If ModuleBus drops or the controller goes dark, the ABB AO810V2​ can be pre-configured to drive each channel to a safe state—hold last, clamp to zero, or jump to a user-defined mA value. For a fired-heater fuel-air split-range or a reactor-feed control valve, that “don’t go wild when the rack blips” behavior is what keeps the DCS engineer sleeping at night. OSP is a software-grouped feature, but the hardware has to support it—and the AO810V2​ does.Open-circuit diagnostics that actually catch loose terminations.​ The >1 mA threshold is deliberate: if the controller is asking for 12 mA and the module sees no load-path integrity, it throws a channel error instead of silently driving a dead loop. In plants where “valve not moving” tickets take two hours to trace to a corroded terminal on a marshalling cabinet 40 metres away, the ABB AO810V2​ diagnostic saves that walk. The front-panel O (output state) LED per channel also lets a tech confirm “am I actually driving?” without a clamp meter.L2+ supply extends to 850 Ω.​ This is the practical differentiator versus modules that cap at 500 Ω. Run a 4–20 mA loop through 300 m of 1.5 mm² paired cable plus a 250 Ω receiver shunt plus a surge isolator, and you’ll thank the AO810V2​ for the L2+ headroom—especially in greenfield sites where the marshalling cabinet and field instrument aren’t in the same building.Keying AE prevents wrong-slot insertion.​ S800 MTUs accept multiple module types, and the mechanical keying between AO810V2​ (AE) and, say, a DI810 (different keying) stops a tired electrician from forcing an AO into a DI position and cooking the rail. Small detail, big MRO value.Honest limitations stated upfront.​ The ABB AO810V2​ is not HART-capable (that’s AO815/AO820), not channel-to-channel isolated (8 ch share a return—fine for most valve/VFD loops, wrong for differential pH / conductivity pairs that need galv isolation), and not redundant. If your loop needs HART or channel isolation, step up; if it just needs 8 solid mA outputs, the AO810V2​ is the right SKU and the V2 suffix is the one to stock—original AO810 is functionally close but EMI/diagnostic tuning on V2 is why most service BOMs migrated.

Application Field

The ABB AO810V2​ sits in S800 I/O racks that serve AC800M, 800xA, and Freelance controller platforms, which puts it across the usual ABB DCS install base: oil & gas gathering stations driving pneumatic-positioner valves on separator dump/cut lines; refinery tank-farm blend skids where 4–20 mA feeds VFD speed references on transfer pumps; pulp & paper stock-prep lines where stock-throttling valves and refiner dilution water valves hang off S800 remote I/O in the machine-room rack; power-gen balance-of-plant—coal-mill primary-air damper, gas-turbine aux boiler drum-level valve, FD fan inlet-vane VFD reference—all classic AO810V2​ loads because none of them need HART back-channel, just stable 4–20 mA with OSP on comms loss.Water & wastewater is another dense pocket: chemical-dose metering pumps (0–20 mA for stroke-speed), UV-reactor bypass-damper actuators, dissolved-air-floatation skimmer VFDs—these tend to land in compact MTU (TU810/TU814) S800 slices in outdoor-rated kiosks, and the ABB AO810V2​ 0–55 °C rating plus C1D2 / ATEX Zone 2 certification covers most non-classified and light-hazard kiosks without stepping to the premium AO815. Marine and offshore MCC bays that carry ABS/BV/DNV/LR type approval on the S800 rack also use the AO810V2​ for non-HART actuator loops—ballast valve, seawater cooling modulation, generator lub-oil cooler bypass—where the 600 m cable length and 850 Ω L2+ load matter because the MTU is in the ECR and the actuator is on deck. Across all of these, the problem pattern is the same: controller has the number, field needs the mA, and the AO810V2​ is the eight-lane bridge that doesn’t need HART to do its job.
