Technical Specifications
| Parameter Name | Value |
|---|---|

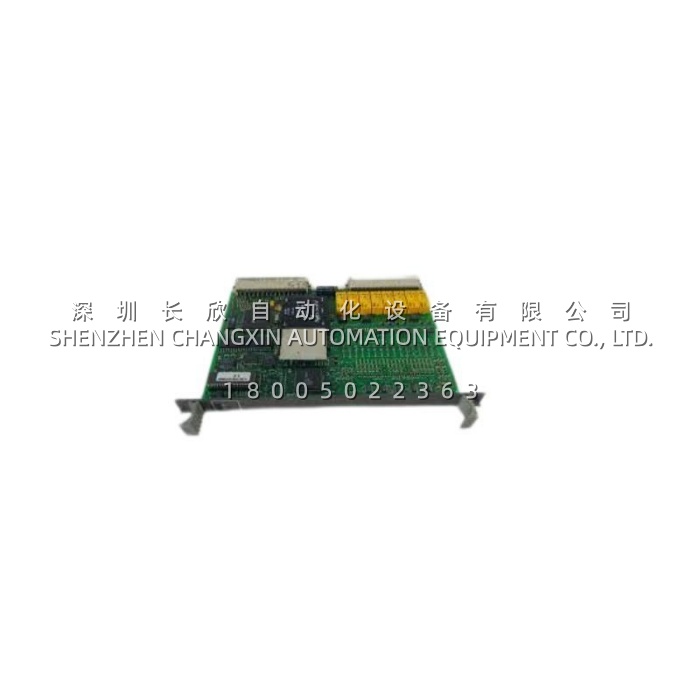

| Product Model | ABB 83SR04E-E |
| Order Number | GJR2390200R1211 |
| Manufacturer | ABB |
| Product Type | 4-Channel Relay Output Module / Digital Output |
| Platform Compatibility | AC 800M, System 800xA, AC 500, Advant OCS, Procontrol P13 |
| Number of Channels | 4 independent relay channels |
| Relay Type | SPDT (Form C) – each with NO, NC, and COM terminals |
| Coil Voltage | 24V DC (±20%), supplied via module base |
| Contact Rating | 5A @ 250V AC / 30V DC (resistive load) |
| Contact Rating (Inductive Load) | 3A @ 250V AC (recommended derating) |
| Operate Time | ≤6 ms |
| Release Time | ≤4 ms |
| Isolation Voltage | 2kV AC coil-to-contact |
| Protection | Built-in MOV suppression across each relay coil |
| Power Consumption | ≤2 W (typical) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN rail or S800 I/O rack (1 slot) |
| Hot-Swap Support | Yes (RIUP – Removal and Insertion Under Power) |
| Status Indication | Per-channel LED (coil energized) |
| Dimensions (H×W×D) | Approx. 198 × 20 × 261 mm |
| Weight | Approx. 0.55 kg |
| Certifications | SIL 2 (IEC 61508), CE, UL 508, ATEX Zone 2, IECEx |
Main Features and Advantages
Universal Load Compatibility with Form C Relay Architecture: The ABB 83SR04E-E employs four independent SPDT relays, each providing both normally-open and normally-closed contacts. This enables fail-safe circuit designs where the relay’s de-energized state can be configured to maintain a safe condition—a critical feature for emergency shutdown and safety interlock applications . Unlike solid-state outputs limited to DC loads, the relay contacts handle AC and DC loads interchangeably, eliminating the need for load-specific modules . The ABB GJR2390200R1211 is therefore a highly versatile solution for controlling motors, valves, alarms, and safety circuits across diverse industrial environments.
Robust 2kV Galvanic Isolation for System Protection: The ABB GJR2390200R1211 incorporates 2kV AC isolation between the logic side and field side contacts . This robust isolation barrier protects the controller from voltage spikes, ground loops, and transient surges generated by inductive field loads such as contactor coils and solenoid valves. By shielding the backplane from field-side disturbances, the ABB 83SR04E-E significantly reduces the risk of controller damage and system downtime, ensuring reliable operation in electrically noisy industrial environments.
Built-In MOV Suppression for Extended Relay Life: Each channel of the ABB 83SR04E-E includes a Metal Oxide Varistor (MOV) across the relay coil to suppress back-EMF from inductive loads . This design detail reduces contact arcing during switching, extending the relay’s electrical life to the typical 10⁵ operations at rated load . The MOV protection also minimizes EMI emissions, contributing to cleaner signal environments in the control cabinet.
Hot-Swappable Design for Zero-Downtime Maintenance: The ABB 83SR04E-E supports online replacement without powering down the I/O rack . This RIUP capability allows maintenance teams to replace faulty modules during production, eliminating costly system shutdowns and minimizing unplanned downtime—a decisive advantage in continuous process applications such as chemical plants, refineries, and power generation facilities .
Wide-Temperature Operation and Industrial Durability: Engineered for harsh conditions, the ABB GJR2390200R1211 operates reliably across a temperature range of -40°C to +70°C . This wide-temperature design, combined with its robust mechanical construction, makes the ABB 83SR04E-E suitable for outdoor control cabinets, unheated industrial sheds, and extreme climate environments commonly found in mining, oil and gas, and heavy manufacturing.
