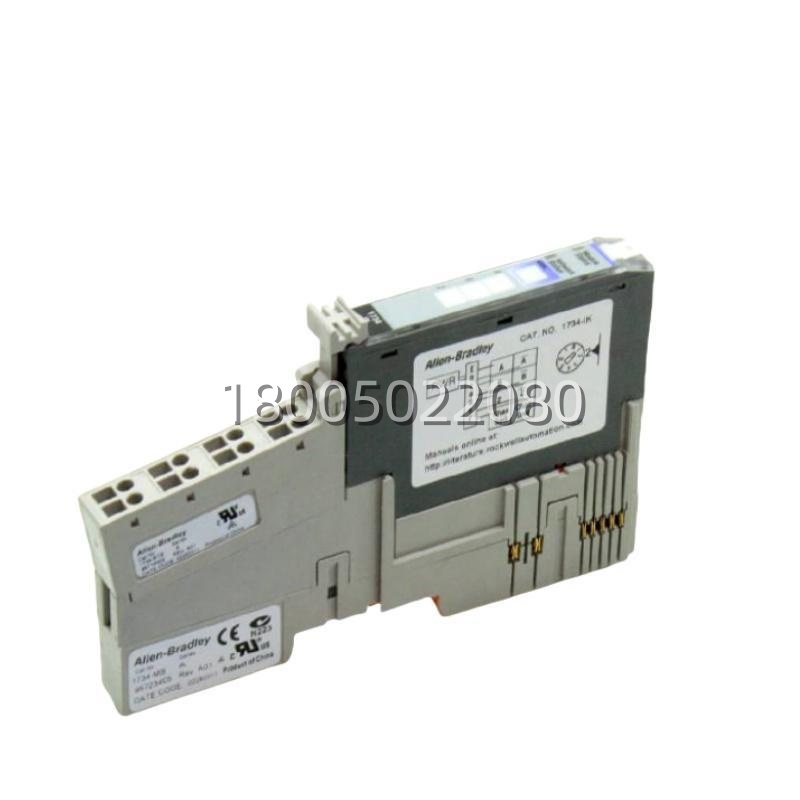

Allen-Bradley 1734-IK/C: Cost-Effective Encoder Solution for Automation

Technical Specifications

Main Features and Advantages

High-Speed, High-Resolution Counting: The 1734-IK/C​ is engineered for performance, capable of processing encoder signals at frequencies up to 1 MHz. This high speed, combined with 4x quadrature decoding, allows it to deliver extremely high-resolution position feedback, which is critical for precise measurement and high-speed applications. The 32-bit up/down counter provides a vast counting range, preventing overflow in long-running processes. This capability makes the Allen-Bradley 1734-IK/C​ suitable for demanding tasks like cut-to-length, registration control, and spindle speed monitoring where accuracy and responsiveness are paramount.Robust Connectivity and Flexible Configuration: The module supports industry-standard differential line driver outputs from encoders, which provide superior noise immunity in electrically harsh environments compared to single-ended signals. The wide input voltage range (5-24V DC) allows it to interface with a broad array of encoder models without requiring external signal converters. Configuration is straightforward using Rockwell’s Studio 5000 or RSLogix 5000 software, where parameters like input voltage, filter time, and counting mode can be easily set. The removable terminal block simplifies wiring and module replacement, minimizing downtime during maintenance or reconfiguration.Seamless Integration and Diagnostics: As a native member of the 1734 Point I/O family, the 1734-IK/C​ integrates seamlessly with Allen-Bradley’s Logix control platform. It appears as a standard I/O module in the controller’s tag database, providing direct access to the count value, status bits, and control words. This tight integration simplifies programming and diagnostics. The module features clear status indication via LEDs for power, communication, and input activity, enabling quick visual health checks. Its compact DIN-rail mounting form factor allows for high-density installation close to the point of use, saving panel space and reducing overall system wiring costs and complexity.

Application Field

The Allen-Bradley 1734-IK/C​ incremental encoder module is deployed across a wide spectrum of discrete manufacturing and material handling applications where precise measurement of position, speed, or length is required. A primary application is in packaging machinery, where it is used for registration control to ensure labels, cuts, or fills occur at the exact correct position on a moving web of material. Similarly, in converting equipment for paper, plastic, or metals, the 1734-IK/C​ provides the critical length measurement for accurate cut-to-length and flying shear operations, directly impacting material yield and product quality.In automated assembly and indexing systems, this module is used to provide precise angular or linear position feedback for rotary dial tables, pick-and-place units, and sliding mechanisms. It enables accurate positioning for parts placement, machining, or inspection. The module is also extensively used in material handling for monitoring conveyor line speed, counting products, and measuring the position of pallets or carriers on an automated guided vehicle (AGV) or monorail system. Furthermore, in general machine automation, it serves as a reliable tachometer for monitoring motor or spindle speed. By providing localized, high-speed counting, the 1734-IK/C​ eliminates the need to run long, sensitive encoder cables back to a central cabinet, improving signal integrity and system reliability in distributed machine architectures.
