Application Scenarios
In a high‑speed packaging line producing 240 units per minute, an equipment manufacturer struggled with synchronization jitter between four servo‑driven conveyor sections, resulting in frequent product jams and reject rates exceeding 3.5%. By integrating the 1768‑M04SE into their CompactLogix control architecture, the team achieved sub‑millisecond synchronization with cycle times as low as 0.5 ms, eliminating jitter and reducing reject rates to below 0.2%. The module’s fiber‑optic SERCOS communication ensures signal integrity even in electrically noisy environments—a critical advantage near VFDs and welding equipment. Whether deployed in robotics cells, printing presses, or material handling systems, the 1768‑M04SE provides the deterministic communication backbone that makes high‑speed coordinated motion economically viable.
Parameters
| Main Parameters | Value/Description |
|---|---|

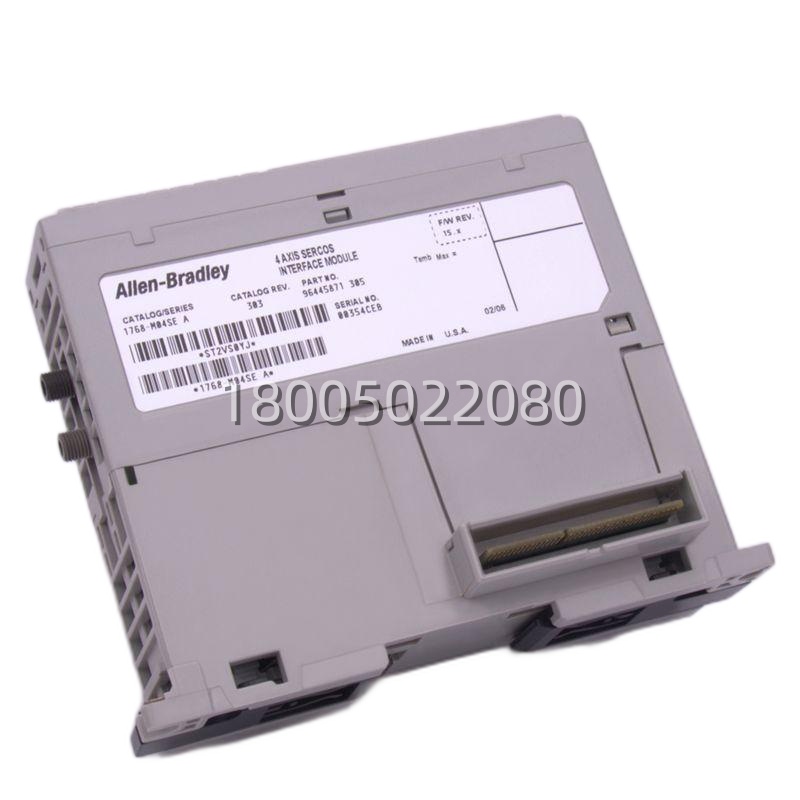

| Product Model | Allen‑Bradley 1768‑M04SE |
| Manufacturer | Rockwell Automation / Allen‑Bradley |
| Product Category | SERCOS Motion Interface Module |
| Controllable Axes | 4 axes + 2 auxiliary feedback axes |
| SERCOS Class | Class B (Position or Velocity control modes) |
| Data Rates | 4 Mbps or 8 Mbps (selectable) |
| Cycle Time @ 4 Mbps | 0.5 ms (up to 2 drives) / 1 ms (up to 4 drives) |
| Cycle Time @ 8 Mbps | 0.5 ms (up to 4 drives with Kinetix 6000) |
| Backplane Current Draw | 969 mA @ 5.2V DC (24V: 0 mA) |
| Power Dissipation | 5.04 W |
| Dimensions (H×W×D) | 132.0 × 56.7 × 105.1 mm (5.2″ × 2.23″ × 4.14″) |
| Weight | Approx. 0.20 kg (7.1 oz) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Fiber‑Optic Connector | F‑SMA standard screw‑type |
| Certified Drives | Kinetix 2000/6000/7000, Ultra 3000 SERCOS |
| Lifecycle Status | Discontinued as of December 31, 2020 (replacement engineering support available) |
Technical Principles and Innovative Values
Innovation Point 1: Deterministic SERCOS Fiber‑Optic Communication
Unlike fieldbus‑based motion solutions that suffer from variable latency, the 1768‑M04SE employs the SERCOS (Serial Real‑time Communication System) protocol over fiber‑optic media, providing guaranteed cycle times as low as 0.5 ms regardless of network traffic. The optical transmission ensures complete electrical isolation and immunity to EMI/RFI, making it ideal for installations near high‑power drives and welding equipment. The module supports both plastic fiber (up to 32 m) and glass fiber (up to 200 m) cables with F‑SMA connectors.
Innovation Point 2: Integrated Architecture Seamlessness
The 1768‑M04SE is not a standalone motion controller—it becomes an integral part of the Logix control engine, allowing motion, logic, and HMI tasks to execute within the same RSLogix 5000 / Studio 5000 programming environment. This eliminates the need for separate motion programming software and reduces engineering effort by up to 40% compared to traditional motion‑PLC architectures. The module supports up to two instances per 1768‑L45 controller for 8‑axis total control.
Innovation Point 3: Cost‑Effective Axis Scaling
The 1768‑M04SE delivers 4‑axis control at a fraction of the cost of dedicated motion controllers, with support for up to 4 drives consuming only 3 connections. For applications requiring additional axes, a second module can be added to the 1768‑L45 system, providing scalable expansion without replacing the core controller.
Innovation Point 4: Comprehensive Drive Ecosystem
The module supports the full Kinetix servo drive portfolio—from the compact Kinetix 2000 to the high‑power Kinetix 7000—alongside Ultra 3000 SERCOS drives. This unified compatibility allows system designers to mix drive sizes within a single SERCOS ring, optimizing cost and performance for each axis without compromising communication integrity.
