Application Scenarios
In a chemical processing plant, operators faced inconsistent product quality due to temperature fluctuations in a reactor vessel. The existing single‑ended thermocouple wiring picked up electrical noise from nearby motor drives, causing erratic controller responses. After replacing the wiring scheme with differential inputs on the Allen‑Bradley 1769‑IF4, noise was effectively canceled, and temperature readings stabilized to within ±0.2% of full scale. The plant reduced batch reject rates by 18% and eliminated nuisance alarms that had previously triggered unnecessary production stops.
The 1769‑IF4 excels in applications requiring precise analog measurement—from OEM packaging machines monitoring web tension with 0‑10V transducers, to water treatment facilities tracking pH and flow via 4‑20mA loop‑powered transmitters. Its ability to handle mixed signal types on the same module provides engineers with a versatile tool for system design.
Parameters

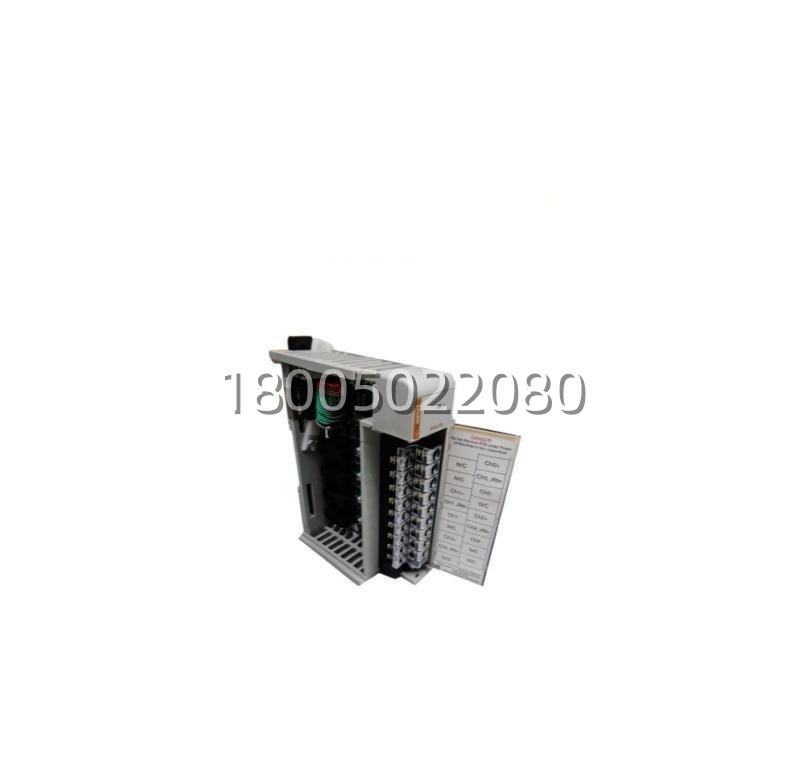

| Main Parameters | Value/Description |
|---|---|
| Product Model | 1769‑IF4 |
| Manufacturer | Allen‑Bradley / Rockwell Automation |
| Product Category | Analog Input Module |
| Number of Inputs | 4 differential or single‑ended inputs (field‑configurable per channel) |
| Voltage Ranges | ±10V DC, 0‑10V DC, 0‑5V DC, 1‑5V DC |
| Current Ranges | 0‑20mA, 4‑20mA, 0‑21mA full scale |
| Resolution | 14 bits unipolar; 14 bits plus sign for bipolar |
| Backplane Current Draw | 120 mA @ 5V DC (Series B) |
| External 24V DC Draw | 60 mA (Series B, when using optional external supply) |
| Dimensions (H×W×D) | 118 × 35 × 87 mm |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Mounting Type | DIN rail (35mm EN 50022) or panel mount |
| Isolation | Optically isolated between field side and logic side (channel‑to‑channel not isolated) |
Technical Principles and Innovative Values
Innovation Point 1: Flexible Differential and Single‑Ended Input Architecture
The 1769‑IF4 allows each channel to be independently configured for either differential or single‑ended input. Differential wiring cancels common‑mode noise (up to ±10V) that often plagues analog signals in motor‑intensive environments, while single‑ended configuration simplifies wiring when noise is not a concern. This flexibility enables the 1769‑IF4 to adapt to the specific demands of each sensor, reducing the need for external signal conditioners.
Innovation Point 2: Delta‑Sigma Converter with Programmable Filtering
The module employs a Delta‑Sigma converter architecture to achieve high noise rejection and stable readings. Users can configure a digital filter with step response times ranging from 10 ms to 1000 ms , allowing a trade‑off between update speed and noise immunity. Fast filter settings suit rapidly changing signals like pressure transients; slower settings stabilize noisy signals such as thermocouple readings, a feature not uniformly available in competing 4‑channel modules.
Innovation Point 3: External 24V DC Power Switch (Series B)
Series B versions of the 1769‑IF4 include a hardware switch that lets installers choose between drawing 24V power from the backplane or from an external Class 2 power supply . When powering active 4‑20mA loop transmitters, the external supply option prevents overloading the backplane—a thoughtful design that enhances system reliability and simplifies compliance with Class 2 power limitations for hazardous locations.
Innovation Point 4: Hazardous Location Certification
The 1769‑IF4 carries certifications for Class I Division 2 Groups A, B, C, D hazardous locations . This allows the module to be installed in environments where flammable gases or vapors may occasionally be present, expanding its applicability beyond the control cabinet and into areas where many other analog modules cannot be deployed.
Application Cases and Industry Value
Case 1: OEM Packaging Machine Upgrade
A leading packaging machinery manufacturer standardized on the 1769‑IF4 for their vertical form‑fill‑seal (VFFS) machines. The module collects four analog signals per station: product temperature (thermocouple), film tension (0‑10V transducer), seal pressure (4‑20mA sensor), and air flow (0‑5V pressure sensor). By consolidating all analog inputs into a single 1769‑IF4, the manufacturer reduced panel wiring complexity and improved diagnostic capabilities through Studio 5000’s module‑level alarming. The end customer reported a 35% reduction in troubleshooting time during commissioning.
Case 2: Water Treatment Facility Retrofit
A municipal water plant using 4‑20mA pressure and flow transmitters across multiple filter banks replaced their fragmented analog input cards with the 1769‑IF4. The module’s 14‑bit resolution improved flow measurement precision by nearly 5% compared to the old 12‑bit system, optimizing chemical dosing and reducing coagulant consumption by 8%. Plant engineers particularly valued the module’s clear channel status LEDs, which instantly indicate over‑ or under‑range conditions—a simple diagnostic feature that sped up field technician response times.
