Application Scenarios
In a petrochemical blending facility, an aging PLC‑5 remote I/O drop experienced intermittent processor faults traced to an unstable +5V DC supply from an original power module nearing end of life. The facility maintenance team replaced the failing unit with a 1771‑P6S, restoring stable 8A backplane current and eliminating unexpected shutdowns that had been costing the plant over $50,000 annually in lost production. The module’s ability to generate a shutdown signal when AC line voltage drops below the minimum threshold ensures only valid data is retained in memory, protecting critical process parameters during brownout conditions . Whether deployed in automotive assembly lines, water treatment facilities, or mining operations, the 1771‑P6S delivers the reliable power foundation required for continuous industrial control.
Parameters

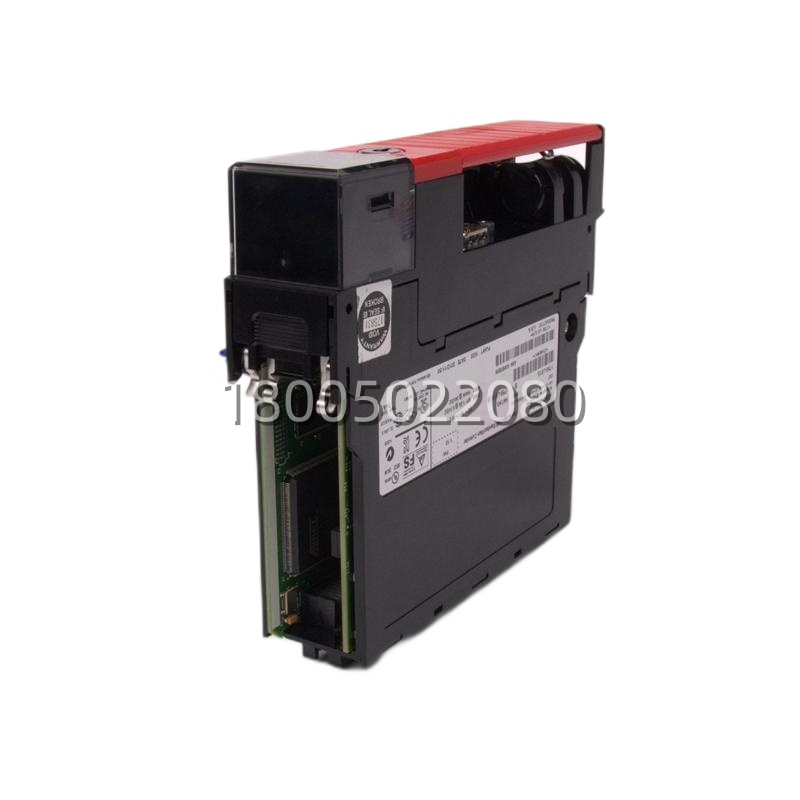

| Main Parameters | Value/Description |
|---|---|
| Product Model | Allen‑Bradley 1771‑P6S |
| Manufacturer | Rockwell Automation / Allen‑Bradley |
| Product Category | Auxiliary Power Supply Module |
| Nominal Input Voltage | 220V AC (RMS) |
| Input Voltage Range | 194 – 264V AC |
| Input Frequency | 47 – 63 Hz |
| Backplane Output Voltage | +5V DC (regulated) |
| Backplane Output Current | 8 A maximum |
| Max Real Input Power | 56 W |
| Max Apparent Input Power | 89 VA |
| Max Transformer Load | 140 VA |
| Fuse Protection | 1.5 A, 250V, slow‑blow |
| Slot Occupancy | 1 slot (1771 chassis) |
| Compatible Chassis | 1771‑A1B, ‑A2B, ‑A3B, ‑A4B, and superseded types |
| Parallel Operation | Supported with 1771‑CT cable |
| Operating Temperature | 0°C to 60°C |
| Status Indicator | P/S ACTIVE LED |
| Weight | Approx. 0.85 kg (1.88 lbs) |
Technical Principles and Innovative Values
Innovation Point 1: Backplane‑Integrated Power Distribution
Unlike external power supplies requiring separate cabling to each module, the 1771‑P6S plugs directly into the 1771 backplane, distributing regulated +5V DC power through the chassis itself . This integrated design minimizes voltage drop and improves noise immunity for sensitive logic circuits, ensuring reliable communication between the processor and I/O modules. The module’s two jumpers near the gold‑plated edge connectors allow configuration for local or remote sensing, optimizing voltage regulation for different chassis configurations .
Innovation Point 2: Intelligent Shutdown Protection
The 1771‑P6S incorporates a sophisticated undervoltage detection mechanism: when the AC line voltage drops below the minimum threshold, the module generates a shutdown signal on the backplane . This signal forces the system to retain only valid data in memory, preventing corruption during brownout conditions. The shutdown is automatically released when line voltage recovers above the low‑voltage limit, enabling seamless system recovery without operator intervention.
Innovation Point 3: Parallel Operation for Expanded Capacity
Two 1771‑P6S modules can be installed in the same chassis and connected via a 1771‑CT paralleling cable to share the load, effectively doubling the available backplane current to 16A . While this configuration is not redundant (if one supply shuts down, the other is informed to turn off its indicator), it enables higher‑density I/O configurations that would exceed a single supply’s 8A capacity .
Innovation Point 4: Modular Form Factor for Simplified Maintenance
Occupying a standard 1771 module slot, the 1771‑P6S is installed and replaced as easily as any I/O module . This modular approach eliminates the need for external power enclosures, reduces installation time, and simplifies cabinet layout. The attached 5‑position terminal block supports 14 AWG copper wiring and includes three functional terminals (L1, L2/N, and ground) with two unused positions .
