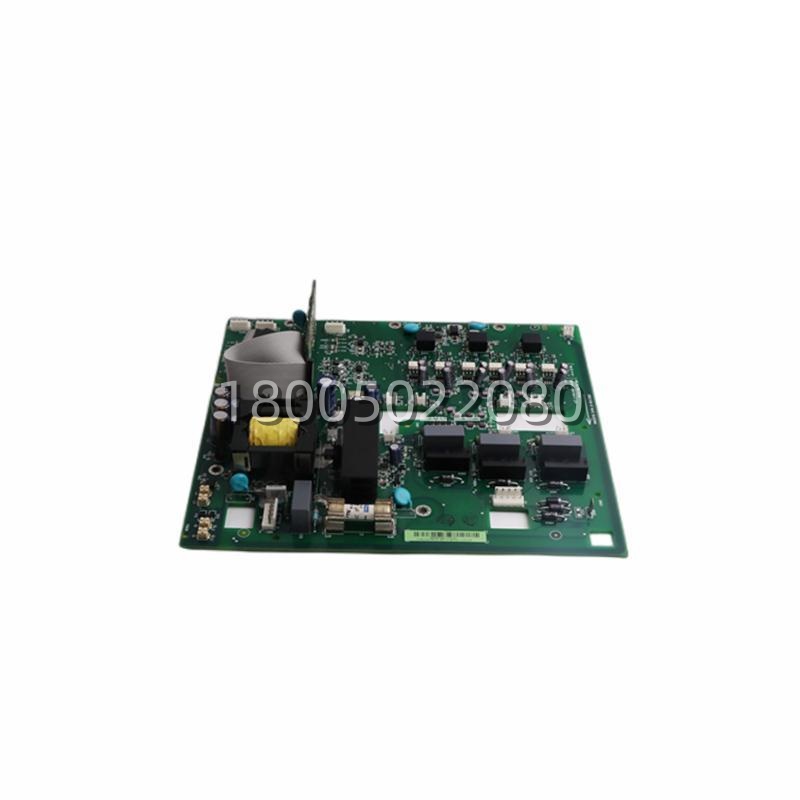

Drive System Heart: ABB SINT4610C Main Circuit Control Board

In a high-precision laser cutting machine, the cutting head must move with extreme speed and accuracy along complex 3D paths. This is achieved by a multi-axis servo system where each axis must respond with microsecond precision. The main drive cabinet houses several compact but powerful SINFINION drive modules, each centered on an ABB SINT4610C​ main circuit board. One board, for instance, controls the high-dynamic X-axis motor. The SINT4610C​ receives a 3-phase AC supply, rectifies it to a stable DC bus voltage, and then uses its intelligent inverter section to generate perfectly timed PWM signals to control the motor’s torque and position. More critically, it processes high-speed position commands from the central motion controller via a SERCOS fiber-optic link and executes local, ultra-fast current control loops. This ensures the motor follows the commanded trajectory without lag or jitter, directly solving the core pain point of precision and dynamic response. A failure or degradation in the SINT4610C​ would mean a complete loss of axis control, halting production.
