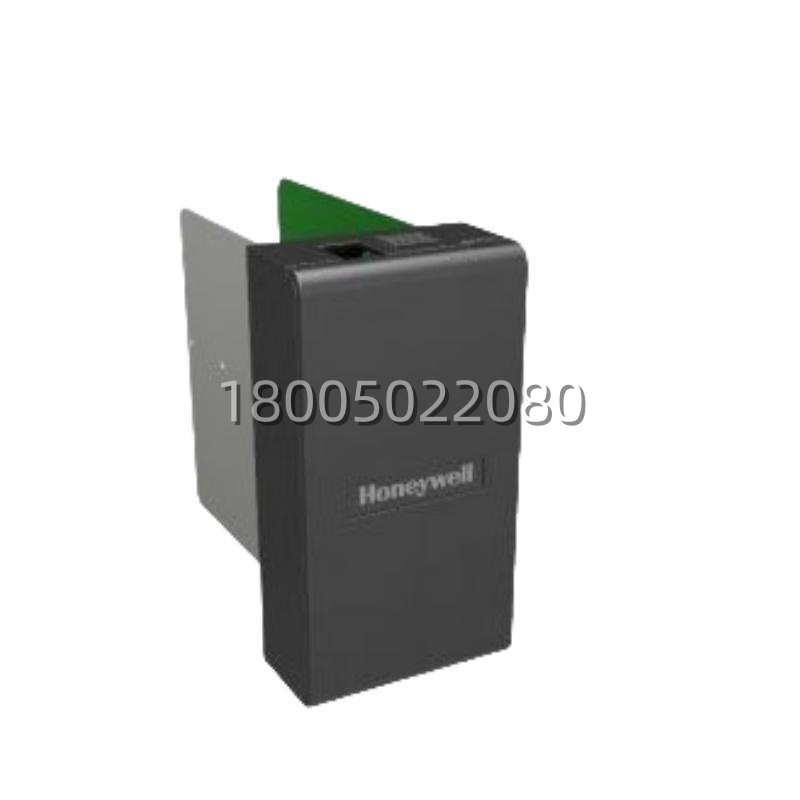

Honeywell 900P01-0001 PSU: High-Capacity Power for Expanded I

Technical Specifications

Main Features and Advantages

The Honeywell HC900 900P01-0001​ is engineered with several key features that ensure dependable operation in an automation environment. Its wide-range universal input (85-264 VAC) is a significant advantage, allowing it to be deployed globally without hardware changes and making it tolerant of typical AC line voltage sags and surges common in industrial plants. This flexibility simplifies inventory and installation for system integrators and end-users with international operations. The robust 4-amp, 96-watt output provides ample power capacity, not just for a base configuration but for significantly expanded I/O racks, offering headroom for future system growth without requiring a power supply upgrade. This design foresight protects the initial investment.Reliability is paramount. The fanless, convection-cooled design eliminates the most common point of failure in power supplies—the cooling fan—resulting in silent operation and higher mean time between failures (MTBF). Integrated protection circuitry is comprehensive. The module includes overcurrent protection to safeguard both the supply itself and the downstream controller modules in the event of a short circuit. Overvoltage protection clamps the output to prevent damaging voltage spikes from reaching sensitive electronics, and thermal shutdown safely disables the output if internal temperatures exceed safe limits. Furthermore, the 900P01-0001​ is designed for low electrical noise (EMI/RFI), providing a clean DC bus that helps ensure the accuracy of analog signal measurements and the stability of digital communications within the HC900 rack. Its plug-and-play integration with the HC900 backplane ensures secure, vibration-resistant connections and simplifies wiring, reducing installation time and potential errors.

Application Field

The Honeywell HC900 900P01-0001​ power supply is inherently tied to the application domains of the HC900 controller itself, as it is the enabling component for any system powered by this platform. Its primary application is within the industrial process control and building automation sectors where the HC900 controller is deployed. In manufacturing, it powers control systems for batch processes in the chemical, pharmaceutical, and food & beverage industries, where consistent power is critical for recipe execution and precise temperature/pressure control. Within HVAC systems for large commercial or institutional buildings, the 900P01-0001​ supplies the controllers managing complex chiller plants, boiler sequences, and air handling units, where a power interruption could lead to loss of environmental control.It is equally vital in water and wastewater treatment plants, powering HC900 racks that control filtration, chemical dosing, and pump stations. In these critical infrastructure settings, the robustness and reliability of the Honeywell HC900 900P01-0001​ are essential for continuous, unattended operation. The module is also found in numerous OEM machinery and skid-mounted systems, such as industrial ovens, furnaces, packaging lines, and test stands. In these applications, the power supply must withstand the variable electrical environments of different end-user sites. Any application scenario that relies on the HC900 for loop control, data acquisition, or equipment sequencing fundamentally depends on the stable 24VDC power delivered by the Honeywell HC900 900P01-0001. It is the unsung hero that ensures the control system’s “brain” and “nerves” (I/O) remain active and functioning correctly.
