Application Scenarios
In a 500,000-ton-per-year polyethylene plant running a Modicon Quantum PLC, the instrumentation team was facing persistent accuracy problems with their legacy analog input modules. Critical pressure and flow loops feeding the reactor control system exhibited drift and occasional spurious trips whenever a variable-frequency drive (VFD) started up nearby. By standardizing on the Schneider 140ACI03000, the plant consolidated all 4-20 mA and 1-5 V field signals into a single, high-precision module type. The Schneider 140ACI03000 captured every transmitter signal with ±0.05% full-scale accuracy and refreshed all 8 channels within 5 ms, enabling tight closed-loop control of the reactor pressure and extruder melt-flow loops. The module’s 1000 V DC isolation between channels and the backplane—and 30 V DC isolation between individual channels—completely eliminated the ground-loop noise that had historically plagued the instrument room. Its built-in broken-wire detection for 4-20 mA loops proved invaluable: when a pressure transmitter’s signal conditioner occasionally dropped out, the Schneider 140ACI03000 immediately flagged the specific channel fault via its dedicated red LED, allowing technicians to isolate the fault in under 5 minutes rather than hours. Over 24 months of operation, the plant reported a 99.97% I/O availability rate and a 70% reduction in analog-input-related maintenance work orders.
Parameter
| Main Parameters | Value/Description |
|---|---|

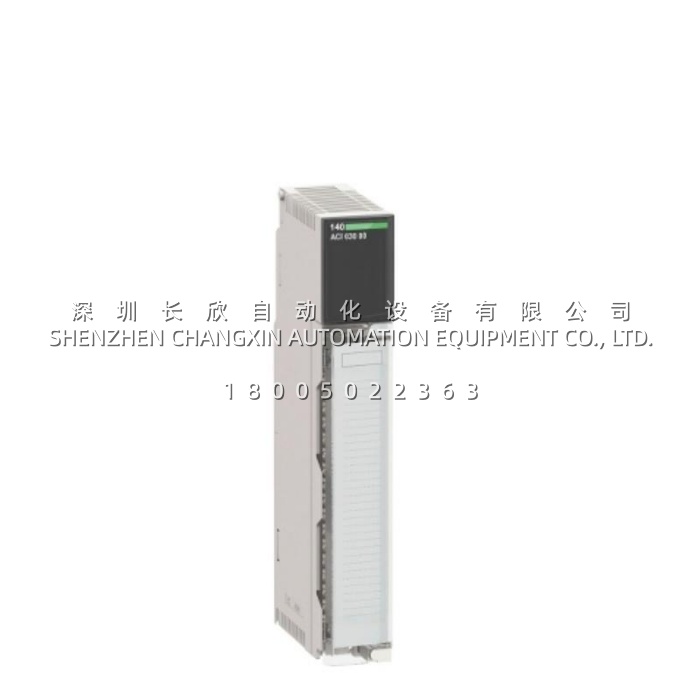

| Product Model | 140ACI03000 |
| Manufacturer | Schneider Electric |
| Product Category | Analog Input Module |
| System Compatibility | Modicon Quantum automation platform |
| Number of Channels | 8 differential analog input channels |
| Input Signal Ranges | 4-20 mA (current) / 1-5 V DC (voltage) |
| Resolution | 12 bits, linear |
| Input Impedance | 250 Ω ±0.01% (current) / >20 MΩ (voltage) |
| Absolute Maximum Input | 25 mA / 50 V DC |
| Accuracy | ±0.05% of full scale (max. ±0.1% FS) |
| Linearity Error | ±0.04% |
| Temperature Drift | ±0.0025% FS/°C (≤0.005% FS/°C max.) |
| Common Mode Rejection | >72 dB at 60 Hz |
| Filter Type | Single-pole low-pass, -3 dB at 15 Hz (±20%) |
| Channel-to-Bus Isolation | 1000 V DC (3000 V DC for 60 s withstand) |
| Inter-Channel Isolation | 30 V DC |
| Update Time | 5 ms (full 8-channel scan) |
| Addressing Requirement | 9 input words |
| Fault Detection | Broken wire (4-20 mA) / Undervoltage (1-5 V) |
| Local Signaling | 1 green (bus active), 1 red (external fault), 8 green (channel on), 8 red (channel fault) LEDs |
| Bus Current Requirement | 240 mA |
| Power Dissipation | 2 W |
| Module Format | Standard (single-slot Quantum module) |
| Weight | 0.3 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95% RH, non-condensing |
| Operating Altitude | ≤ 5000 m |
| Certifications | UL 508, CSA C22.2 No. 142, FM Class 1 Div 2, cUL |
| EMC Immunity | 4 kV ESD contact / 8 kV air (IEC 801-2); 10 V/m radiated (IEC 801-3) |
| Lifecycle Status | Discontinued (sales ended 31 Dec 2022; end-of-service 31 Dec 2030) |
Technical Principles and Innovative Values
- Innovation Point 1: Differential Input Architecture for Noise Immunity. The Schneider 140ACI03000 employs 8 fully differential input channels, where each channel measures the voltage difference between its positive and negative terminals. Unlike single-ended inputs that reference a shared ground, this differential design rejects common-mode noise picked up along long field cable runs—delivering clean signal acquisition even in electrically hostile environments with VFDs, switchgear, and high-power motor feeders.
- Innovation Point 2: 12-Bit Linear Conversion with Low Temperature Drift. Each channel on the Schneider 140ACI03000 performs 12-bit analog-to-digital conversion with a typical accuracy of ±0.05% of full scale and a temperature drift of only ±0.0025% FS/°C. This means that across the entire 0-60 °C operating range, the measurement error grows by less than 0.15%—ensuring that critical control loops remain stable whether the cabinet is in a cold Siberian winter or a scorching desert summer.
- Innovation Point 3: 1000 V Galvanic Isolation. The channel-to-bus isolation of 1000 V DC (with a 3000 V DC / 60-second withstand) and 30 V DC inter-channel isolation in the Schneider 140ACI03000 create a robust barrier that blocks ground loops, surge transients, and common-mode interference. This protects the sensitive Quantum controller backplane from electrical faults on the field side while preventing a fault on one channel from propagating to its neighbors.
- Innovation Point 4: Integrated 15 Hz Low-Pass Filter. The Schneider 140ACI03000 incorporates a single-pole low-pass filter with a -3 dB cutoff at 15 Hz (±20%). This hardware filter attenuates high-frequency noise—such as VFD switching harmonics and radio-frequency interference—before the signal reaches the ADC, eliminating the need for external signal conditioning and ensuring that only genuine process variations are measured.
- Innovation Point 5: Proactive Per-Channel Diagnostics. The Schneider 140ACI03000 continuously monitors each channel for broken-wire conditions (in 4-20 mA mode) and undervoltage (in 1-5 V mode). When a fault is detected, the module illuminates the corresponding red channel-fault LED and reports the condition to the controller. This granular diagnostic capability reduces mean time to repair (MTTR) from hours to minutes, as technicians can immediately identify the exact failed loop without systematic troubleshooting.
