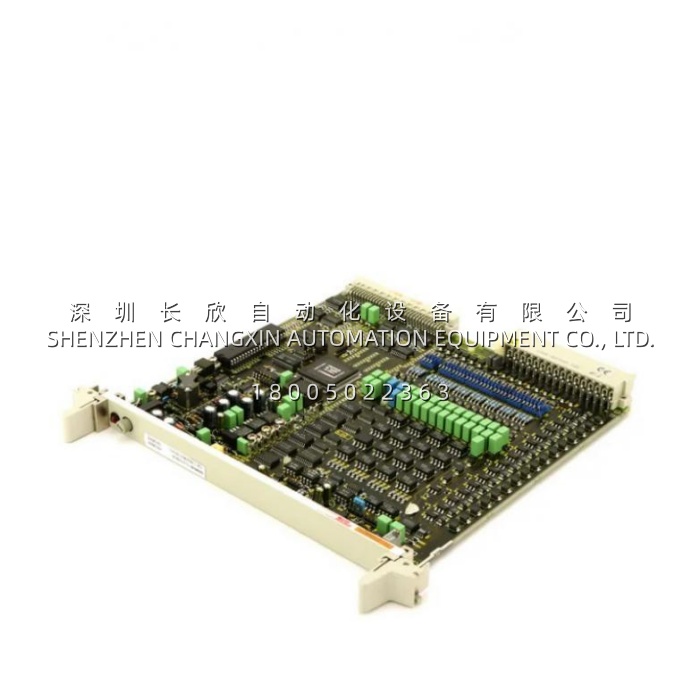

SIEMENS 6DP1230-8CC FUM230 Analog Input Module for TELEPERM XP DCS

Application Scenarios

In a 1000 MW ultra-supercritical coal-fired power plant in Guangdong Province, the boiler’s coordinated control system (CCS) relied on accurate pressure and flow measurements from dozens of 2-wire transmitters scattered across the combustion zone. Over time, ground loops and signal drift plagued the legacy I/O system, causing the plant’s automatic generation control (AGC) to deviate from grid dispatch targets. During a major DCS retrofit, engineers replaced the aging analog input cards with the SIEMENS 6DP1230-8CC FUM230 modules. The module’s built-in transducer supply directly powered the field transmitters, eliminating ground loop issues, while its ±0.1% full-scale accuracy restored measurement fidelity to within design specifications. The plant’s instrumentation lead reported: “With the SIEMENS 6DP1230-8CC, our AGC response went from ±3 MW deviation to consistently within ±1 MW. The grid operator stopped penalizing us for control performance.” This case demonstrates how the SIEMENS 6DP1230-8CC transforms signal chain reliability in thermal power applications.

The module has also proven its value in nuclear island instrumentation upgrades. In a CPR1000 nuclear power plant project, the SPPA-T2000 platform (the successor to TELEPERM XP) employed the SIEMENS 6DP1230-8CC family for collecting 4–20 mA signals from critical flow transmitters, replacing an intermediate PLC conversion stage that introduced additional failure points . The direct analog input capability of the SIEMENS 6DP1230-8CC simplified the architecture and improved system reliability – a critical requirement in nuclear safety-related applications.

Parameters

Technical Principles and Innovative Values

Innovation Point 1: Integrated Transducer Power Supply with Monitoring
The SIEMENS 6DP1230-8CC incorporates a 24 V DC transducer supply directly on the module, eliminating the need for external power distribution hardware for 2-wire transmitters . This integration reduces cabinet space requirements by up to 40% compared to systems requiring separate power supply modules. The built-in supply monitoring continuously verifies transmitter health – if a field device loses power or experiences a short circuit, the SIEMENS 6DP1230-8CC immediately reports the fault to the control system, enabling rapid troubleshooting .

Innovation Point 2: Four Configurable Limit Values Per Channel
Unlike typical analog modules that offer only high/low alarms, the SIEMENS 6DP1230-8CC provides up to four independently configurable limit values per input channel . This allows process engineers to define multiple alarm thresholds (e.g., pre-alarm, trip, high-high, and rate-of-change limits) without consuming CPU processing power. In turbine supervisory applications, these limits can be set to trigger pre-trip warnings at 90% of setpoint and emergency trips at 105%, providing layered protection.

Innovation Point 3: Comprehensive Signal Conditioning and Correction
The SIEMENS 6DP1230-8CC includes built-in signal correction algorithms that compensate for non-linearities in field sensor characteristics . This feature is particularly valuable for flow measurement using orifice plates with square-root extraction – the correction logic reduces CPU workload in the main controller by performing linearization at the I/O level.

Innovation Point 4: Dual-Bus Redundancy Compatibility
The SIEMENS 6DP1230-8CC is engineered for redundant bus system operation, supporting automatic failover between two TELEPERM XP buses . In critical applications such as turbine protection or boiler safety systems, this capability ensures continuous communication even during single bus faults – a requirement for SIL-rated installations. The module’s internal diagnostics monitor bus heartbeat signals and automatically switch to the redundant path without interrupting data acquisition.
