Technical Specifications

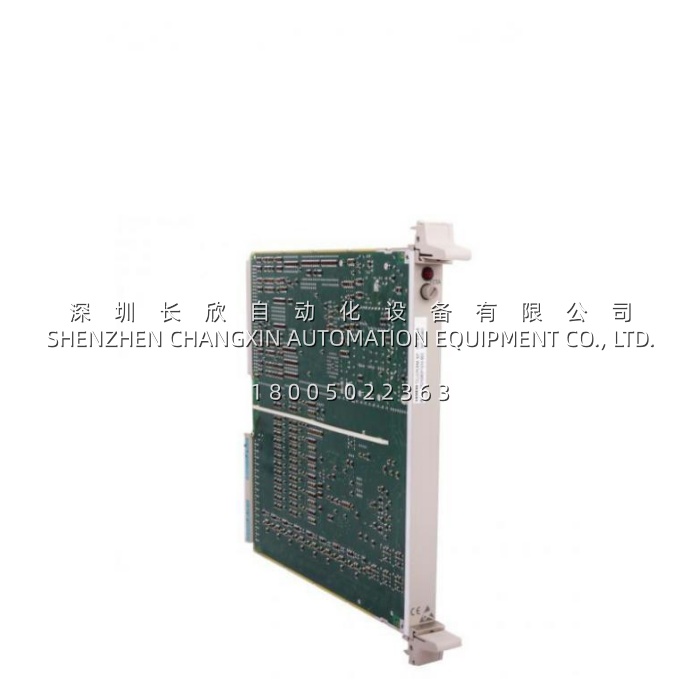

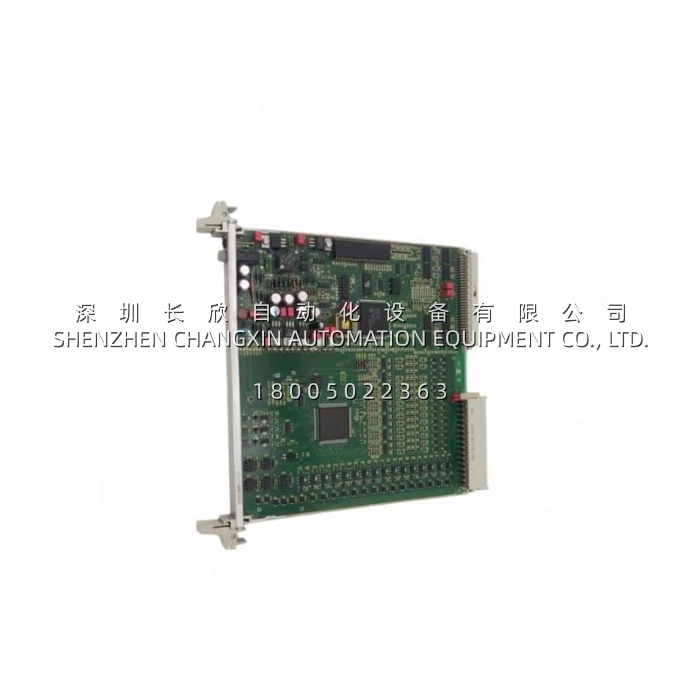

| Parameter Name | Parameter Value |
|---|---|
| Product Model | 6DP1280-8BA |
| Manufacturer | Siemens (FUM280, TELEPERM XP DCS) |
| Product Type | Analog Input / Output Module (with PID loop capability) |
| Analog Input Channels | 8 channels |
| Analog Output Channels | 8 channels |
| Supported Input Types | 4–20 mA, 0–10 V, RTD (Pt100/Pt1000), Thermocouple |
| Resolution | 12-bit + sign |
| Power Supply | 24 V DC (backplane-powered) |
| Communication Bus | TELEPERM XP internal backplane bus |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +70 °C |
| Enclosure Rating | IP20 |
| Installation | TELEPERM XP rack slot, single-slot occupancy |
| Dimensions (approx.) | 140 × 100 × 35 mm |
| Weight (approx.) | 0.3 kg |
Main Features and Advantages
Closed-loop capability at the module level. Unlike standard analog I/O slices that merely pass raw values to a central controller, the 6DP1280-8BA embeds PID regulation logic within the FUM280 firmware. This enables the module to execute autonomous control loops — temperature, pressure, or flow — directly on-board, reducing DCS scan load and shortening loop-cycle latency in time-critical processes.Universal analog signal acceptance. Each of the eight input channels on the 6DP1280-8BA can be individually parameterized for current, voltage, RTD, or thermocouple measurement, with 12-bit-plus-sign resolution ensuring fine-grained process visibility. The eight analog outputs mirror this flexibility, supporting 4–20 mA and 0–10 V drive signals for final control elements such as valve positioners and variable-frequency drives.Backplane integration and single-slot economy. The 6DP1280-8BA draws both power and bus communication from the TELEPERM XP rack backplane, eliminating local power wiring and external communication cabling. Occupying only a single rack slot, it maximizes I/O density per cubicle while preserving the redundant architecture options native to the TELEPERM XP platform.Legacy-system continuity. For operators running long-established TELEPERM XP installations in power plants and process facilities, the BA hardware revision of the 6DP1280-8BA maintains electrical and mechanical interchangeability with preceding FUM280 variants (such as the -8AB), provided firmware compatibility is verified — a critical advantage when sourcing spares for systems where downtime carries high cost.
Application Field
The 6DP1280-8BA is positioned primarily for process industries where the Siemens TELEPERM XP DCS remains the control backbone. In fossil and combined-cycle power plants, the module is routinely deployed on boiler feedwater control, combustion-air damper positioning, and steam-temperature trimming loops, where its on-board PID function decouples fast-acting loops from the central DCS sweep. In chemical and petrochemical plants, the 6DP1280-8BA handles reactor temperature zones, distillation-column pressure balancing, and tank-farm level control, benefiting from the module’s support for both 4–20 mA field transmitters and direct RTD/thermocouple inputs without intermediate isolators.Beyond heavy process, the 6DP1280-8BA finds use in pulp & paper stock-preparation lines, water/wastewater treatment aeration basins, and centralized HVAC plants in large campus facilities where TELEPERM XP was specified during original build. In all these contexts, the module solves a specific problem: delivering high-integrity analog acquisition plus local loop closure in a single DCS-slot footprint, with the signal-type flexibility to adapt a given rack to mixed-field instrument profiles without rewiring the cubicle. For maintenance teams managing 15- to 25-year-old DCS installations, the 6DP1280-8BA is a strategically important spare, bridging obsolescence gaps while preserving the original control philosophy.
