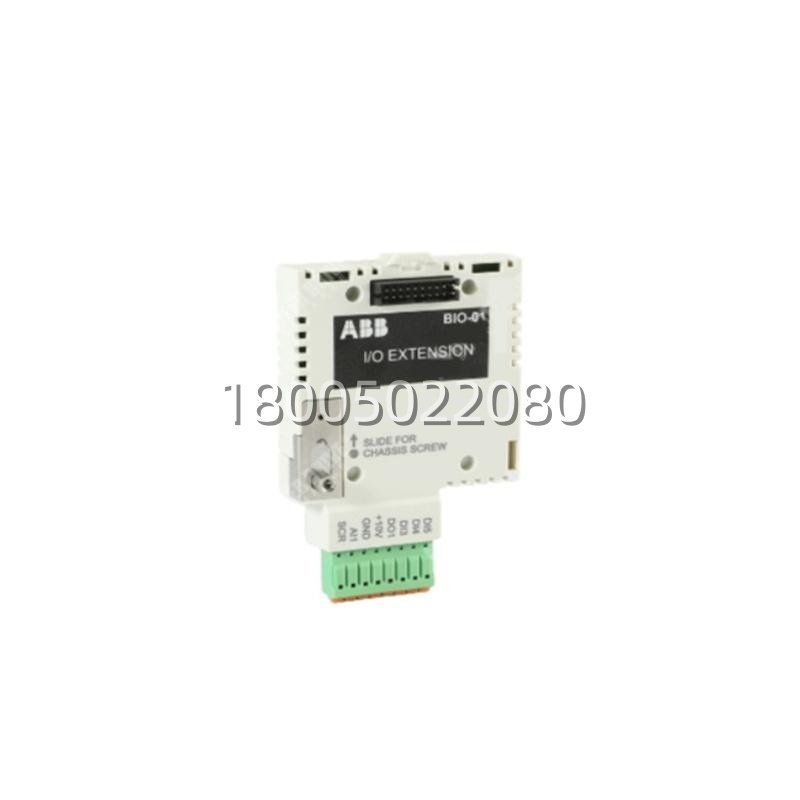

ABB 1KHL178013R0001M BIO01 Digital I/O Expansion Module for Industrial Control Panels

Application Scenarios

Consider a high-volume bottling plant where the central PLC is running out of capacity for additional sensors and actuators. Adding a new control rack is costly and space-prohibitive. The ABB 1KHL178013R0001M BIO01 offers an elegant solution. By mounting this compact module on the existing DIN rail and connecting it via the PROFIBUS DP network, the system instantly gains 16 new digital inputs for bottle-detection sensors and 16 new outputs for solenoid-operated filling nozzles. The ABB 1KHL178013R0001M BIO01 seamlessly integrates with the existing control architecture, eliminating the need for a major hardware overhaul and drastically reducing installation time . For engineers facing I/O constraints in legacy systems, the ABB 1KHL178013R0001M BIO01 delivers a direct, drop-in path to expanded control capability without the complexity of a full system redesign.

Parameters

Technical Principles and Innovative Values

The ABB 1KHL178013R0001M BIO01 is engineered to provide robust, efficient, and reliable digital signal processing, distinguished by several core innovations:

Innovation Point 1: High-Density Channel Architecture. With its capacity to handle 16 digital inputs and 16 outputs, the ABB 1KHL178013R0001M BIO01 offers a remarkable channel density in a compact form factor . This design minimizes the physical footprint within crowded control cabinets, optimizing panel space and reducing overall system complexity.

Innovation Point 2: Dual-Protocol Communication Flexibility. The ABB 1KHL178013R0001M BIO01 supports both PROFIBUS DP and MODBUS RTU communication protocols . This dual-interface capability allows the module to integrate seamlessly into new ABB installations as well as into heterogeneous legacy systems, providing unmatched flexibility and future-proofing for evolving industrial networks.

Innovation Point 3: Robust Industrial Construction. Built for harsh industrial environments, the ABB 1KHL178013R0001M BIO01 operates reliably across a wide temperature range of -25°C to +60°C . Its IP20-rated housing ensures protection against dust and incidental contact, guaranteeing consistent performance in demanding manufacturing floors and process control rooms .

Innovation Point 4: Low-Energy, Low-Maintenance Operation. Consuming a maximum of only 2W, the ABB 1KHL178013R0001M BIO01 minimizes energy overhead . This efficiency, coupled with its solid-state design, contributes to a long operational life and significantly reduces ongoing maintenance costs.
