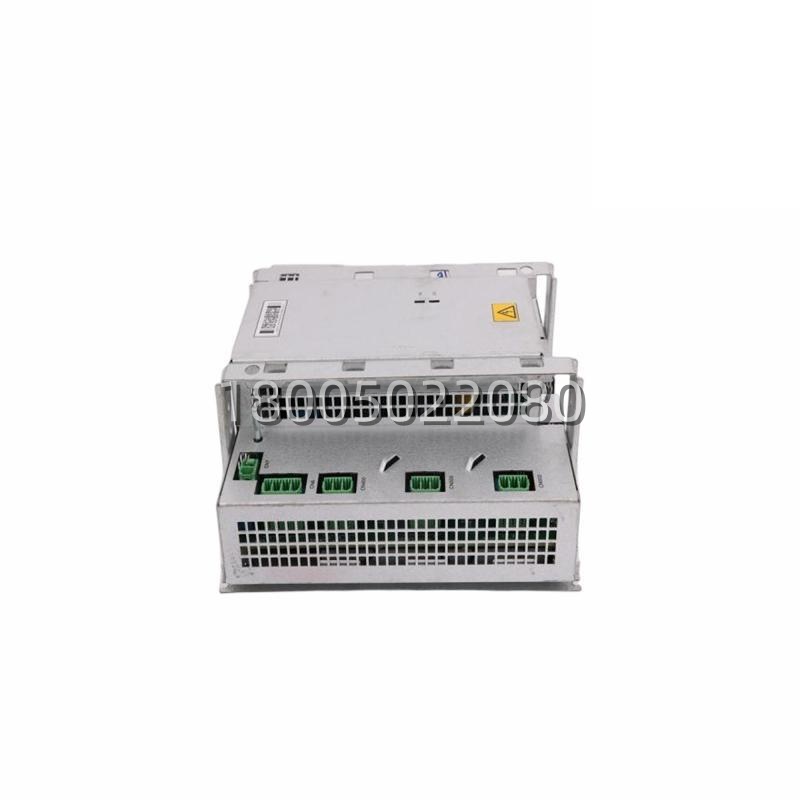

ABB 1MRK000614-AAR01 24V DC Universal Signal Adapter Module

Application Scenarios

In a typical retrofit scenario, an aging PLC cabinet equipped only with hardwired DI/DO terminals must now interface with a new generation of field instruments that output 4-20mA analog signals—creating an immediate “signal mismatch” that prevents integration. Plant engineers install the ABB 1MRK000614-AAR01 to bridge this gap: the module accepts analog inputs from the new instruments, conditions them, and outputs corresponding digital signals to the legacy PLC’s existing terminals . Similarly, when an ABB protection relay communicates via Modbus RS-485 but the central SCADA system expects discrete hardwired statuses, the ABB 1MRK000614-AAR01 converts Modbus register values into dry contact outputs that the SCADA can read directly . For maintenance teams managing heterogeneous automation assets, the ABB 1MRK000614-AAR01 eliminates the need for costly panel rewiring or controller replacement when integrating new equipment.

Parameters

Technical Principles and Innovative Values

The ABB 1MRK000614-AAR01 is designed for practical interoperability rather than high-speed processing, delivering value through its ability to solve real-world connectivity problems that arise in mixed-vendor automation environments.

Innovation Point 1: Bidirectional Signal Translation. Unlike simple signal conditioners, the ABB 1MRK000614-AAR01 can translate in both directions: converting analog field signals (4-20mA or 0-10V) into Modbus registers for digital networks, or reading Modbus data and converting it to analog voltage/current outputs for legacy actuators . This bi-directional capability makes the module a universal “protocol and signal bridge” rather than a one-way translator.

Innovation Point 2: Mixed Digital/Analog Channel Flexibility. The 4-input/4-output channel architecture allows each channel to be independently configured for digital or analog operation depending on wiring and application . This flexibility means a single ABB 1MRK000614-AAR01 can handle multiple signal types within one compact module, reducing the number of separate interface devices required in a control cabinet.

Innovation Point 3: Compact DIN-Rail Footprint. Measuring approximately 80-120mm in width and occupying minimal depth, the ABB 1MRK000614-AAR01 fits into crowded control cabinets without requiring panel modifications . Its IP20-rated housing ensures protection against dust and incidental contact in typical indoor industrial environments .

Innovation Point 4: Legacy Equipment “Life-Extension” Enabler. By allowing newer field instruments to communicate with older DCS and PLC systems, the ABB 1MRK000614-AAR01 enables plants to incrementally upgrade their instrumentation without replacing the entire control infrastructure—preserving validated systems and avoiding costly, disruptive migrations.

Application Cases and Industry Value

Case 1: Pump Station Retrofit Integration. A water treatment plant upgraded several flow meters to modern models with 4-20mA outputs, but the existing PLC cabinet only accepted dry-contact inputs. Installing the ABB 1MRK000614-AAR01 allowed the analog signals to be converted to discrete digital states that the legacy controller could recognize, enabling accurate flow monitoring without a PLC upgrade . The plant achieved improved flow measurement accuracy at a fraction of the cost of a full control system replacement.

Case 2: Power Substation Protocol Bridging. In a transmission substation, protective relays communicated via Modbus RS-485, but the station SCADA system was configured to read binary contact statuses via hardwired inputs. Deploying the ABB 1MRK000614-AAR01 provided a cost-effective way to convert relay status registers into dry contact closures that the SCADA could interpret . This enabled centralized monitoring of protection relay health without modifying the existing SCADA front-end.
