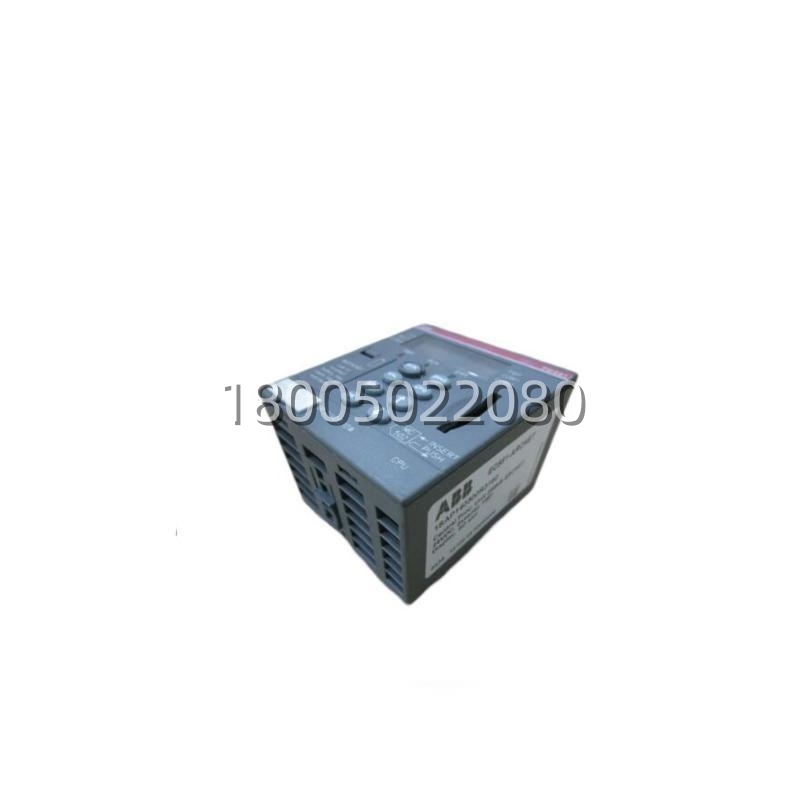

ABB 1SAP140500R3160 EC581-ARCNET CPU Module – AC500 PLC with Deterministic ARCNET Token Bus Interface

Technical Specifications

Main Features and Advantages

Deterministic ARCNET that Ethernet cannot imitate: The defining trait of the ABB 1SAP140500R3160​ is the onboard ARCNET token-bus controller. Unlike Ethernet’s CSMA/CD (collision-sense, non-deterministic at the cycle level), ARCNET runs a token-passing scheme where each node gets a bounded time slice—this is why printing-press builders and paper-machine OEMs specified ARCNET for multi-CPU sync and high-speed I/O refresh decades ago, and why those machines still demand an ARCNET CPU today. The EC581-ARCNET​ delivers 2.5 Mbps and 5 Mbps selectable, matching legacy backbones without external gateway boxes. Swapping to a standard AC500 Ethernet CPU would break the cycle contract and force a network-layer retrofit; the ABB 1SAP140500R3160​ avoids that entirely.Execution performance for mid-size logic: At ~0.05 ms per 1,000 Boolean instructions, the ABB 1SAP140500R3160​ handles mid-size AC500 programs comfortably—sectional-drive interlocks, press feeder logic, wrapper cam profiles, ARCNET peer-data exchange—without bumping into scan-time ceilings. The 256 KB Flash + 288 KB RAM split gives room for structured text / function blocks on top of ladder, and battery-backed SRAM retains retentive tags across power cycles so the press can resume from last-known state rather than a cold default.Front-panel LCD as a field lifesaver: The EC581-ARCNET​ carries a small LCD on the front fascia with RUN / ERR / ARCNET LEDs, which sounds trivial until you are standing at a press-side cabinet at 2 a.m. without a laptop. The LCD can show error codes, ARCNET node status, and I/O-force states without Automation Builder connected—shaving 20–30 minutes off a fault-diagnosis session compared to a headless CPU where you must drag a PG to the cabinet, power up, launch software, go online, and read the diag buffer. For plants where the AC500 rack lives inside a machine-mounted enclosure rather than a main MCC room, this is a real uptime advantage.SD slot + FBP + 2× serial in one footprint: Beyond ARCNET, the ABB 1SAP140500R3160​ retains the AC500 EC581 baseline I/O: an SD card for program clone / data-log extract (useful when the machine moves between sites or when you want to pull production logs without opening the network), FBP (field bus plug) interface for ABB’s snap-on communication modules (Profibus, Ethernet/IP, etc. can be added as FBP piggybacks if the machine later grows a second network), and two RS232/485 ports that commonly carry Modbus RTU master to a VFD bank or RTU slave to a SCADA HMI. One CPU, three auxiliary channels, no expansion rack consumed.Mechanical and thermal discipline: DIN-rail mount (35 mm TH35-15), IP20 for cabinet interior, 0–60 °C rating and <8 W dissipation mean the ABB 1SAP140500R3160​ tucks into Machine-Builders’ standard enclosures without forced air in most cases. The 0.22 kg mass and ~127 mm depth keep the AC500 rack footprint tight—important on press-side or wrapper-side cabinets where panel space is at a premium and every millimetre of DIN rail is accounted.Sibling distinction (R3160 vs. R3260): ABB also sells 1SAP140500R3260​ as an “EC581-ARCNET” but that variant is a 25 KB ARCNET communication coprocessor (offloading ARCNET stack from main CPU) rather than the full CPU itself. The ABB 1SAP140500R3160​ reviewed here is the main CPU with 256 KB program memory and ARCNET integrated. Ordering the wrong R-suffix is the single most common mistake on this PN—procurement should confirm “main CPU” vs. “comm-coprocessor” against the cabinet electrical drawing before placing the PO.

Application Field

The ABB 1SAP140500R3160​ (EC581-ARCNET) is most at home in AC500-based automation nodes where an ARCNET token-bus backbone is the binding network. The classic catchment is European-built machinery from the late-1990s through 2010s: commercial printing presses (sheet-fed and web, where multiple AC500 CPUs sync folder, feeder, inline finishing via ARCNET), paper-machine sectional drives and stock-prep lines (ARSNET historically popular for drive-to-drive sync before Profinet IRT took over), high-speed packaging wrappers and cartoners (cam-sync across multiple stations demands bounded-cycle comms), and specialty converting lines (label, foil, film) where the OEM specified ARCNET for deterministic I/O refresh across distributed AC500 drops.Beyond machinery OEM, the ABB 1SAP140500R3160​ also appears in process-retrofit contexts: power-plant BOP (balance-of-plant) auxiliaries where an AC500 ARCNET segment was laid decades ago for turbine/boiler auxiliary control and remains the path of least resistance; water/wastewater remote pump stations chained on ARCNET before Ethernet reached the edge; and legacy building-automation or material-handling networks where ABB AC500 was the specified PLC and ARCNET was chosen for its token-bound determinism in multi-node topologies.In almost every case the purchasing logic is the same: the machine or process works, the ARCNET backbone works, and the cost to re-network to Profinet/EtherCAT (new cabling, new drop CPUs, re-certification, machine downtime) dwarfs the cost of keeping one spare EC581-ARCNET​ on the shelf. For single-sourced press lines or wrapper lines where an AC500 CPU failure stops the shift, the ABB 1SAP140500R3160​ is the targeted spare that keeps the ARCNET token circulating and the line running.
