Application Scenarios
In a large petrochemical refinery, dozens of temperature, pressure, and flow transmitters feed critical process data to the DCS—any signal drift or ground loop interference can trigger false alarms or, worse, unsafe operating conditions. Plant engineers deploying the ABB 3BHB001336R0001 in their 800xA control cabinets reported a 50% reduction in nuisance trips related to signal interference. The module’s ability to accept thermocouple, RTD, and 4-20mA inputs on the same board eliminated the need for multiple signal conditioning cards, reducing cabinet space requirements by nearly 30% . One maintenance supervisor noted that “this single board replaced three different modules in our old configuration,” streamlining both hardware inventory and troubleshooting procedures.
Parameters
| Main Parameters | Value/Description |
|---|---|

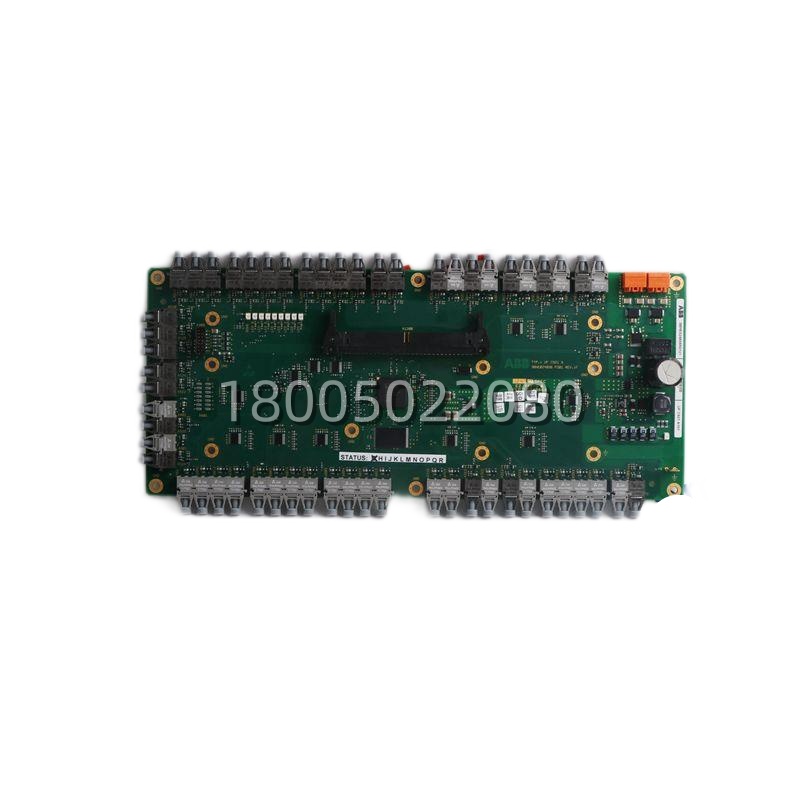

| Product Model | ABB 3BHB001336R0001 (UNS1860B-P V1) |
| Manufacturer | ABB Switzerland / Sweden |
| Product Category | Measuring Interface & Processor Board |
| Processor | 32-bit RISC industrial microcontroller |
| Analog Input Channels | 8 (differential) |
| Analog Input Types | Voltage ±10V/±20V; Current ±20mA/±40mA; RTD (Pt100/Pt500/NI100/NI120); Thermocouple (J/K/T/E/N/R/S/B) |
| Analog Input Accuracy | ±0.1% of full scale |
| Digital I/O | 8 channels, 24V DC, 2A, switching frequency up to 10 kHz |
| Communication Interfaces | PROFIBUS DP/V1 (standard); RS-485/Modbus RTU; Ethernet (depending on firmware version) |
| Electrical Isolation | Triple isolation: 1500V RMS (channel-to-channel, channel-to-logic, power-to-ground) |
| Power Supply | 24V DC ±10% |
| Power Consumption | <5W |
| Operating Temperature | -40°C to +70°C |
| Dimensions (approx.) | 150mm × 100mm × 25mm |
| Weight | 0.15 – 0.42 kg (depending on configuration) |
| Certifications | CE, UL, IEC 61010, RoHS |
| Compatible Systems | ABB 800xA, Advant OCS, MOD 300 Series |
Technical Principles and Innovative Values
Innovation Point 1: Hybrid Processor-Measurement Architecture Unlike conventional I/O modules that merely digitize signals and pass them to a separate processor, the ABB 3BHB001336R0001 integrates signal conditioning, analog-to-digital conversion, and local data processing on a single board. This eliminates communication bottlenecks between measurement front-ends and control processors—critical for applications requiring fast control loops such as turbine inlet temperature monitoring. The onboard 32-bit RISC processor can pre-process raw data (filtering, linearization, scaling) before transmitting to the DCS host, reducing host CPU load by up to 20% .
Innovation Point 2: Universal Input Flexibility The ABB 3BHB001336R0001 supports eight fully configurable analog input channels that accept voltage, current, RTD, or thermocouple signals per-channel. This eliminates the need to purchase separate input modules for different sensor types, slashing spare parts inventory by up to 40% for facilities using mixed signal types. The per-channel software configurability also enables rapid field reconfiguration without hardware changes .
Innovation Point 3: Triple-Isolation for High-EMI Environments In industrial facilities with variable-frequency drives, large motors, and welding equipment, ground loops and common-mode noise corrupt sensitive sensor signals. The ABB 3BHB001336R0001 implements three independent isolation barriers: channel-to-channel (prevents cross-talk), channel-to-logic (protects the processor), and power-to-ground (suppresses conducted EMI). With 1500V RMS withstand voltage, the module ensures measurement integrity even when installed adjacent to 6.6kV switchgear .
Innovation Point 4: Extended Temperature Range and Reliability The ABB 3BHB001336R0001 operates reliably from -40°C (outdoor winter start-up) to +70°C (summer cabinet temperatures in direct sunlight). This wide operating range, combined with conformal coating on the PCB, makes the board suitable for both Arctic LNG plants and Middle Eastern refining facilities—environments where consumer-grade electronics would fail within months .
Application Cases and Industry Value
Case 1: Power Generation – 600MW Thermal Power Plant Turbine Monitoring A coal-fired power station in Southeast Asia upgraded its turbine supervisory instrumentation with the ABB 3BHB001336R0001 to monitor 6 bearing metal temperatures (RTD), 4 steam extraction line temperatures (thermocouple type K), and 2 bearing housing vibrations (via separate signal conditioning front-end). The module’s ±0.1% accuracy and digital filtering enabled the plant to implement a predictive maintenance program that caught a gradual temperature rise in the high-pressure turbine bearing three months before alarm thresholds were reached. This early detection allowed scheduled maintenance during a planned outage, avoiding an estimated $2 million loss from forced shutdown .
Case 2: Chemical Processing – Ethylene Cracker Furnace Control An ethylene production facility integrated the ABB 3BHB001336R0001 into their ABB 800xA DCS to monitor 20 furnace tube temperatures and 8 flue gas oxygen sensors. The board’s ability to accept both thermocouple and 4-20mA signals on the same module simplified cabinet wiring and reduced installation labor by 25 hours. Over 24 months of operation, plant engineers reported zero board failures despite ambient cabinet temperatures regularly exceeding 55°C during summer months—a testament to the module’s rugged design and thermal derating characteristics .
