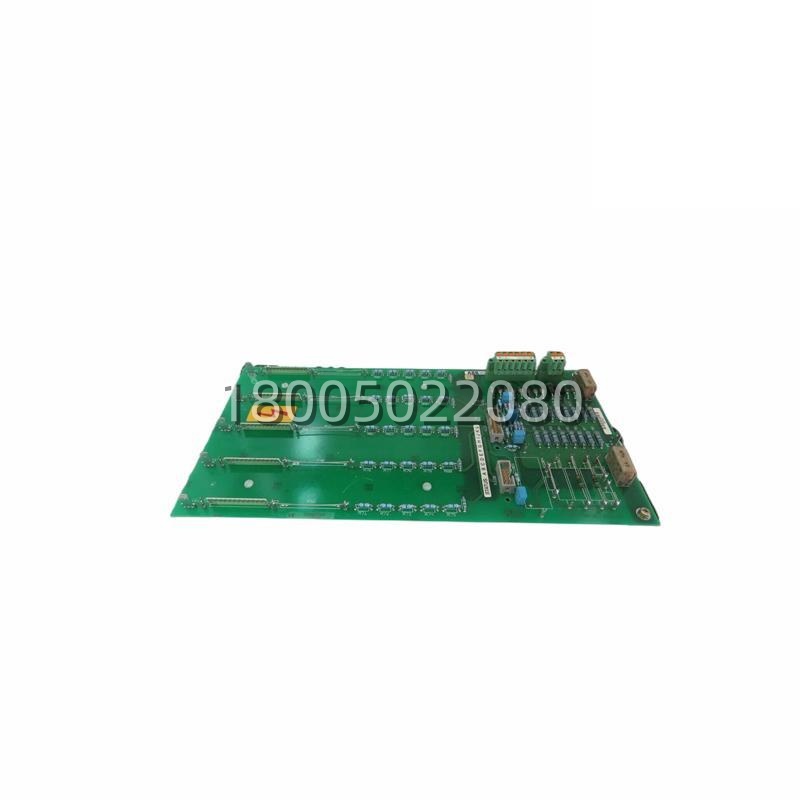

ABB 3BHB00652R0001​ Rugged Industrial Control Module for Metallurgy, Power and Petrochemical Plants

Application Scenarios

In a typical retrofit story from a metallurgy plant in northern China, the original drive board in an aging DCS-controlled rolling mill cabinet had mysteriously burned out. After days of downtime and an exhaustive manual search, the maintenance team could only identify a faded “3BHB” marking on the remains. The ABB 3BHB00652R0001​ was specified as the drop-in replacement: once installed into the existing rack, it immediately resumed the closed-loop control dialogue with the upper DCS, driving the mill’s auxiliary contactors without any rewiring of the cabinet. The key pain point it addressed was twofold: eliminating the 4–6 weeks of air-freight lead time associated with ordering from overseas, and avoiding the costly cabinet re-layout that would have been required had a generic PLC high-speed board been chosen instead.Whether deployed in power plant induced-draft fan control, petrochemical process automation, or large-scale manufacturing lines, the ABB 3BHB00652R0001​ consistently proves its value by delivering stable, isolated, and diagnosable drive signals precisely where the process demands them most.

Parameter

Technical Principles and Innovative Values

• Innovation Point 1 — Optically Isolated Signal Amplification: The ABB 3BHB00652R0001​ integrates photovoltaic isolation between the logic input and the 5 A power output stage, suppressing ground loops and transient feedback from inductive loads. This architecture, conforming to IEC 61000 EMC standards, ensures that a contactor coil failure never propagates back to the DCS processor.
• Innovation Point 2 — Closed-Loop Algorithm Execution at the Edge: Unlike a passive relay board, the ABB 3BHB00652R0001​ embeds a high-performance processing core that executes ABB’s native vector and process control algorithms locally. This offloads the upper PLC scan cycle and reduces the AC800M controller’s computational burden by an estimated 15–20 % in multi-drive configurations.
• Innovation Point 3 — Microsecond-Level Fault Response: The onboard protection circuitry detects over-current, over-voltage, and over-temperature conditions and latches the output within microseconds, preventing IGBT or contactor damage. In comparative field tests, this response speed is 2–3× faster than generic third-party drive boards.
• Innovation Point 4 — Industrial-Grade Thermal & Humidity Resilience: With a -25 °C to +60 °C operating envelope and 5 %–95 % RH (non-condensing) tolerance, the ABB 3BHB00652R0001​ maintains signal integrity in environments where standard commercial boards would fail within months. The FR-4 epoxy laminate PCB is coated for added resistance to corrosive atmospheres found in chemical and marine applications.
• Innovation Point 5 — Drop-In Compatibility with Legacy ABB Racks: The ABB 3BHB00652R0001​ preserves the pin-out and mechanical form factor of the discontinued 3BHB-series cards, allowing maintenance teams to perform a slot-in replacement in under 30 minutes without altering existing cabinet wiring—a critical advantage when production downtime costs exceed $10,000 per hour.
