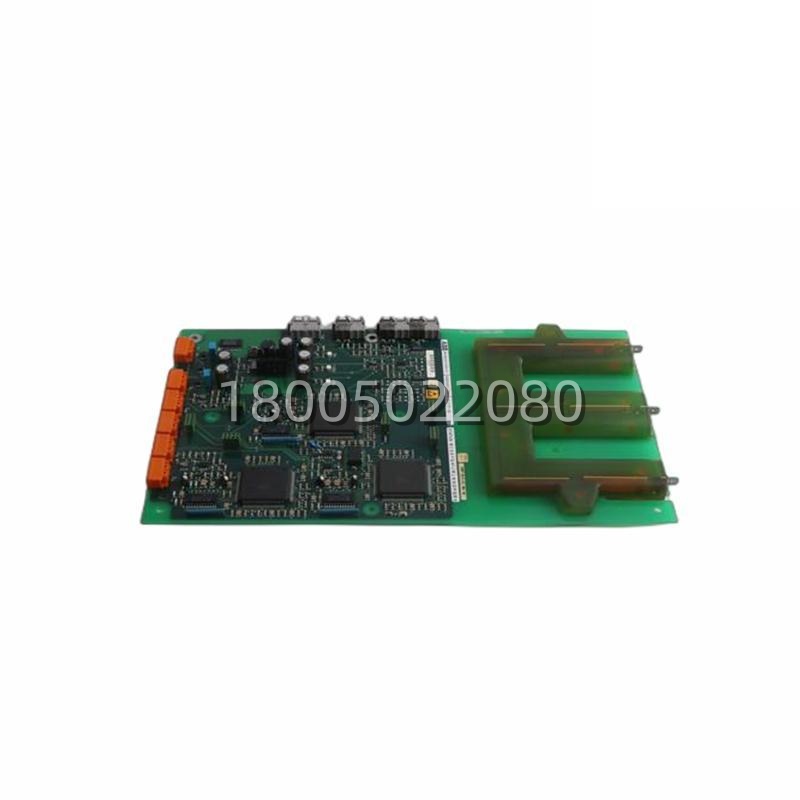

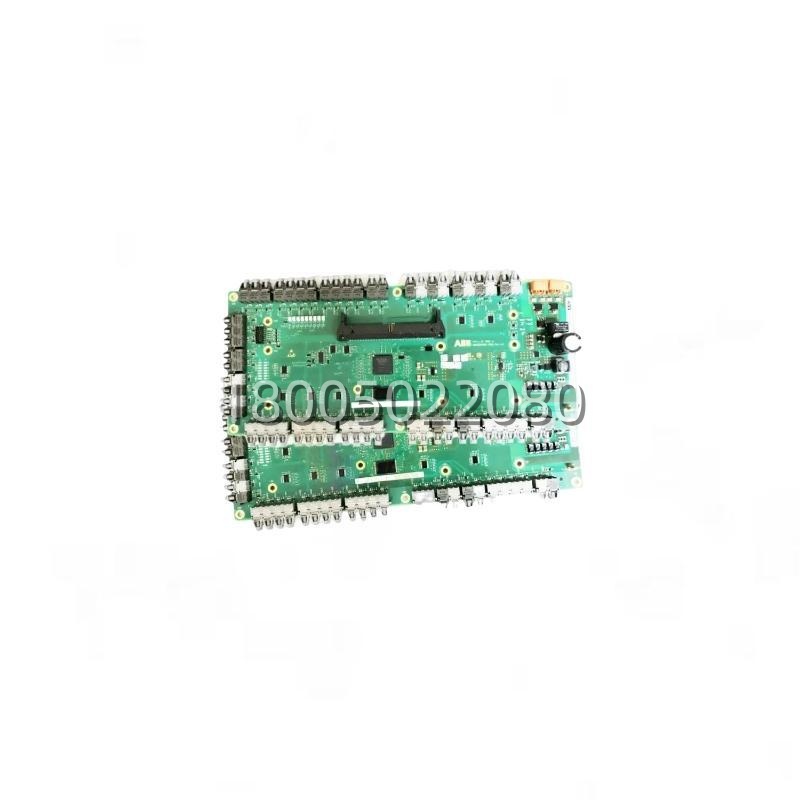

ABB 3BHB002916R0001 UFC721AE: High Voltage Frequency Conversion to PC Interface Board for ACS800/ACS880 HV Drive Systems

Technical Specifications

Main Features and Advantages

The ABB 3BHB002916R0001 UFC721AE​ delivers a suite of engineering advantages that position it as the definitive interface solution for high voltage frequency conversion systems, directly addressing the pain points of signal integrity, protocol fragmentation, and cabinet EMI that plague conventional approaches.Superior Signal Isolation and EMC Immunity:Every analog channel on the ABB 3BHB002916R0001 UFC721AE​ features 2.5kV channel-to-channel isolation, while field-to-system isolation reaches 1500V AC. Encased in a metallic EMC-shielded housing, the board maintains signal fidelity even when mounted inches away from IGBT power stacks undergoing high-current commutation. This isolation architecture far surpasses generic terminal block plus PLC analog card combinations, ensuring that control commands and status feedback remain uncorrupted in the electrically hostile interior of a high voltage drive cabinet.Integrated Multi-Protocol Communication:The ABB 3BHB002916R0001 UFC721AE​ natively embeds Modbus RTU, Modbus TCP, and Ethernet interfaces, directly bridging field-level AI/DI/DO signals with the upper control PC station or DCS network. This eliminates the need for external protocol gateways, reducing cabinet footprint, wiring complexity, and failure points. Engineers can integrate the ABB 3BHB002916R0001 UFC721AE​ into ABB System 800xA, AC 800M, and Advant OCS architectures, as well as third-party DCS/SCADA platforms, without additional translation hardware.High-Density Integrated I/O:Consolidating 12 isolated analog inputs, 24 digital inputs, and 16 digital outputs on a single board, the ABB 3BHB002916R0001 UFC721AE​ replaces what would otherwise require multiple generic I/O modules. This integration density reduces spare parts inventory, simplifies cabinet layout, and streamlines commissioning. The board acquires 4–20mA current signals, 0–10V voltage signals, and temperature inputs from PT100 sensors or K-type thermocouples, feeding the host controller with digitized process measurements at ±0.05% to ±0.1% full-scale accuracy.Extreme Environment Resilience:Operating across a -40°C to +85°C temperature range and rated for 690V input environments, the ABB 3BHB002916R0001 UFC721AE​ is built for deployment in metallurgy plants, underground mines, offshore platforms, and desert solar pumping stations. The industrial-grade components, conformal coating options, and robust 24V DC power input with 18–32V redundancy tolerance ensure uninterrupted service where process continuity is non-negotiable.Diagnostic and Maintenance Efficiency:LED status indicators on the ABB 3BHB002916R0001 UFC721AE​ provide at-a-glance diagnostics for power, channel health, and fault conditions. Combined with the board’s DIN rail or rack slot mounting and hot-swappable design in supported configurations, maintenance crews can replace a suspect unit without extensive downtime, dramatically reducing the mean time to repair (MTTR) for critical high voltage drive assets.
