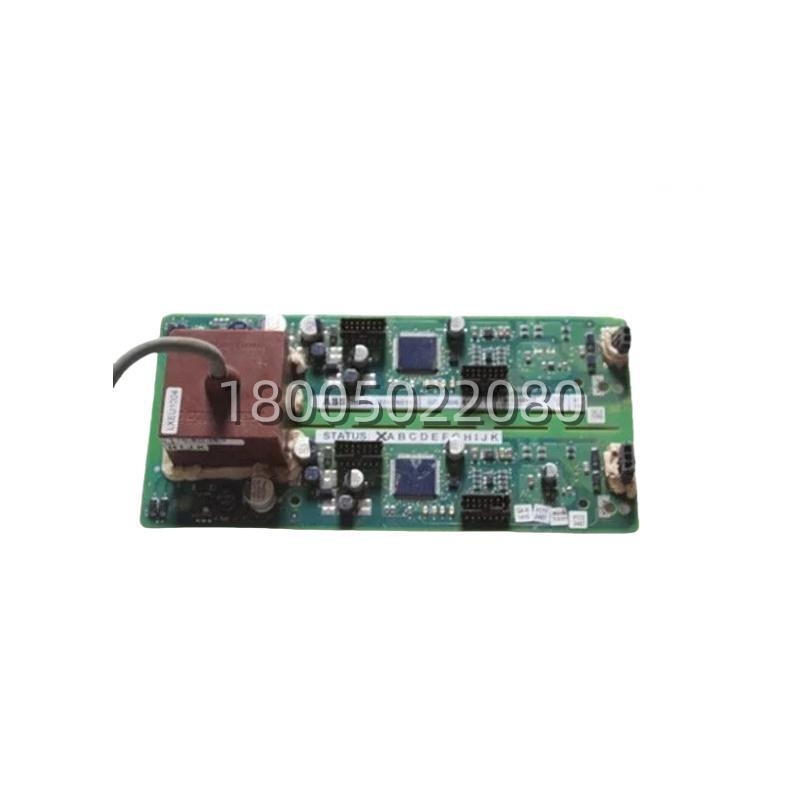

ABB 3BHE02876R0101​ High-Efficiency Industrial Inverter Module for Heavy-Duty Motor Drives

Application Scenarios

In a typical emergency retrofit at a steel plant in Taiyuan, a 150 kW induced-draft fan drive suddenly reported a “module fault” with distorted output waveforms, bringing the sintering line to a standstill. The maintenance team identified ABB 3BHE02876R0101​ as the failing power unit inside the ACS-class drive cabinet. Because the module is mechanically and electrically compatible with the existing cabinet bus structure, the replacement was completed within half a day—restoring full PWM drive capability to the 200 kW motor without rewiring the cabinet or recalibrating the upper DCS. The key pain point it resolved was twofold: eliminating the risk of thermal hotspot failure common to refurbished IGBT modules with hand-soldered joints, and guaranteeing the >98% conversion efficiency required to keep the plant’s energy consumption within target. Whether deployed in mining, metallurgy, water treatment, or large HVAC systems, the ABB 3BHE02876R0101​ consistently proves its value as the “power heart” of industrial drive cabinets.

Parameter

⚠️ Electrical ratings—including exact voltage class, power level, and output current—must be verified against the specific host drive cabinet’s BOM and ABB’s official manual before commissioning. ABB has applied this material number across multiple drive configurations.

Technical Principles and Innovative Values

• Innovation Point 1 — High-Efficiency IGBT Power Stage: The ABB 3BHE02876R0101​ employs ABB-selected IGBT semiconductors with generous derating margins, achieving ≥ 98% conversion efficiency under typical load. This translates directly into lower energy bills and reduced heat dissipation requirements for the host cabinet.
• Innovation Point 2 — Advanced PWM Vector Control: The onboard modulation engine executes sophisticated space-vector PWM algorithms, delivering fast torque response even under shock loads such as those found in rolling mills and crushers. The ABB 3BHE02876R0101​ maintains stable output waveform quality throughout the 0–400 Hz (up to 600 Hz) adjustable range.
• Innovation Point 3 — Integrated Multi-Layer Protection: Unlike generic power modules, the ABB 3BHE02876R0101​ integrates over-current, over-voltage, under-voltage, overload, and IGBT drive protection directly into the power unit. This shields both the module itself and the downstream motor from catastrophic fault propagation.
• Innovation Point 4 — Industrial-Grade Environmental Resilience: With an IP54 protection class and a -25 °C to +60 °C operating envelope, the ABB 3BHE02876R0101​ is built for harsh industrial realities—dust, vibration, and temperature swings that would rapidly degrade commercial-grade drive components.
• Innovation Point 5 — Seamless Host System Integration: Native support for Modbus TCP/IP and RS485 allows the ABB 3BHE02876R0101​ to communicate directly with ABB AC 800M controllers, System 800xA DCS, and third-party SCADA platforms, enabling real-time monitoring, parameter adjustment, and predictive maintenance without additional gateway hardware.

Application Cases and Industry Value

Case 1 — Steel Plant Sintering Line Fan Drive RestorationAt a major steel facility in Shanxi Province, the induced-draft fan drive cabinet—equipped with a ABB 3BHE02876R0101​ power module—experienced a sudden IGBT failure from a refurbished competitor module that had been installed six months earlier. After replacing it with a genuine ABB original surplus ABB 3BHE02876R0101, the plant recorded: (1) a 98.2% sustained conversion efficiency, confirmed via power analyzer; (2) zero spurious trip events over a 12-month observation period; and (3) a measurable 3.8% reduction in fan energy consumption due to the module’s cleaner PWM output waveform reducing motor copper losses. The plant’s maintenance director noted that the original module’s conformal coating and IGBT derating margin made the difference between “surviving” and “thriving” in the high-dust, high-EMI environment.Case 2 — Mining Conveyor System UpgradeIn a large iron ore conveyor system, the ABB 3BHE02876R0101​ was deployed as the power stage for a 160 kW belt conveyor drive. The module’s ability to deliver high starting torque at near-zero frequency allowed for smooth, controlled conveyor startup—eliminating the mechanical shock loads that had previously caused repeated gearbox failures. Combined with Modbus TCP reporting to the central DCS, the operation team gained real-time visibility into module temperature, output current, and IGBT health, enabling condition-based maintenance that extended the conveyor’s mean time between failures (MTBF) by an estimated 35%.

Related Product Combination Solutions

For engineers designing or servicing ABB-based drive and automation systems, the following models are frequently specified alongside the ABB 3BHE02876R0101:

• ABB 3BHE028761R1001​ (Gate Driver GD C806A) — The gate driver module that sits between the main CPU’s fiber-optic pulses and the power semiconductors, turning low-voltage optical signals into high-current gate drive for IGBT/IGCT devices; essential partner to ABB 3BHE02876R0101​ in ACS2000/ACS6000-class cabinets.
• ABB ACS800​ — The classic ABB industrial drive family for which ABB 3BHE02876R0101​ serves as a core power stage component.
• ABB ACS580​ — A general-purpose drive platform that pairs naturally with ABB 3BHE02876R0101​ for pump, fan, and compressor applications.
• ABB AC 800M​ (PM861/PM863/PM864/PM865) — The high-performance controller that supplies command and setpoint data to ABB 3BHE02876R0101​ via fieldbus.
• ABB System 800xA​ — ABB’s flagship DCS platform that orchestrates ABB 3BHE02876R0101​ modules across an entire plant, providing engineering, asset optimization, and operator interfaces.
• ABB S800 I/O​ — Distributed I/O family that extends the reach of ABB 3BHE02876R0101-controlled drives across large physical footprints.
• ABB 3BHE028767R0101​ (CI855) — PROFIBUS DP master module enabling ABB 3BHE02876R0101-equipped drives to integrate into PROFIBUS-based control networks at up to 12 Mbps.
• ABB UFC760BE / PPC907BE​ — Control processor modules from the same ABB 3BHE family, frequently paired with ABB 3BHE02876R0101​ in larger drive-and-control assemblies.
