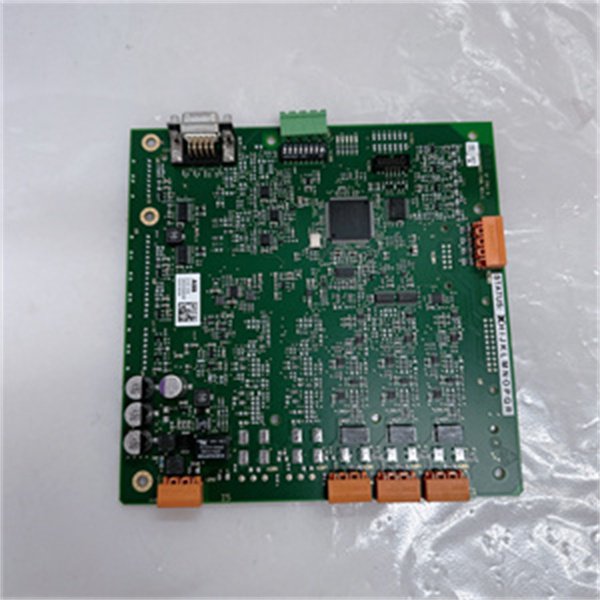

Model:ABB UFC911B106 3BHE037864R0106

product overview

The model is the core control module in ABB’s industrial automation field,belonging to its multi-channel data acquisition and motion control series,designed specifically for hollow cup motors,medium and high voltage motors,and complex industrial equipment.Its core functions include multi axis motion control,real-time data acquisition,multi protocol communication,and security protection,suitable for industrial robots,energy management,intelligent manufacturing,and other scenarios.It supports collaborative implementation of parameter configuration and remote monitoring with upper computer software(such as MotionStudio).

Main features and advantages

Multi mode control and flexibility

Supports three control modes:position,speed,and torque,compatible with various input methods such as pulse/direction,analog signal(±10V),PWM,and network command(RS232/RS485/CAN),to meet different control requirements.

It can run independently or be programmed through the upper computer,supporting S-curve and T-curve trajectory planning to improve motion accuracy and dynamic response.

{“deviceId”:”IOS_5DA664FB-00B3-4ABA-8CCA-3927A70F6A55″,”openFrom”:”m2u_production”,”source”:”m2u”,”userId”:”1177870989″,”data”:{“beautyMode”:1,”mv”:[“10739700393201441532”]}}

{“deviceId”:”IOS_5DA664FB-00B3-4ABA-8CCA-3927A70F6A55″,”openFrom”:”m2u_production”,”source”:”m2u”,”userId”:”1177870989″,”data”:{“beautyMode”:1,”mv”:[“10739700393201441532”]}}

Integrated temperature protection,overcurrent/undervoltage protection,and I²T current limiting function to ensure stable operation of the motor and system.

The working temperature range is-20°C to+60°C,with a protection level of IP20,suitable for industrial site environments.

Communication and Expansion Capability

Supports multi protocol communication(Modbus,EtherNet/IP,OPC UA),can network control multiple devices,and achieve distributed system integration.

Provide 3 digital input ports,2 digital output ports,and analog input interfaces,supporting 16 channel expansion to 128 point I/O,meeting the requirements of complex control scenarios.

Intelligence and high efficiency

Built in PLC function and electronic gear technology,supporting logical operations and multi axis synchronous control,reducing dependence on external controllers.

The conversion efficiency is over 90%,with low energy consumption and optimized heat dissipation design,suitable for long-term continuous operation.

technical specifications

Parameter specifications

Input voltage 18-48 V DC(driver mode);220 V AC(medium high voltage board mode)

Output power of 7.5 kW(frequency converter mode)

Control axis number 1-8(supporting mixed control of stepper motor and servo motor)

Communication interface RS232/RS485/CAN,Ethernet(10/100M),analog signal interface

Processing speed 15 Hz(PLC mode)

Program capacity 2-3 MB(supports saving parameters and alarm records)

Working temperature-20°C to+60°C(driver mode);-30°C to+70°C(medium high pressure plate mode)

Protection level IP20(control room environment)

application area

industrial robot

Drive multi axis coordinated motion of robotic arms and automated production lines to improve accuracy and efficiency.

energy management

Control medium and high voltage motors(such as pumps and compressors)to optimize energy distribution and energy-efficient operation.

Building Automation

Adjust lighting and HVAC systems to achieve intelligent environmental management.

Precision manufacturing

Support high-precision servo motor control,applied in scenarios such as semiconductor equipment and medical instruments.
