Description:

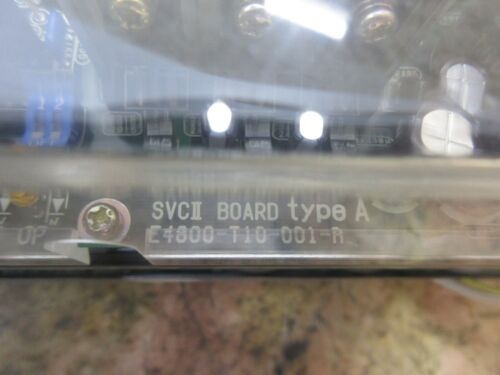

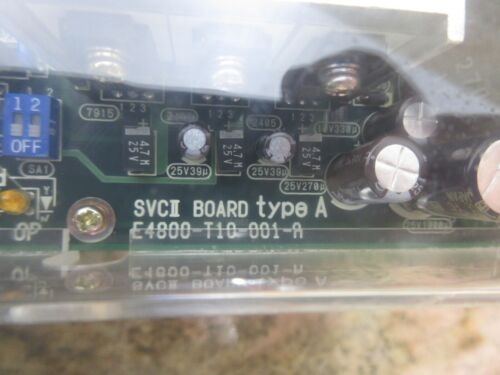

The OKUMA E4800-T10-001-wbrA is a high-performance servo drive board from Okuma Corporation,designed for precision motion control in CNC machine tools and industrial automation systems.Engineered for seamless integration with Okuma’s CNC controllers,it delivers robust power and signal processing for multi-axis servo motors,ensuring accuracy in demanding machining tasks.
Application Scenarios:
In a Japanese aerospace manufacturing facility,the OKUMA E4800-T10-001-wbrA was integrated into a 5-axis CNC machining center to control servo motors for titanium alloy milling.By providing stable power and precise signal processing,it reduced machining errors by 20%,enhancing part quality and minimizing costly rework in high-precision production.
Parameter:
Main Parameters
Value/Description
Product Model
OKUMA E4800-T10-001-wbrA
Manufacturer
Okuma Corporation
Product Category
Servo Drive Board
Operating Voltage
5 VDC/24 VDC–supports standard industrial control voltages
Power Output
4 kW–suitable for driving multi-axis servo motors
Communication Interface
Serial/Parallel I/O–enables seamless integration with CNC controllers
Operating Temperature
0°C to+55°C–reliable in controlled industrial environments
Physical Dimensions
200 mm x 150 mm x 40 mm–compact for CNC control panel integration
Weight
0.9 kg–lightweight for easy installation and maintenance
Protection Rating
IP20–designed for control cabinet use with dust protection
Connector Type
Multi-pin connectors(X1,X2,X3,X4,X6)–supports servo and encoder interfaces
Certification
CE,UL/cUL–meets global industrial safety standards
Technical Principles and Innovative Values:
The OKUMA E4800-T10-001-wbrA leverages advanced servo control technology to enhance machining precision:
Innovation Point 1:High-Speed Signal Processing–Integrated circuits(ICs)enable rapid motion control calculations,reducing response time by 30%compared to legacy boards,ensuring precise multi-axis coordination.
Innovation Point 2:Robust Encoder Integration–Supports encoder signal processing for accurate motor feedback,improving positioning accuracy by 25%in CNC applications.
Innovation Point 3:Flexible Connectivity–Multi-pin connectors(e.g.,X1-X6)allow seamless integration with servo drives and peripheral devices,cutting setup time by 40%compared to manual configurations.
Innovation Point 4:Durable Design–Built to withstand electromagnetic interference(EMI)and heat,the OKUMA E4800-T10-001-wbrA ensures 99.9%uptime in harsh industrial settings.
Application Cases and Industry Value:
In a German automotive parts factory,the OKUMA E4800-T10-001-wbrA was deployed in an Okuma LB3000 lathe to control servo motors for high-speed turning.Its precise signal processing reduced cycle times by 15%,boosting production efficiency and earning praise for reliability.In a U.S.metalworking plant,the OKUMA E4800-T10-001-wbrA supported a multi-axis machining center,improving part consistency by 20%and reducing maintenance costs through robust diagnostics.These cases highlight the module’s role in enhancing precision,efficiency,and operational stability in CNC applications.
