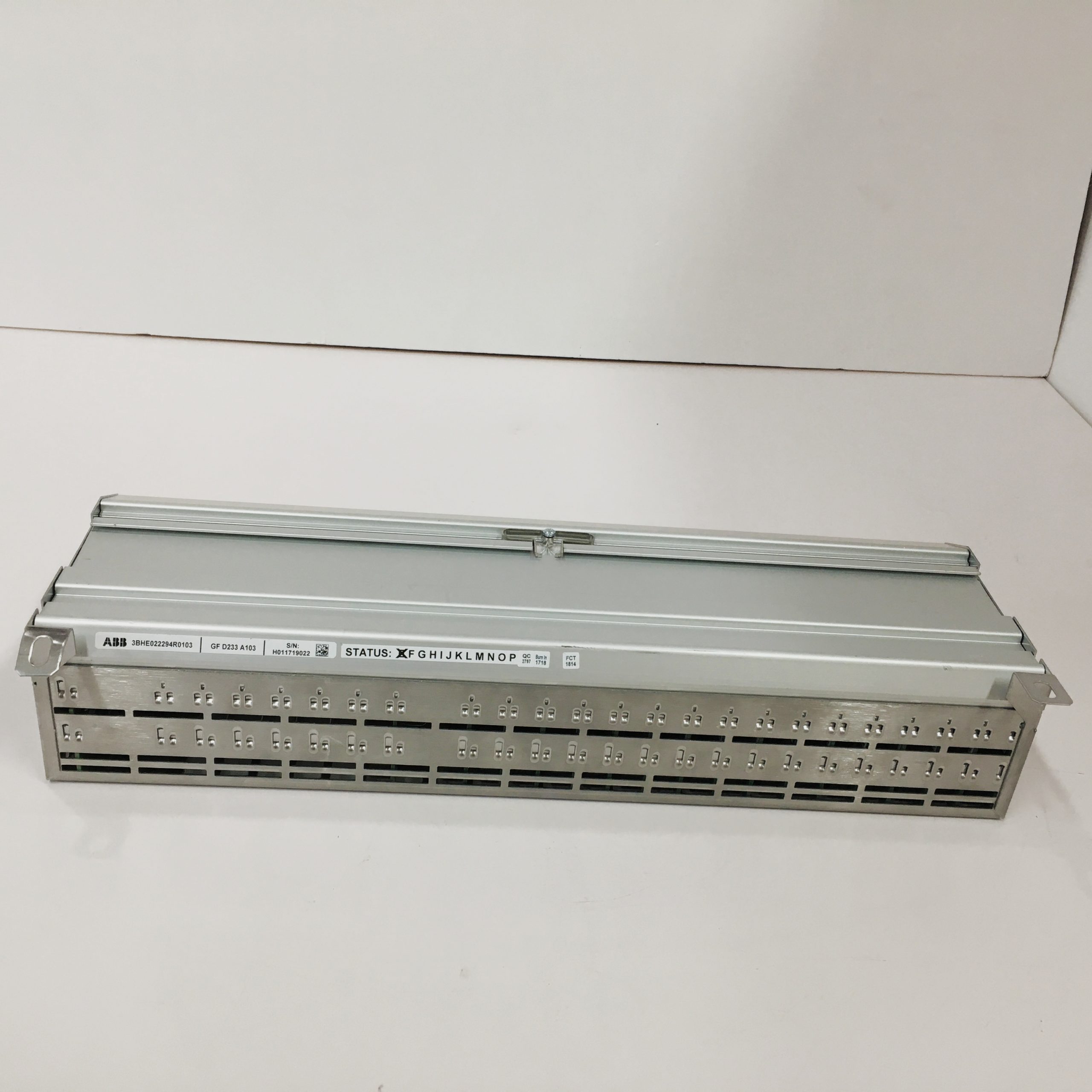

ABB 129740-002 Product Introduction

1.Product positioning and core functions

Functional positioning:This module is an intelligent analog input and output(I/O)module produced by ABB,which has signal conversion,communication and control functions,and is suitable for industrial automation,process control and power systems.

Core function:

Signal conversion:Supports the two-way conversion of analog signals(such as voltage,current)and digital signals,which is suitable for the interface needs of sensors and actuators.

Communication interface:integrate a variety of communication protocols such as RS-232,RS-485,Ethernet,etc.to realize real-time data exchange between devices.

Modular expansion:supports standard 35mm DIN rail installation,which is easy to integrate into the existing control system.

2.Technical parameter

Input/output capability:

Analog:Support voltage(0-30VDC)and current(4-20mA)input,with signal amplification,filtering and adjustment functions.

Digital quantity:Some configurations support 16 digital inputs/outputs,and 2A loads can be switched.

Communication protocol:compatible with Modbus,Profibus,TCP/IP and other industrial standard protocols.

Power supply parameters:input voltage 12-48VDC,output voltage 5VDC,maximum output current 10A,efficiency≥90%.

Physical characteristics:the size is 170×105×32mm,the weight is about 120g,and the environment adapts to a wide temperature range(-25°C to 70°C).

3.Core advantages

High accuracy and stability:

The analog measurement accuracy reaches±0.2%,supporting dynamic response and real-time data acquisition.

Built-in diagnostic functions(such as self-detection,event logging)to improve system reliability.

Multi-protocol compatibility:

Support seamless integration with ABB Advant Controller 400 series PLC,industrial robots and DCS systems.

It can be used as an expansion unit of redundant processor modules to realize dual-machine hot backup.

Industrial-grade design:

Input/output/power supply three isolation design,strong anti-electromagnetic interference ability.

Support power-in and plug-out maintenance to reduce downtime.

4.Application scenarios

Industrial automation:connect sensors(temperature,pressure,flow)and actuators to achieve production line control.

Power system:used for signal monitoring and control of excitation systems and substation equipment.

Process control:process parameter adjustment and equipment status monitoring in the chemical and metallurgical industries.

Traffic control:traffic light control and intelligent building automation in the traffic hub.

5.Typical application cases

Work in collaboration with PLC:realize remote I/O management through Ethernet NIU(network interface unit)and support automatic data exchange.

Robot control:As a DSQC series industrial robot interface module,it processes motion control signals.

Power monitoring:integrated into the ABB PM series DCS system,real-time acquisition of generator and transformer operation data.
