Description:

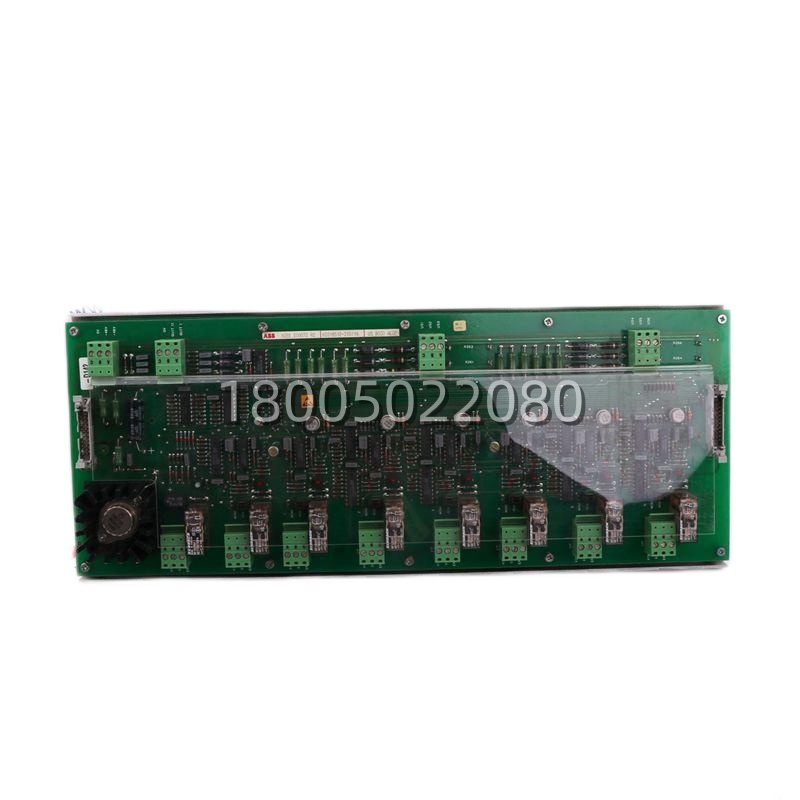

The ABB 3ADT220072R0012 is a control interface / interconnect board (commonly referred to as a Drive Link Board or Adapter PCB) used within ABB’s SDCS (Static Converter Drive System) architecture — notably in the ACS 600, ACS 800, and DCS 600 series AC/DC drive families. It serves as the physical and signal bridge between the main microprocessor control board (typically SDCS-CON-2 or SDCS-CON-4) and the drive’s I/O, AINT (Analog Interface), AINP (Pulse Amplifier), and power-section interface boards. The 3ADT220072R0012 is not a standalone CPU but a critical enabling PCB that routes control signals, encoder feedback, analog references, and status lines between the drive’s intelligence and its power-stage peripherals.h2 Application Scenarios:A paper mill’s #3 coater-section drive — an ABB ACS800-04 — began reporting intermittent “Chassis Fault” and “COMM MODULE MISSING” alarms, despite the SDCS-CON-2 CPU board testing good in a sister unit. Careful inspection revealed hairline cracks on the edge-card fingers of the internal interconnect / adapter board. The drive was brought back online in under 20 minutes after installing the ABB 3ADT220072R0012, with no parameter changes or re-commissioning required — the ribbon and edge connectors mated perfectly, and the drive passed a full start/stop cycle immediately. The 3ADT220072R0012 solved the hidden pain point of inter-board communication failure masquerading as a CPU fault, avoiding an unnecessary (and expensive) controller replacement and preventing an extended coater-line stoppage. This highlights why keeping the 3ADT220072R0012 as a critical spare is essential for plants running ABB SDCS-based drives.h2
Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model | 3ADT220072R0012 |
| Manufacturer | ABB (ABB Drives / Motion Control Division) |
| Product Category | Drive Control Interface / Link / Adapter Board (SDCS Architecture) |
| Typical Use | Interconnect between SDCS-CON-2 / SDCS-CON-4 CPU and AINT / AINP / I/O boards in ACS600 / ACS800 / DCS600 |
| Compatible Drive Families | ABB ACS 600, ACS 800 (wall-mounted & cabinet-built), DCS 600 (DC Drive) — verify drive HW revision |
| Interface Type | Edge-card + ribbon-cable headers (50-pin / multi-row as per SDCS backplane) |
| Signal Function | Routes CPU bus, encoder feedback, analog refs, digital I/O, watchdog & status lines to/from power-stage boards |
| Mounting Method | Internal drive chassis — screws / standoffs + edge-connector into SDCS backplane |
| Operating Temp. | -20 °C to +65 °C (typical drive-cabinet ambient) |
| Protection Rating | IP00 (bare PCB — installed inside drive enclosure) |
| Associated CPU Board | SDCS-CON-2 (3ADT220090R0022) / SDCS-CON-4 (3ADT220090R0044) — ordered separately |
| Alternative / Related P/N | Earlier/later revision link boards in same mechanical family — always verify old board marking before substitution |
h2 Technical Principles and Innovative Values:
- Signal Integrity-Optimized Backplane Bridging: The 3ADT220072R0012 uses controlled-impedance traces and gold-flash edge contacts to maintain timing and noise margins on high-speed control and encoder signals between the SDCS-CON-x CPU and the drive periphery. Poor-quality substitutes often introduce bit errors on the internal bus — the genuine ABB board eliminates this failure mode.
- Plug-&-Play Drive Restoration with No Re-Parameterization: Because the ABB 3ADT220072R0012 is a passive/semi-active interconnect (no firmware, no NVRAM), swapping it requires zero drive re-configuration. The drive’s parameters and application macros remain stored on the CPU board — minimizing MTTR to a simple hardware exchange.
- Consolidated Internal Wiring Reduction: By aggregating multiple point-to-point signals onto a single PCB with defined backplane mating, the 3ADT220072R0012 removes the need for dozens of discrete internal jumpers inside the drive, reducing the risk of miswired or loose internal connections that commonly cause obscure drive faults after transport or cabinet cleaning.
