Description

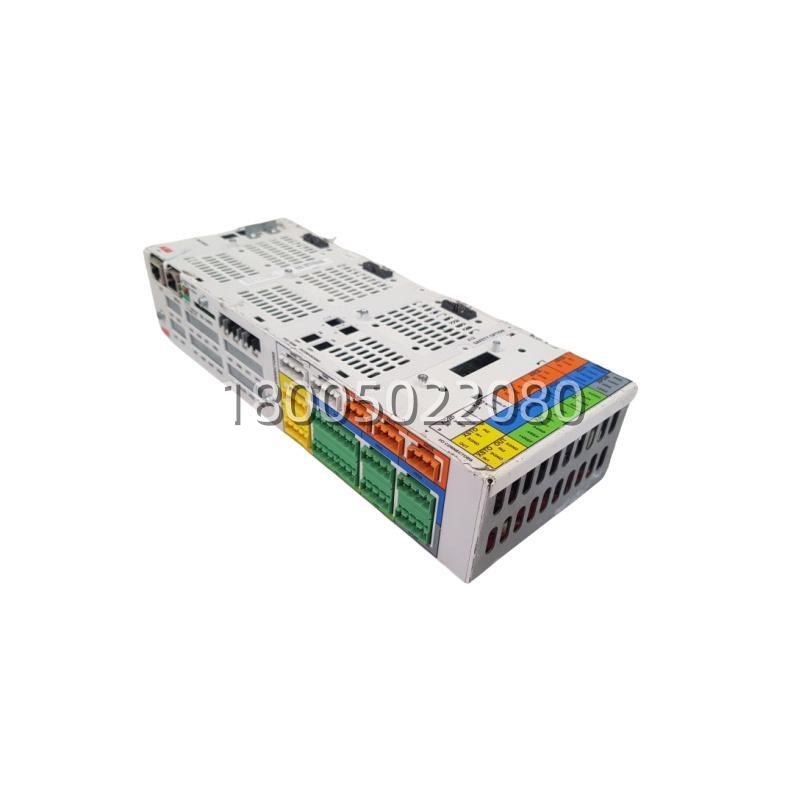

The ABB 3AUA0000110429-K is the BCU-02 (Basic Control Unit), the primary microprocessor-based control board for ABB ACS880 series AC drives—including single drives and multi-drive (common DC bus) configurations. It houses the drive firmware, executes motor control algorithms such as Direct Torque Control (DTC), manages I/O signal processing, safety functions, and communicates with power units via high-speed fiber-optic DDCS links.
Application Scenarios
A pulp & paper mill running an ABB ACS880-07 multi-drive line experienced a startup failure after a cabinet lightning surge damaged the existing control unit. The plant engineer swapped in a verified ABB 3AUA0000110429-K BCU-02, inserted the original ZMU (parameter memory unit) which auto-loaded all motor and application macros, and the line was back online in under 15 minutes—no laptop or re-commissioning required. For maintenance teams managing ACS880 assets, keeping a spare ABB 3AUA0000110429-K on the shelf eliminates the need to re-enter hundreds of parameters and dramatically reduces mean time to repair (MTTR) during unexpected control board failures.
Parameter
Main Parameters Value/DescriptionProduct Model 3AUA0000110429-K (BCU-02 Basic Control Unit)Manufacturer ABB (ABB Drives / Finland or Estonia origin)Product Category Inverter / Drive Control Unit (CPU Board)Compatible Drive Series ABB ACS880-01, ACS880-04, ACS880-07, ACS880-17, ACS880-37Supply Voltage 24 V DC (from drive auxiliary PSU or external source)Processor 32-bit floating-point DSP – executes DTC motor control & application macrosFiber Optic Ports 3× DDCS high-speed fiber links (V1–V3) to inverter / rectifier unitsDigital I/O (typical) 6× DI (24 V DC programmable), 2× Relay DO, 1× Transistor DOAnalog I/O (typical) 2× AI (0–10 V / 4–20 mA configurable), 2× AO (4–20 mA)Safety Function 2× STO (Safe Torque Off) inputs – SIL 3 / PL e certified per IEC 61800-5-2Expansion Slots 3 slots for F-series fieldbus (FENA-11/21, RPBA-01, NETA-01) & I/O modulesMemory ZMU (drive memory unit) slot – stores firmware version & all drive parametersOperating Temp. -10 °C to +60 °C (no derating); Storage: -40 °C to +85 °CMounting Method Internal chassis rail / bracket mount inside drive control compartmentDimensions (approx.) 240 × 150 × 60 mm (W×H×D)Weight (approx.) 1.1–1.2 kg
Technical Principles and Innovative Values
- Innovation Point 1 – ZMU-Based Parameter Portability: The ABB 3AUA0000110429-K stores all configuration, application macros, and firmware identity on a removable ZMU (drive memory unit). When the BCU-02 is replaced, simply transferring the ZMU restores 100% of drive settings—no PC tool or parameter upload needed, cutting change-out time to <10 minutes.
- Innovation Point 2 – Integrated DTC Motor Control Engine: Powered by a 32-bit floating-point DSP, the ABB 3AUA0000110429-K runs ABB’s Direct Torque Control algorithm, delivering <1 ms torque step response and accurate open-loop vector performance without requiring a shaft encoder in most applications.
- Innovation Point 3 – Fiber-Optic DDCS for Noise Immunity: Unlike copper-linked control boards, the BCU-02 communicates with inverter modules via galvanically isolated fiber-optic DDCS (Distributed Digital Control System), ensuring interference-free operation even in electrically noisy steel or mining environments.
- Innovation Point 4 – Native Functional Safety (STO): Dual-channel Safe Torque Off inputs are hardwired into the ABB 3AUA0000110429-K, meeting SIL 3 / PL e requirements without external safety relays—simplifying panel layout and reducing component count.
