1. Description

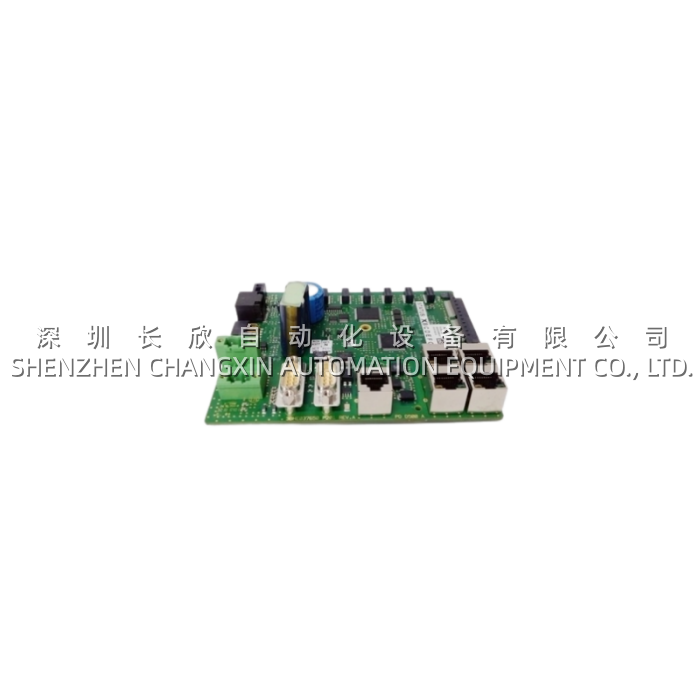

The ABB 3BHE037649R0101, also designated as PD D500 A101, is a high-performance motion and logic controller module manufactured by ABB as part of the next-generation automation platform for advanced drive systems and industrial motion control applications. This controller module serves as the “brain” for complex multi-axis synchronization tasks, combining PLC functionality with high-speed motion control in a single compact unit.

Engineered with a powerful 32-bit RISC processor and supporting real-time communication protocols such as EtherCAT, PROFINET, and ABB’s proprietary DriveBus, the ABB PD D500 A101 enables deterministic, microsecond-level control of servo drives, linear motors, and robotics. Its native support for PLCopen-compliant motion function blocks (single-axis, coordinated multi-axis, cam tables, and CNC interpolation) makes it an ideal choice for demanding applications ranging from packaging machinery to metal forming presses.

2. Application Scenarios

A leading manufacturer of high-speed bottling equipment was struggling with synchronization errors in their 36-axis filling and capping system. The existing motion controller’s cycle time of 4 ms caused bottle-to-cap alignment errors at speeds above 600 bottles per minute, resulting in spillage, capping defects, and a 5% scrap rate. Worse, the proprietary programming environment limited the engineering team’s ability to implement advanced electronic cam profiles.

By upgrading to the ABB 3BHE037649R0101, the OEM achieved a 10x improvement in cycle time—from 4 ms to 400 μs—allowing precise synchronization of all 36 axes. The PD D500 A101 executed complex electronic gearing and cam profiles with zero jitter, enabling the line to run at 750 bottles per minute with scrap rates below 0.5%. The IEC 61131-3 programming environment (including Structured Text and Continuous Function Charts) allowed the team to implement custom algorithms, while the built-in EtherCAT master eliminated the need for separate communication gateways. The equipment manufacturer reported a 20% increase in throughput and a 15% reduction in warranty claims.

3. Parameters
