Description

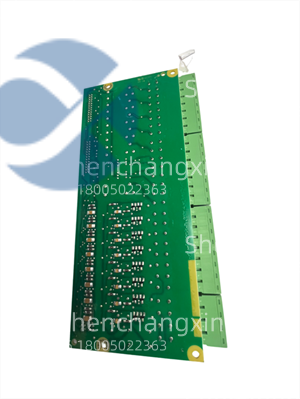

The ABB SDCS-IOB-21(3HAC047465-1)is a high-density digital input/output expansion board designed for the ABB DCS800 series of industrial drive systems.As a critical field interface module,it extends the control capabilities of main CPU boards like the SDCS-UCM-1C by providing additional discrete signal connectivity.
This rugged I/O module delivers 16 optically isolated digital inputs and 16 relay outputs in a compact DIN-rail form factor.Engineered for reliability in demanding environments,it bridges the gap between the drive controller and field devices such as pushbuttons,limit switches,contactors,alarms,and safety interlocks—ensuring seamless integration and robust signal handling.
Application Scenarios
At a large cement plant in India,frequent failures in the kiln drive’s I/O system were causing unexpected shutdowns during critical production cycles.The original low-density I/O cards couldn’t handle the volume of signals from temperature sensors,door interlocks,and emergency stops.Maintenance teams upgraded to the ABB SDCS-IOB-21,pairing it with an SDCS-UCM-1C controller.With its 16DI/16DO capacity and galvanic isolation,the ABB SDCS-IOB-21 reliably managed all field signals without noise interference.Within weeks,unplanned stoppages dropped by 80%.Operators noted that the clear LED indicators made troubleshooting fast and accurate.The ABB SDCS-IOB-21 didn’t just expand I/O—it brought stability to one of the plant’s most mission-critical systems.
Parameter
Main Parameters Value/Description
Product Model SDCS-IOB-21(3HAC047465-1)
Manufacturer ABB
Product Category Digital I/O Expansion Module
Digital Inputs(DI)16 channels,24VDC,optically isolated–Connects to field switches and sensors
Input Voltage Range 19–30 VDC–Tolerant to voltage fluctuations in industrial settings
Digital Outputs(DO)16 relay outputs(changeover),2A 250VAC–Drives contactors,lamps,solenoids
Isolation Voltage 1500 VAC RMS–Prevents ground loops and electrical noise interference
Response Time(DI)<3 ms–Fast signal processing for time-critical applications
Mechanical Life(Relays)>10 million operations–Exceptional durability for frequent switching
Electrical Life(Relays)>100,000 operations full load–Long service life under heavy use
Installation Method DIN rail mounting,backplane-connected–Tool-free installation and removal
Operating Temperature-25°C to+60°C–Suitable for extreme ambient conditions
MTBF>100,000 hours–Designed for continuous operation in harsh environments
Technical Principles and Innovative Values
Innovation Point 1:High-Density,Isolated I/O in Compact Design
The ABB SDCS-IOB-21 packs 16 inputs and 16 relay outputs into a single module—doubling the I/O density of standard expansion cards.Each channel is optically isolated,eliminating ground loops and protecting the control system from electrical surges common in motor-driven environments.
Innovation Point 2:Industrial-Grade Relay Outputs with Long Lifespan
Unlike solid-state outputs that degrade under inductive loads,the SDCS-IOB-21 uses mechanical relays rated for over 100,000 switching cycles at full load(2A).This makes it ideal for driving contactors,brake coils,and warning systems in heavy machinery where reliability is non-negotiable.
Innovation Point 3:Seamless Integration with DCS800 Architecture
The ABB SDCS-IOB-21 connects directly to the DCS800 backplane and communicates via the internal I/O bus.It works natively with the SDCS-UCM-1C and other control modules,requiring no additional configuration or external power—plug-and-play simplicity at the industrial level.
Innovation Point 4:Hot-Swap Support for Maximum Uptime
In redundant DCS800 configurations,the ABB SDCS-IOB-21 supports hot swapping.Technicians can replace a faulty I/O board without shutting down the drive,minimizing production losses in continuous processes like mining conveyors or paper machines.
Application Cases and Industry Value
At a port crane facility in Rotterdam,aging I/O systems caused frequent misreads from limit switches and hoist position sensors,leading to safety alerts and operational delays.Engineers installed the ABB SDCS-IOB-21 to replace outdated discrete wiring.With its 16 optically isolated inputs,it accurately captured signals from 12 end-of-travel switches and 4 emergency stops.The relay outputs controlled brake releases and alarm horns.Over six months,false triggers dropped to zero,and maintenance time decreased by 65%.The crane operator reported:“The ABB SDCS-IOB-21 brought precision and peace of mind—we now trust every signal.”
In a pulp and paper mill in Canada,a rewinder machine required expanded I/O for new safety gates and tension sensors.Instead of adding multiple small modules,the team deployed a single ABB SDCS-IOB-21.Its high channel count and robust relay outputs simplified wiring and reduced panel space.After one year of operation,there were no I/O-related faults.The plant’s automation lead stated:“One SDCS-IOB-21 did the job of three old modules—reliability went up,complexity went down.”
Related Product Combination Solutions
ABB SDCS-UCM-1C:Main control CPU that pairs with the ABB SDCS-IOB-21 to provide complete drive intelligence and logic processing.
ABB DCS800 Drive Cabinet:Host system where both SDCS-UCM-1C and SDCS-IOB-21 are installed for integrated motor control.
ABB SDCS-IOB-22:Alternative I/O module with transistor outputs instead of relays,suitable for high-speed digital signaling.
ABB SDCS-ENC-1:Encoder interface board that adds feedback capability when used alongside SDCS-IOB-21 for closed-loop applications.
ABB DriveWindow Lite:Software tool for monitoring I/O status and diagnosing signal issues on the SDCS-IOB-21.
ABB SDCS-PSU-2:Power supply unit ensuring stable 24VDC to the SDCS-IOB-21 and other control modules.
ABB SDCS-CAN2:Communication adapter enabling CANopen networking between SDCS-IOB-21 and remote I/O stations.
ABB CF Card Adapter:Allows firmware backup and restoration for quick recovery after module replacement.
Installation,Maintenance,and Full-Cycle Support
Installing the ABB SDCS-IOB-21 is simple:power down the DCS800 drive(unless in redundant mode),align the module with the DIN rail guide,and slide it into the backplane until fully engaged.No external wiring is needed for communication—the module draws power and data through the backplane.Connect field devices to the screw terminals,double-check polarity,then power up.The system automatically recognizes the module,and I/O status can be verified via DriveWindow software.
Routine maintenance is minimal—inspect terminals annually for loose connections and clean dust buildup quarterly.The optical isolation and industrial-grade relays ensure long-term reliability.With an MTBF exceeding 100,000 hours,the SDCS-IOB-21 is built to last,but preventive replacement every 10 years is recommended.If a failure occurs,the hot-swap capability allows for rapid module replacement without disrupting the entire drive system.
