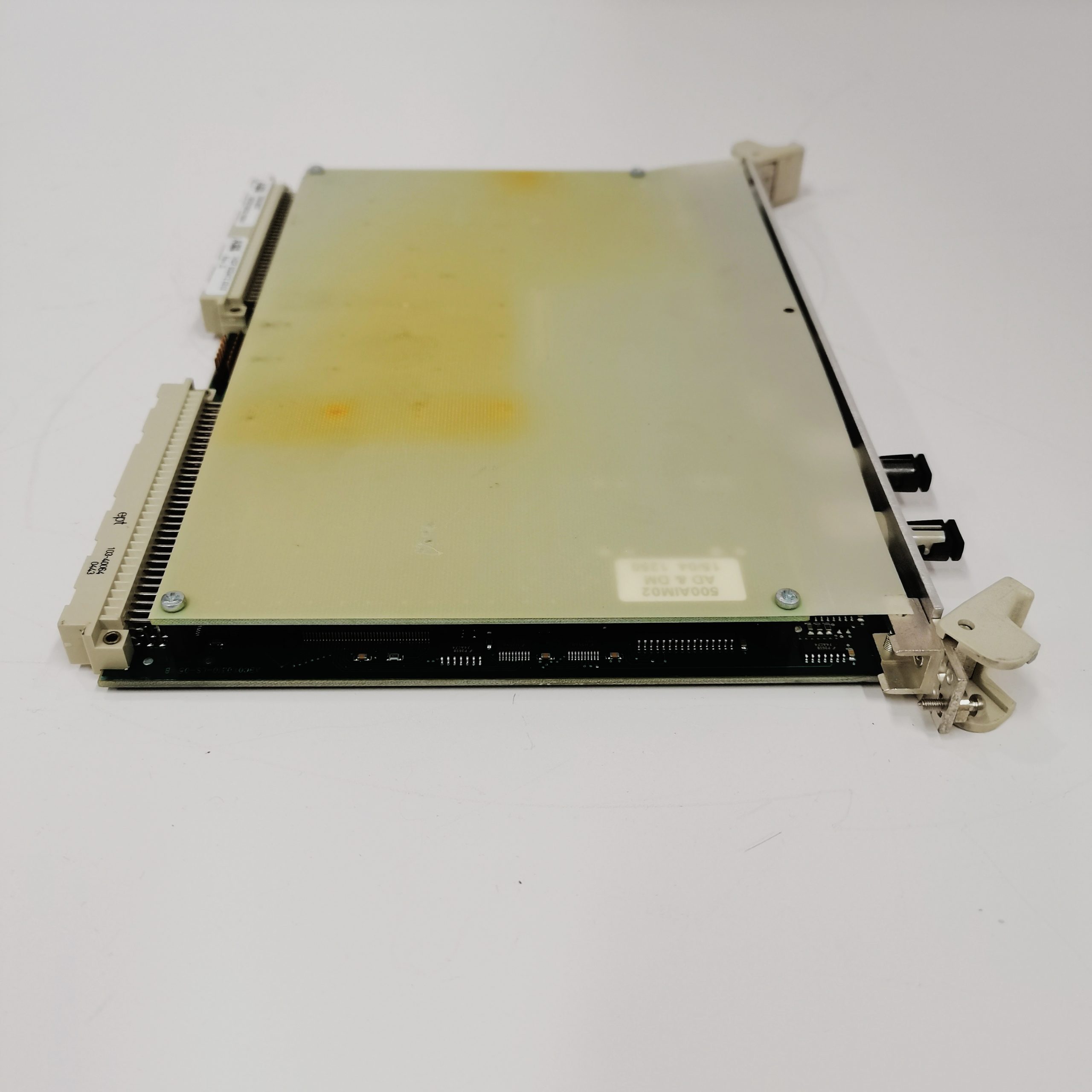

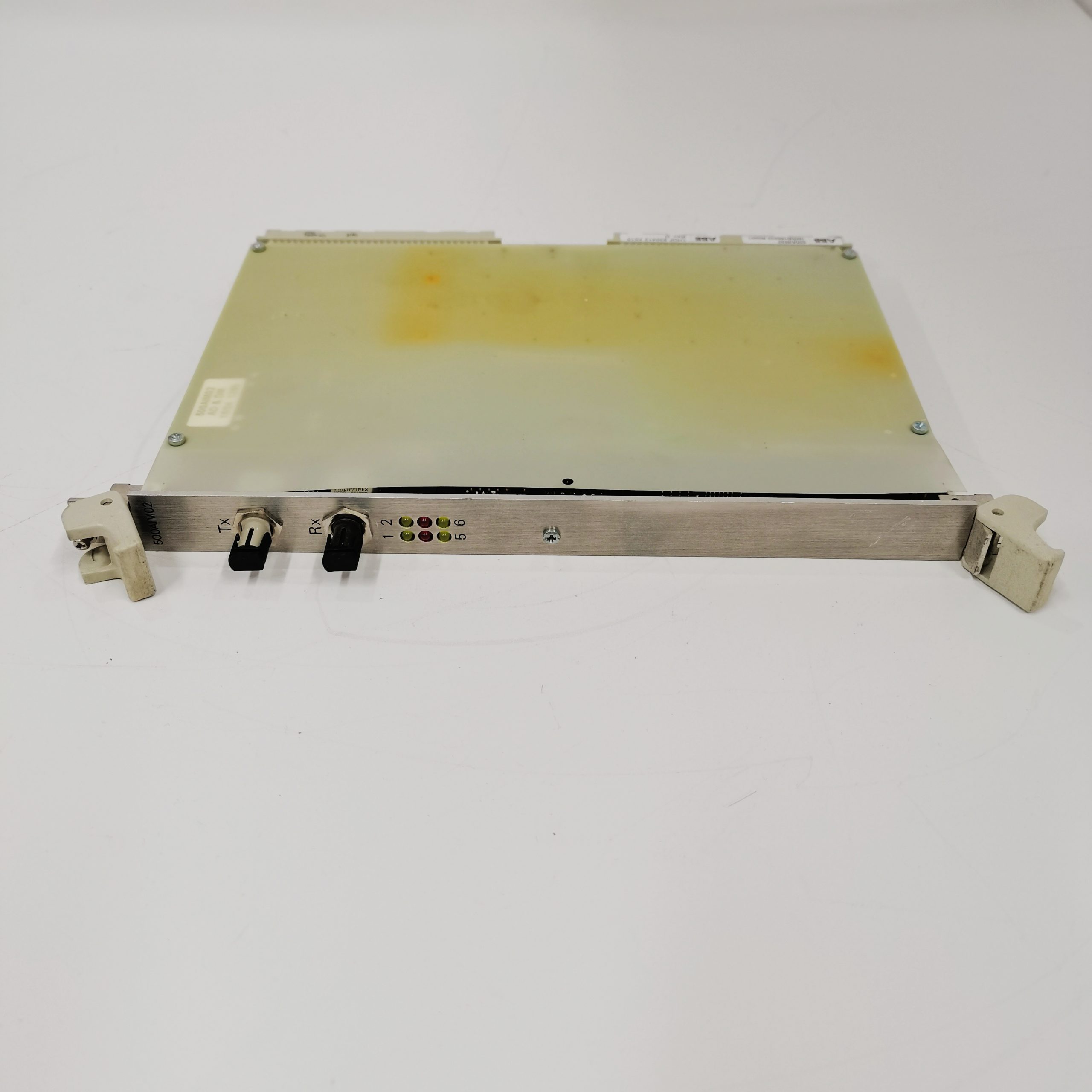

Product model:ABB 500AIM02
Product Category:Analog Input Module
Main features and advantages
High precision signal acquisition:
Supports multi-channel analog input(such as voltage and current signals),using 16 bit resolution analog-to-digital conversion technology,suitable for high-precision measurement of industrial parameters such as temperature,pressure,and flow rate,meeting the stringent requirements of process control and automation systems.
Industrial grade reliability:
Through rigorous environmental testing,it is suitable for working temperatures ranging from-20°C to+60°C and complex electromagnetic interference environments,supports long-term stable operation,and has a protection level of IP20.
Flexible scalability:
Based on ABB FBP(Flexible Bus Protocol)technology,it can be directly plugged into the AC500 system terminal board,working in conjunction with CPUs,communication modules,etc.It supports distributed I/O expansion and adapts to network topologies such as tree and star.
Compatibility and Integration:
Compatible with AC500 series controllers(such as PM571/PM581/PM591 CPUs),supporting bus protocols such as Profibus DP and Modbus,simplifying system integration and maintenance processes.
technical specifications
Parameter item description
Input type voltage(0-10 V,-10 V to+10 V),current(4-20 mA,0-20 mA)
Number of channels:8 channels(each independently isolated)
Resolution 16 bits(±0.01%accuracy)
Working voltage 24 V DC
Communication interface FBP bus interface,supporting protocol extensions such as Profibus DP and DeviceNet
Environmental adaptability:Operating temperature range of-20°C to+60°C,humidity of 95%(no condensation)
Protection level IP20(rail installation)
application area
Industrial process control:
A DCS system used in the chemical,metallurgical,and pharmaceutical industries to collect real-time temperature and pressure sensor data,supporting closed-loop control and process optimization.
Energy Management:
Monitor the voltage and current parameters of generator sets and substations to assist in power system stability analysis and fault diagnosis.
Building automation:
Integrated into intelligent building systems,it collects analog signals from air conditioning,lighting,and other equipment to achieve dynamic regulation of energy efficiency.
Testing and Calibration:
As a high-precision signal acquisition unit,it is used for laboratory equipment calibration and industrial equipment performance testing.
Related products
ABB AC500 series controllers(such as PM571/PM581/PM591 CPUs):The main control module collaborates with 500AIM02 to complete data processing and logic control,building a distributed automation system.
ABB 500DIM series module:switch input/output module,used in conjunction with 500AIM02 to achieve mixed control of digital and analog signals.
ABB DSTC series bus expansion module:supports protocols such as Profibus DP and Modbus,expands the communication capability of 500AIM02,and adapts to complex industrial network architectures.
