Description

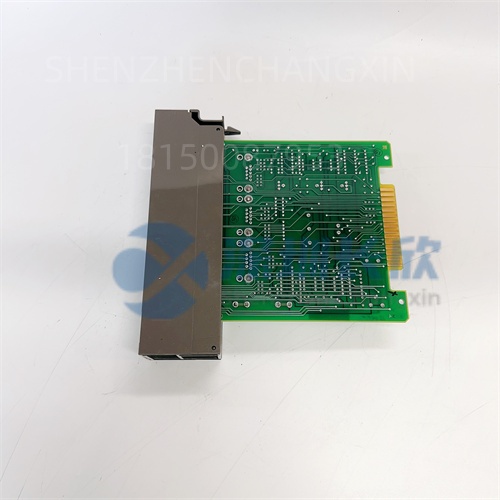

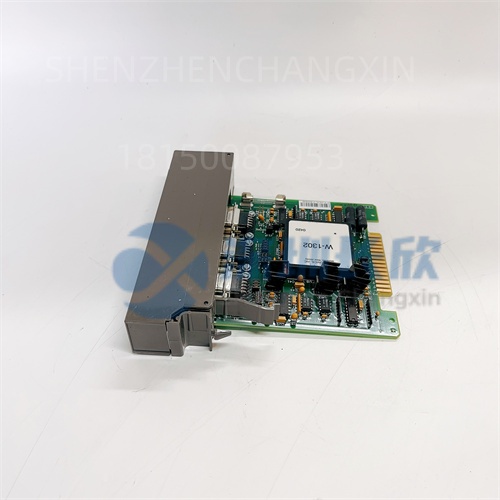

The ABB NIMP01​ is a Digital Input Processor Module​ designed as part of ABB’s Bailey INFI 90​ distributed control system (DCS) or similar industrial automation platforms. This module functions as a specialized interface and processing unit that conditions, isolates, and processes digital (discrete) input signals from field devices such as limit switches, push buttons, pressure switches, and motor contactors. It translates these raw field signals into a format that the central DCS controller can understand and act upon, forming a critical link in the control loop for monitoring plant status and equipment conditions.

Application Scenarios

In a large thermal power plant, hundreds of pumps, fans, and valves need to be continuously monitored for their operational status (running/stopped, open/closed). Each of these devices has auxiliary contacts that provide a simple on/off signal. Instead of running hundreds of individual wires directly to the central control room, field signals are wired to local marshalling cabinets. Here, the ABB NIMP01​ modules are installed in remote I/O racks. Each NIMP01​ can process multiple digital input channels, providing electrical isolation, filtering out contact bounce or electrical noise, and converting the 24V DC or 120V AC field signals to a clean logic-level signal. The processed status information is then communicated digitally over the high-speed INFI-NET to the central operators in the control room. This setup allows an operator to instantly see that “Boiler Feed Pump A-1 is running” or “Main Steam Valve XV-101 is closed,” enabling rapid response to alarms and efficient plant management. The NIMP01​ directly addresses the pain points of wiring complexity, signal integrity, and reliable remote monitoring in large-scale industrial facilities.

Parameter

Based on typical specifications for ABB Bailey INFI 90 digital input modules; exact parameters for NIMP01 may vary.

Technical Principles and Innovative Values

The ABB NIMP01​ embodies the reliability and modularity principles of the INFI 90 system, which was designed for critical process industries.

Innovation Point 1: Intelligent Signal Conditioning and Diagnostics.​ Unlike simple relay interfaces, the NIMP01​ incorporates active electronics for signal conditioning. It provides configurable filtering​ to ignore transient spikes and contact bounce, ensuring that only valid state changes are reported to the controller. Furthermore, it can perform continuous diagnostics​ on the field wiring, potentially detecting open circuits or short circuits, and reporting these as module faults to the control system for predictive maintenance.

Innovation Point 2: High-Density, Modular Design for Scalability.​ The module’s design allows a high number of input channels​ in a single, compact form factor. This high density, combined with the INFI 90 system’s modular architecture, allows engineers to precisely scale I/O counts by adding NIMP01​ modules as needed. This reduces cabinet footprint, simplifies wiring, and lowers overall system cost compared to using individual relays or smaller I/O cards.

Innovation Point 3: Seamless Integration within a Distributed, Redundant Architecture.​ The NIMP01​ is not a standalone device; it’s a key component in a fault-tolerant system. It plugs into a local Process Control Unit (PCU)​ which can be configured with redundant processors and power supplies. The digital status data from the NIMP01​ is shared on the high-speed, deterministic INFI-NET​ loop, ensuring all controllers have a consistent view of the plant state. This architecture provides the high availability and data integrity required for continuous processes like power generation or chemical manufacturing.

Application Cases and Industry Value

Case Study: Petrochemical Plant Safety Shutdown System Modernization

A major petrochemical complex needed to upgrade its aging safety instrumented system (SIS) for a critical hydrocarbon cracking unit. The existing system used hardwired relays, making troubleshooting difficult and modification nearly impossible. The requirement was for a highly reliable, configurable system that could process hundreds of safety-critical digital inputs (e.g., high-pressure switches, flame detectors, emergency stop buttons).

Implementation & Outcome:​ The engineers selected an ABB INFI 90​ system with Triconex​ safety controllers for the logic solver. Dozens of ABB NIMP01​ modules were deployed in hardened, remote I/O enclosures near the field devices to minimize analog signal run lengths. Each NIMP01​ reliably acquired the status of safety switches and transmitted the data to the redundant safety controllers. The system’s success was demonstrated during a planned shutdown test: when a simulated high-pressure signal was triggered, the NIMP01​ modules detected the change within milliseconds, the safety logic executed, and the unit safely shut down. The project resulted in a 50% reduction in system troubleshooting time​ due to the detailed diagnostic information provided by the modules. The plant manager highlighted the NIMP01’s proven reliability in harsh environments and its role in maintaining the plant’s safety integrity level (SIL) rating as key project successes.

Related Product Combination Solutions

The NIMP01​ operates within a full ecosystem of ABB Bailey INFI 90 components:

INNPM22 Power Supply Module:​ Provides regulated power to the NIMP01​ and other modules in the PCU rack.

NIMP or NISL Series Communication Modules:​ Facilitate the connection between the NIMP01​ I/O modules and the INFI-NET control network.

NPRC or NCPF Series Process Control Modules:​ The main controllers that execute control logic based on inputs from modules like the NIMP01.

NODI01 Digital Output Module:​ The complementary output module used to command field actuators (valves, motors) based on control logic.

NAIO Series Analog I/O Modules:​ For processing continuous signals (4-20mA, thermocouples) alongside the digital NIMP01.

Bailey OIS Operator Interface Stations:​ The human-machine interface (HMI) where operators monitor the status of points scanned by the NIMP01.

Installation, Maintenance, and Full-Cycle Support

Installation:​ The ABB NIMP01​ module is designed for installation in a dedicated INFI 90 Module Mounting Unit (MMU)​ or rack. Ensure system power is off before handling. Align the module with the guide rails in the MMU and firmly press it into the backplane connector until it clicks into place. Secure it with the retaining screws or latches. Field wiring is terminated to the associated terminal base unit​ that mounts behind the MMU, not directly to the module itself. Carefully follow the wiring diagrams for channel assignments and power connections.

Maintenance:​ The primary maintenance is monitoring and replacement. The module’s status LEDs provide immediate health indication. Regularly review system diagnostics for any channel or module faults. Spare modules should be kept on hand for critical loops. When replacing a module, power down the individual rack if possible (hot-swap capability depends on the specific INFI 90 hardware revision). Extract the faulty module, insert the replacement, and restore power. The system typically recognizes the new module automatically, but configuration may need to be downloaded from the controller.
