Description

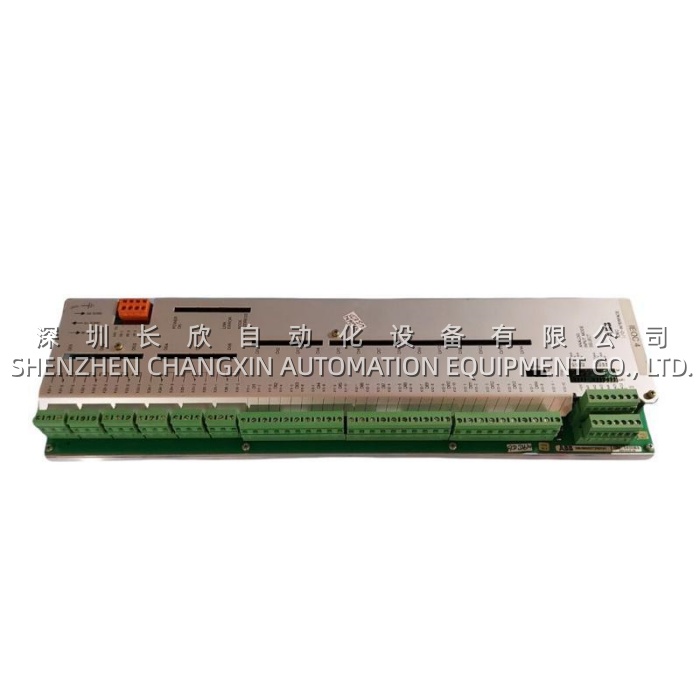

The ABB 3BHB003041R0101 UFC719AE01 is a versatile I/O control board designed for ABB’s AC 800M, System 800xA, and Symphony Plus DCS platforms, as well as ACS1000/ACS2000 medium-voltage drive systems . This module serves as the intelligent “brain” of I/O racks, managing signal aggregation, bus communication, and field device interaction .

Built around a 32-bit RISC processor architecture with up to 16MB RAM and 32MB Flash storage, the ABB UFC719AE01 functions as a high-performance I/O interface, capable of handling 16-bit, 32-channel analog and digital signal configurations . Its robust industrial-grade design supports a wide operating temperature range of -25°C to +70°C and includes conformal coating options for harsh environments.

Application Scenarios

In a large petrochemical refinery, the Distributed Control System (DCS) manages thousands of I/O points across multiple process units. When the facility needed to expand its monitoring capabilities for a new cracking furnace, the engineering team deployed the ABB 3BHB003041R0101 UFC719AE01 as the I/O rack controller. The ABB UFC719AE01 seamlessly integrated with the existing 800xA system, managing up to 32 I/O modules per rack and communicating with the main controller via Profibus-DP at 12 Mbps. The result was a 40% reduction in cabinet wiring complexity and a 15% faster system scan cycle compared to the previous architecture.

The ABB 3BHB003041R0101 addresses critical pain points in industrial automation: unreliable signal processing in electrically noisy environments, limited I/O scalability, and the need for deterministic, sub-millisecond control response. Its support for 1:1 hardware redundancy with millisecond automatic failover ensures continuous operation in mission-critical applications, eliminating costly production interruptions due to I/O communication failures.

Parameters

Technical Principles and Innovative Values

Innovation Point 1: High-Speed I/O Rack Management
The ABB 3BHB003041R0101 UFC719AE01 functions as the I/O rack’s central “brain”, polling all installed AI, AO, DI, and DO modules via the high-speed backplane bus . With a 32-bit processor and optimized firmware, the ABB UFC719AE01 can complete full rack scans in under 10ms, ensuring deterministic real-time data acquisition for fast control loops. This architecture offloads communication processing from the main CPU, improving overall DCS performance and reducing bus traffic congestion.

Innovation Point 2: Dual-Role Flexibility Across Platforms
The ABB 3BHB003041R0101 demonstrates exceptional versatility by functioning as an I/O control board across diverse ABB systems. In AC 800M/800xA DCS environments, it serves as the I/O rack interface head . In ACS1000/ACS2000 medium-voltage drives, the ABB UFC719AE01 operates as the IOEC (Input/Output Extension Card), conditioning 8-12 analog inputs, 4-6 analog outputs, and 16-24 digital I/O channels for megawatt-scale motor control applications . This cross-platform compatibility reduces spare parts inventory and training requirements for maintenance teams.

Innovation Point 3: Redundancy Architecture for High Availability
The ABB 3BHB003041R0101 supports 1:1 hardware redundancy with automatic failover in under 100ms . In redundant configurations, two ABB UFC719AE01 boards operate in active/standby mode, continuously synchronizing I/O data and status. Upon active board failure, the standby board takes over without data loss or I/O re-initialization, ensuring uninterrupted process control. This is particularly valuable in critical applications such as turbine control, boiler management, and safety shutdown systems.

Innovation Point 4: C-Code Programmable Coprocessor Capability
In specific configurations, the ABB UFC719AE01 supports ANSI C programming through ABB’s Function Block Developer Kit (FBDK) . This enables engineers to deploy custom algorithms—such as soft sensors, predictive maintenance models, or advanced process control routines—directly on the I/O board as a coprocessor, executing at 1ms cycle rates independent of the main CPU . This “edge intelligence” approach reduces communication latency from hundreds of milliseconds to microseconds, enabling real-time optimization of combustion efficiency, compressor anti-surge control, and vibration analysis.
