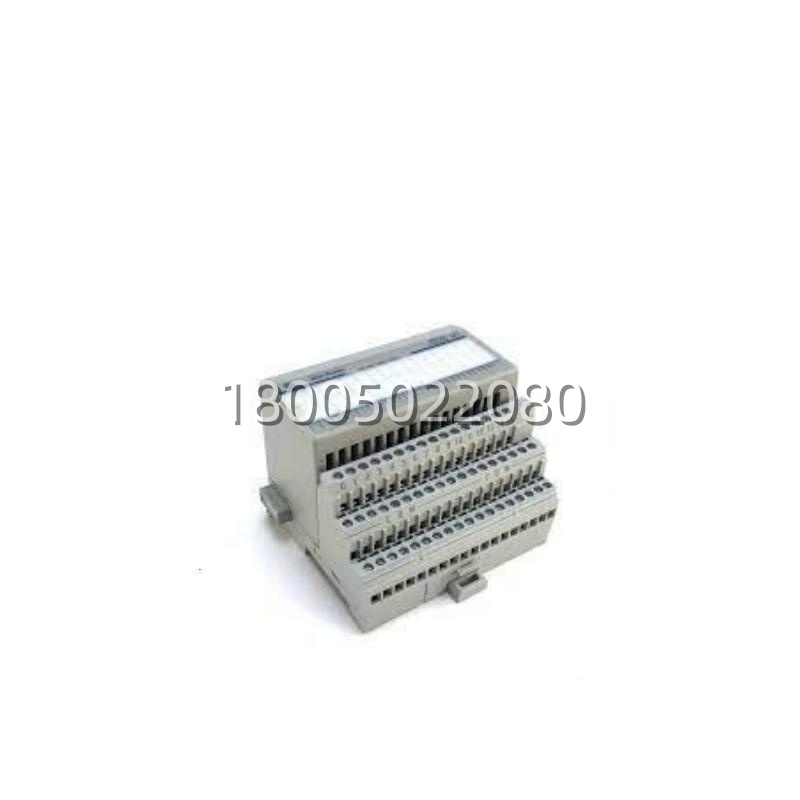

Description:The Allen-Bradley 1794-IB32 is a 32-point, 24V DC sinking digital input module from the FLEX I/O family. Designed for high-density distributed control, it converts signals from field devices (e.g., push buttons, proximity sensors) into digital data for PLC processors. Its compact form factor maximizes I/O count per rack slot, making it ideal for space-constrained panels. The module requires a separate 1794-TB series terminal base for wiring and is commonly used with 1794-AENT (EtherNet/IP) or 1794-ADN (DeviceNet) adapters to create remote I/O stations.Application Scenarios:In a Taiyuan-based automotive assembly line, multiple 1794-IB32 modules are deployed in FLEX I/O stations along the conveyor. They monitor hundreds of limit switches and sensor statuses, providing real-time feedback to the central ControlLogix system. The high channel density reduces cabinet footprint, while the sinking input logic ensures compatibility with the plant’s standard NPN sensors, streamlining maintenance and spare parts management.
Parameter:
| Parameter | Value / Specification |
|---|---|
| Product Model | 1794-IB32 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Type | Digital Input Module (FLEX I/O Series) |
| Input Channels | 32 points (Sinking / NPN compatible) |
| Input Voltage | 24V DC nominal (19.2 – 31.2V DC operating range) |
| Input Current | 2 – 6 mA per point (Typ. 4.1 mA @ 24V DC) |
| Input Logic | Sinking (IEC 61131 Type 2) |
| Common Groups | 2 groups (16 points per common) |
| Status Indicators | 32 yellow LEDs (one per channel) |
| Isolation | 50V continuous (Field to System) |
| Power Consumption | Max 6W @ 31.2V DC |
| Required Base | 1794-TB32, 1794-TB32S, 1794-TB3, etc. |
| Operating Temperature | 0°C to 55°C |
Technical Principles and Innovative Values:The 1794-IB32 exemplifies Rockwell’s distributed I/O strategy, offering significant advantages over traditional centralized systems.
- Innovation Point 1: High-Density Distributed Architecture. Unlike bulky card racks, the FLEX I/O system allows the 1794-IB32 to be installed close to the machine sensors, drastically reducing long wire runs and associated noise. The module’s 32-point density in a single slot optimizes panel space, a critical factor in modern compact machinery design.
- Innovation Point 2: Hot Swap Capability. The module’s design separates the electronics (1794-IB32) from the wiring terminals (1794-TB base). This allows for hot swapping; a faulty module can be replaced without powering down the entire system or disturbing the field wiring, minimizing production downtime in continuous process industries.
- Innovation Point 3: Robust Sinking Input Design. The module uses a sinking (NPN-compatible) input circuit, which is the industry standard for robustness in noisy environments. The input filter and 50V isolation provide immunity against voltage transients and ground loops commonly found in industrial settings with heavy motor loads.
