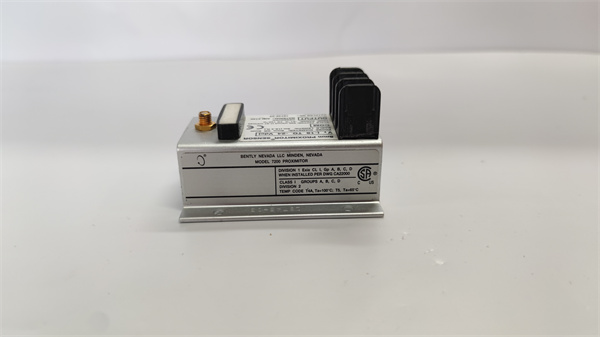

Bentley 18745-04 is a preamplifier module in the Bentley Nevada TSI(Turbine Supervisory Instrumentation)system,mainly used for vibration,displacement,and condition monitoring of industrial equipment.The following is a comprehensive analysis of its core functions and technical features:
1、Core functions and design
Vibration and displacement monitoring
As the core component of the eddy current sensor system,it can collect real-time parameters such as vibration,axial displacement,key phase,etc.of rotating machinery(such as steam turbines,compressors,motors)by connecting probes and extension cables,supporting high-precision dynamic monitoring.
Support 3300XL 8mm probe system,compatible with 4-meter non armored or armored extension cables(such as 330130-040-00-00),ensuring stable signal transmission and anti-interference ability.
Industrial grade protection and compatibility
Compatible with multiple preamplifier models(such as 330180-50-00/CN,330180-51-00/CN),supports corrosion-resistant ClickLoc gold-plated copper connectors,easy to install and tool free,suitable for complex industrial environments such as high temperature and humidity.
The protection level is not clearly indicated,but based on TSI system design standards,it is speculated to have anti vibration,dustproof(IP65/IP67),and wide temperature range adaptability(-20°C to 60°C).
System Integration and Expansion
It can be integrated into the 3500 series monitoring system,supporting multi-channel data acquisition and analysis,and is suitable for monitoring the status of large rotating equipment in industries such as power plants,steel,and petrochemicals.
Support analog output modules(such as ROM-121 series)and network communication interfaces(such as SY/MAX)to achieve remote data transmission and centralized monitoring.
2、Technical parameters
Category parameters
System type eddy current sensor preamplifier
Applicable probe 3300XL 8mm probe
Extension cable 4-meter non armored or armored cable(such as 330130-040-00-00)
Interface type ClickLoc gold-plated copper connector,supports quick plugging and unplugging
Communication protocol analog signal output,compatible with SY/MAX network interface
Environmental adaptability,anti vibration,dust-proof,wide temperature range(-20°C to 60°C)
3、Application scenarios
Electricity and Energy
Monitor the axial displacement and vibration of steam turbines and generators to prevent shutdown accidents caused by equipment failures.
petrochemical industry
Real time tracking of the operating status of compressors and centrifuges to ensure stable process parameters.
Metallurgy and Manufacturing
Used for vibration analysis of fans and pumps,optimizing equipment maintenance cycles.
4、Technical advantages
high reliability
Based on the mature design of TSI system,it supports long-term continuous operation and is suitable for 24/7 industrial scenarios.
Modular expansion
By replacing different probes and cables,it can adapt to various monitoring needs such as vibration,displacement,and speed.
anti-interference ability
Gold plated connectors and shielding design reduce electromagnetic interference and ensure signal transmission accuracy.
