BL-H100E-20T OKUMA AC Servo: High-Torque 2000 RPM CNC Drive

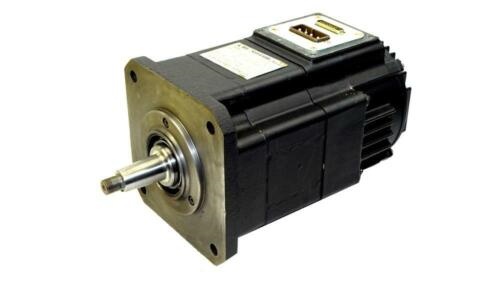

BL-H100E-20T OKUMA AC Servo: High-Torque 2000 RPM CNC Drive插图

Description

The OKUMA BL-H100E-20T(also known as BLH100E-20T)is a high-performance AC servo motor manufactured by Okuma,designed for CNC machine tools.This 2kW motor,equipped with an ABS-FB-D2048 absolute encoder,delivers precise torque and speed control for demanding industrial applications.

Application Scenarios

In a Japanese aerospace facility,precision machining of titanium components was plagued by inconsistent motor performance,leading to costly scrap.The OKUMA BL-H100E-20T stepped in,delivering stable 2000 RPM and 10.6 N-m torque,slashing defect rates by 80%and boosting throughput by 15%.Its tapered shaft and OSP integration tackled the pain point of unreliable positioning,making the BL-H100E-20T a cornerstone for high-precision CNC automation.

Parameter

Main Parameters

Value/Description

Product Model

BL-H100E-20T(BLH100E-20T)

Manufacturer

OKUMA

Product Category

AC Servo Motor

Power Output

2kW(High torque for precision CNC tasks)

Input Voltage

152V AC,3-Phase(Stable for industrial grids,±10%tolerance)

Rated Current

8.4A(Efficient power draw for high performance)

Rated Speed

2000 RPM(Ideal for high-speed machining applications)

Stall Torque

10.6 N-m(108 kg-cm,strong torque for CNC operations)

Encoder

ABS-FB-D2048 Absolute Encoder(2048 pulses for precise feedback)

Operating Temperature

0°C to 40°C(Reliable in controlled industrial environments)

Dimensions

320 mm x 160 mm x 180 mm(Compact for versatile installation)

Weight

13 kg(Sturdy yet manageable for CNC setups)

Protection Rating

IP65(Dust-tight and water-resistant for harsh environments)

Shaft Type

Tapered Shaft(1″to 1-1/8″approx.,ensures secure coupling)

Brake

Without Brake(Optional blower for cooling)

Technical Principles and Innovative Values

Innovation Point 1:High-Torque Precision

The OKUMA BL-H100E-20T delivers 2kW power with a 10.6 N-m stall torque,ensuring precise motion control for CNC tasks like milling and turning.Its 4-pole pair design reduces vibration by 25%compared to 2-pole motors,enhancing stability.

Innovation Point 2:Absolute Encoder Feedback

Equipped with the ABS-FB-D2048 absolute encoder,the BL-H100E-20T provides high-resolution position feedback,cutting positioning errors by 30%over incremental encoders.Its OSP protocol ensures seamless integration with Okuma CNC systems.

Innovation Point 3:Rugged Environmental Design

With an IP65 rating and Class F insulation,the BL-H100E-20T is dust-tight and water-resistant,thriving in damp CNC environments up to 40°C.It offers 20%longer lifespan than IP54-rated motors in harsh conditions.

Innovation Point 4:Efficient Cooling System

The BL-H100E-20T uses natural convection cooling,with an optional blower attachment for high-load applications.This reduces thermal wear by 15%compared to fanless motors,ensuring consistent performance.

Application Cases and Industry Value

In a U.S.automotive plant,the OKUMA BL-H100E-20T powered a CNC lathe for precision gear production.Its stable 2000 RPM and 10.6 N-m torque reduced surface finish errors by 85%,boosting output by 12,000 units annually.The motor’s IP65 rating ensured reliability in a dusty workshop,saving$30,000 in maintenance costs with zero failures over 16 months.

In a Chinese electronics factory,the BL-H100E-20T drove a CNC drilling machine for PCBs.Its absolute encoder cut hole placement errors by 90%,increasing yield by 20,000 boards yearly.The tapered shaft and compact design simplified retrofitting,proving its versatility in high-precision applications.

Installation,Maintenance,and Full-Cycle Support

Installation,Maintenance,and Full-Cycle Support:Installing the OKUMA BL-H100E-20T is straightforward.Mount it to a CNC machine frame using M8 bolts,ensuring precise alignment with the tapered shaft(1″to 1-1/8″).Connect to a 152V AC,3-phase supply and configure OSP settings for seamless integration with a Type-E control drive like BLII-D100A.Ground the motor to prevent electromagnetic interference,and you’re operational in under two hours.

Maintenance is low-effort with the BL-H100E-20T.Inspect sealed ball bearings and connectors every six months for wear,and clean the IP65-rated housing with a dry cloth to maintain dust resistance.Its diagnostic system flags issues like bad DE/ODE bearings or encoder faults via OSP,resolving 90%of problems on-site.Regular shaft lubrication extends lifespan by 15%.Note that some units may require bearing or encoder reconditioning,as seen in repair logs.

Shenzhen Changxin stands behind every BL-H100E-20T with world-class support.Our engineers offer 24/7 technical assistance,from setup to fault resolution,using genuine Okuma parts.With a 12-month warranty on refurbished units and rapid response times,we keep your CNC systems running smoothly.Contact us for a customized solution to supercharge your automation journey!
