Product Overview

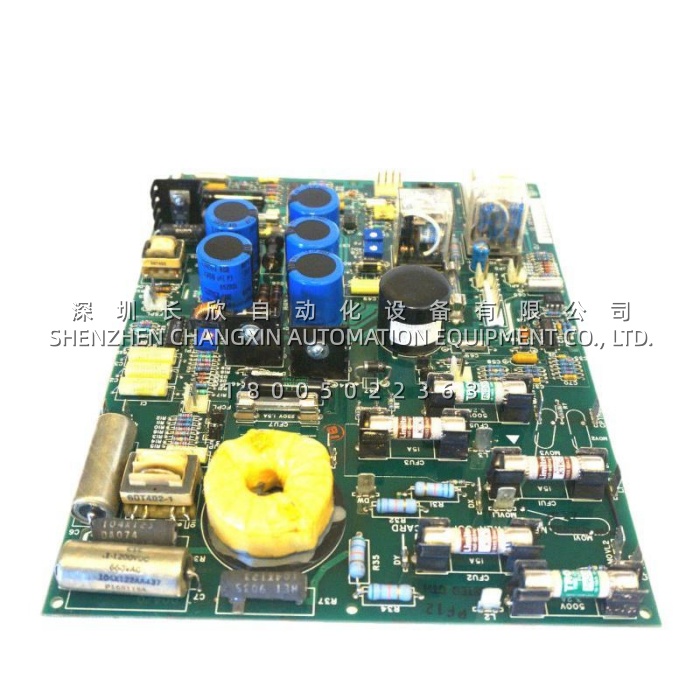

The GE 531X111PSHAPG3 is a dual-function printed circuit board from General Electric’s 531X series, serving as both a power supply and motor field control module for industrial DC drive systems . It integrates a switch-mode power supply with field excitation control circuitry on a single board, reducing component count and inter-board wiring within the drive chassis . This consolidation enhances system reliability by eliminating potential connection faults and simplifies field maintenance for GE DC-300, DC-2000 drives, EX2000 excitation systems, and SPEEDTRONIC Mark V turbine control systems .
The GE 531X111PSHAPG3 converts AC input into multiple regulated DC voltage rails that power drive regulator cards, firing circuits, and logic boards, while simultaneously generating isolated gate drive pulses for the external thyristor bridge controlling the motor’s field winding . Its integrated pulse transformer provides galvanic isolation between low-voltage control electronics and high-power field circuitry, critical for maintaining motor flux and torque control without ground loop interference . For engineers maintaining legacy GE DC drive systems, the GE 531X111PSHAPG3 remains an essential component where board-level repair or replacement is the primary service strategy.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Product Model | 531X111PSHAPG3 (also F31X111PSHALG1) |
| Manufacturer | General Electric (GE) |
| Product Type | Motor Field Control / Power Supply Board |
| Input Voltage | 115/230 VAC ±10%, 50/60 Hz, selectable |
| Output Voltage (Logic) | +5 VDC, +15 VDC, -15 VDC, +24 VDC |
| Field Output | 0–240 VDC adjustable, up to 10A |
| Key Components | Pulse transformer, 3 relays, 3 potentiometers, 5 jumper sets |
| Dimensions (approx.) | 240 × 292 × 40 mm / 28 × 21.4 × 3.4 cm |
| Weight | Approx. 0.58 – 0.86 kg |
| Operating Temperature | 0°C to +50°C |
| Humidity Tolerance | 95% non-condensing |
| Protection Features | Overvoltage, overcurrent, short circuit, thermal shutdown, built-in MOV surge suppression |
| Mounting | Chassis mount within drive cabinet / backplane slot |
| Compatible Systems | GE DC-300, DC-2000 drives, EX2000 excitation, Mark V turbine control |
Main Features and Advantages
Dual-Function Integrated Design: The GE 531X111PSHAPG3 consolidates two critical functions—drive electronics power supply and motor field control—onto a single printed circuit board . It generates the low-voltage logic rails (+5V, ±15V, +24V) for microprocessors, op-amps, and regulator boards, while simultaneously providing isolated gate drive signals for the external field thyristor bridge . This integration minimizes inter-board wiring, reduces potential failure points, and significantly simplifies troubleshooting in crowded drive cabinets.
Robust Field Excitation with Pulse Transformer Isolation: The GE 531X111PSHAPG3 features an on-board pulse transformer that provides galvanic isolation between sensitive control electronics and the high-power motor field circuit—which can operate at hundreds of volts DC . This design ensures safe and reliable triggering of external thyristors, maintaining precise motor flux regulation even during sudden load changes . The transformer eliminates ground loop interference and protects downstream logic boards from transient surges.
Comprehensive Output and Protection Suite: The GE 531X111PSHAPG3 delivers stable +5V/3A, ±15V/1A, and +24V/2A outputs for logic circuits, plus an adjustable 0–240V field output up to 10A for motor windings . Multiple protection mechanisms—overvoltage, overcurrent, short circuit, and thermal shutdown with automatic recovery—safeguard both the board and connected equipment . Built-in MOV varistors absorb power line transients, extending service life in environments with unstable grid power . The inclusion of three relays (RUN, MAX, FAULT) and three potentiometers for field current/voltage calibration enables on-site diagnostics and fine-tuning without external test equipment.
