Product Overview

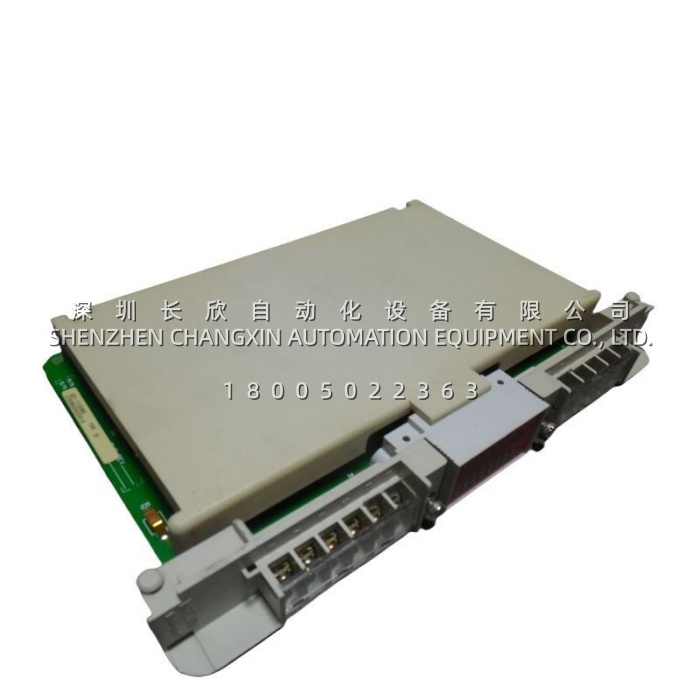

The Honeywell 621-1100RC​ is an eight-point discrete input module from the Honeywell 620/621 I/O family, the classic input hardware used with Honeywell’s IPC 620 and IPC 621 programmable controller platforms and their associated 600-series control architecture. Its job is straightforward but essential: it takes high-level 115 V AC or DC status signals from the plant floor — limit switches, pushbuttons, pressure and level switches, relay auxiliary contacts, motor overload alarms and breaker status contacts — and converts them into clean, isolated logic-level data that the controller can act on. Where a 24 V DC input card would be swamped by leakage current and induced noise on long cable runs, the 621-1100RC​ works comfortably at the 115 V level that most legacy motor control circuits and annunciator systems already use, so existing field wiring and voltage levels can be reused rather than re-engineered.Electrically, the 621-1100RC​ accepts a nominal 115 V AC/DC signal across a working band of 90 to 140 V, drawing between 6 and 21 mA with a typical 12 mA at nominal voltage, and it tolerates up to 2 mA of AC or 3 mA of DC leakage current in the off state without falsely registering a logic one. The eight inputs are arranged as two groups of four, each group sharing a common, which gives panel designers enough flexibility to mix sources while keeping isolation boundaries sensible. Response is fast enough for machine and process interlocking: 2.4 ms plus up to half a line cycle on the off-to-on transition and 17 ms on the on-to-off transition.The suffix on the Honeywell 621-1100RC​ is what distinguishes it from the plain 621-1100. The R designation means the module can be removed from or inserted into an I/O rack while that rack remains powered, with the remaining modules continuing to control the machine or process. On a continuous plant where a single failed input card would otherwise mean a rack shutdown, that single letter is worth hours of avoided downtime.

Technical Specifications

Main Features and Advantages

Hot-swap that protects production, not just hardware: The defining advantage of the Honeywell 621-1100RC​ is the R designation. Because the card can be withdrawn and replaced with the rack energised, maintenance on a failed input channel does not become a rack outage, and a process that cannot easily be stopped — a boiler, a compressor train, a continuous reactor line — keeps running while the swap happens. For plants that have calculated their cost of downtime, this is usually the single strongest reason to insist on the RC version over a non-R equivalent.Input level matched to real plant wiring: Working at 115 V AC/DC rather than 24 V DC means the 621-1100RC​ interfaces directly with the voltage class already present in most motor control centres, solenoid panels and legacy annunciator systems. That avoids interface relays, saves panel space and eliminates a whole layer of components that would otherwise be failure points.Noise immunity where it matters: The generous 90–140 V operating band, combined with defined leakage tolerance of 2 mA AC or 3 mA DC and input-to-logic isolation, keeps the Honeywell 621-1100RC​ from chattering when long cable runs pick up induced voltage from adjacent power conductors, variable-speed drives or contactor coils. Inputs are conditioned so that a genuine field transition is detected cleanly rather than a noise transient.Fast, predictable response: With a 2.4 ms off-to-on delay plus up to half a line cycle, and 17 ms on-to-off, the 621-1100RC​ is quick enough for interlocking, position feedback and fast status monitoring, while the deliberate on-to-off filtering suppresses contact bounce and brief dropouts that would otherwise generate nuisance alarms.Diagnostics a technician can read at a glance: Per-channel LED indication on the Honeywell 621-1100RC​ means a maintainer can stand in front of the rack, compare the field device state with the LED, and decide in seconds whether the fault is in the field or in the card, which is exactly the kind of simplicity that keeps mean time to repair short on legacy systems.
