Product Overview

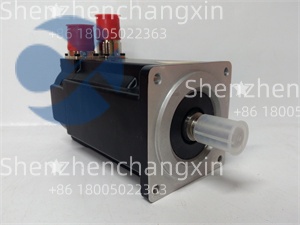

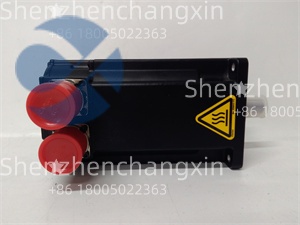

The AKM42E-EKGNR-01 is a high-performance servo motor manufactured by Kollmorgen,representing the industry-leading standard in the AKM series of servo motors.This advanced servo motor combines exceptional power density with compact design,delivering outstanding performance characteristics for demanding industrial automation applications.TheAKM42E-EKGNR-01features innovative engineering that maintains the same motor size while significantly increasing torque output,allowing original equipment manufacturers to dramatically improve equipment performance without requiring larger installation footprints or changing motor mounting brackets
.
As part of Kollmorgen’s comprehensive motion control portfolio,theAKM42E-EKGNR-01offers remarkable flexibility through its modular design approach.The motor provides multiple feedback options including resolver,SFD,incremental and sine encoders,with HIPERFACE DSL or EnDat 2.2 digital encoder support for enhanced functional safety applications.With its compact footprint and high power-to-size ratio,theAKM42E-EKGNR-01enables designers to optimize space utilization while achieving superior motion control performance in various industrial environments
.
TheAKM42E-EKGNR-01demonstrates exceptional reliability through its robust construction and advanced thermal management system.Utilizing 155°C(Class F)insulation materials,the motor’s windings are rated for 100°C temperature rise over a 40°C ambient environment,ensuring long-term operational stability even under demanding conditions.The motor’s low inertia rotor design contributes to its excellent dynamic response characteristics,making it ideal for applications requiring rapid acceleration and precise positioning control
.
Technical Specifications
Parameter Name
Parameter Value
Product Model
AKM42E-EKGNR-01
Manufacturer
Kollmorgen
Product Type
Servo Motor
Rated Power
400 W
Rated Torque
1.7 Nm
Peak Torque
3.4 Nm
Rated Speed
3000 rpm
Maximum Speed
6000 rpm
Power Supply
75 VDC;120,240,480 VAC windings
Operating Temperature
0°C to+70°C
Storage Temperature
-40°C to+85°C
Protection Rating
IP65
Frame Size
42 mm
Dimensions
130 mm x 80 mm x 60 mm
Weight
1.5 kg
Insulation Class
Class F(155°C)
Feedback Options
Resolver,SFD,Incremental and Sine Encoders
Certifications
cURus,CE,UL Recognition
Main Features and Advantages
High Power Density and Performance:TheAKM42E-EKGNR-01delivers exceptional power density through its advanced electromagnetic design and high-quality materials.The motor achieves a rated torque of 1.7 Nm with a peak torque capability of 3.4 Nm,providing substantial torque reserve for demanding applications.This high torque density enables equipment designers to achieve superior performance without increasing motor size,making theAKM42E-EKGNR-01particularly valuable for space-constrained applications where maximizing performance per unit volume is critical
.
Advanced Feedback and Control Capabilities:The motor offers comprehensive feedback options including single-cable Kollmorgen intelligent feedback devices,HIPERFACE DSL,and EnDat 2.2 digital encoders.These advanced feedback systems provide precise position and velocity information,enabling high-accuracy motion control with minimal setup time.The direct compatibility with most Kollmorgen servo drives ensures seamless integration and optimal performance matching,while the various feedback options allow customization to meet specific application requirements and performance objectives
.
Robust Construction and Environmental Protection:Engineered for industrial environments,theAKM42E-EKGNR-01features IP65 protection rating,making it suitable for applications where exposure to dust and water spray may occur.The motor’s construction includes high-quality materials and precision manufacturing processes that ensure reliable operation in challenging conditions.Various sealing options are available to enhance environmental protection,while the motor’s thermal management system maintains optimal operating temperatures even during continuous high-performance operation
.
Flexible Configuration Options:TheAKM42E-EKGNR-01provides extensive customization possibilities through multiple mounting configurations,shaft options,and connection interfaces.Options include closed or open keyway shaft ends,flat or smooth finishes,and various connector configurations including dual or single Intercontec connectors in straight or rotatable versions.This flexibility allows for easy integration with existing equipment and systems,while the modular design approach enables quick adaptation to changing application requirements
.
Application Field
TheAKM42E-EKGNR-01finds extensive application in precision manufacturing equipment where high-speed,high-accuracy motion control is essential.In CNC machine tools,the motor provides the precise positioning and velocity control required for complex machining operations,enabling manufacturers to achieve tight tolerances and superior surface finishes.The motor’s high torque density and rapid acceleration capabilities make it particularly suitable for applications involving frequent start-stop cycles and direction changes,such as in robotic loading and unloading systems for machine tools
.
Packaging and material handling systems benefit significantly from theAKM42E-EKGNR-01’s performance characteristics.In packaging machinery,the motor enables precise control of film registration,cutting operations,and product positioning,ensuring consistent package quality and high production throughput.The motor’s compact design allows for space-efficient integration into packaging equipment,while its high reliability ensures minimal downtime in high-volume production environments.Material handling applications including conveyor systems,pick-and-place robots,and automated storage and retrieval systems utilize the motor’s precise motion control capabilities to optimize material flow and handling efficiency
.
Printing and converting equipment represents another major application area for theAKM42E-EKGNR-01.In printing presses,the motor provides accurate web tension control and registration maintenance,critical for achieving high-quality print results.The motor’s ability to maintain precise speed synchronization across multiple printing stations ensures consistent color registration and print quality.Converting applications such as slitting,rewinding,and die-cutting benefit from the motor’s high dynamic response and precise torque control,enabling efficient material processing with minimal waste
.
Related Products
AKM23E-EKGNR-01:200 W servo motor module with similar design characteristics,suitable for lower power applications requiring the same level of precision and reliability
.
AKM34E-EKGNR-01:300 W servo motor offering intermediate power capability between the 200 W and 400 W models,providing flexibility in power selection for various application requirements
.
AKM56E-EKGNR-01:500 W servo motor module designed for applications requiring higher power output while maintaining the same compact form factor and performance characteristics
.
AKD Series Servo Drives:Comprehensive range of servo drives specifically designed to complement the AKM series motors,providing optimized performance matching and advanced control features
.
SERVOSTAR Drives:High-performance servo drives that offer seamless integration with AKM series motors,delivering enhanced motion control capabilities and comprehensive diagnostic functions
.
Installation and Maintenance
Pre-installation preparation:Proper installation of theAKM42E-EKGNR-01requires careful consideration of environmental conditions and mechanical alignment.Ensure the installation location meets the specified temperature and humidity requirements,with adequate clearance for ventilation and maintenance access.Verify that the mounting surface is flat and clean,and use appropriate mounting hardware to ensure secure attachment without distorting the motor housing.Check electrical connections for proper torque values and ensure all cables are routed to avoid stress on connectors
.
Maintenance recommendations:Regular maintenance of theAKM42E-EKGNR-01focuses on preventive measures to ensure long-term reliability.Establish a scheduled inspection routine to check electrical connections,monitor operating temperatures,and verify mechanical integrity.Keep the motor clean and free from dust accumulation,paying particular attention to cooling fins and ventilation openings.Perform periodic checks of feedback devices and encoder signals to maintain optimal performance.Implement firmware updates according to manufacturer recommendations and maintain detailed records of operational parameters for trend analysis and predictive maintenance planning
.
Product Guarantee
We guarantee that theAKM42E-EKGNR-01meets all original manufacturer specifications and performance standards.Our comprehensive quality assurance process includes rigorous testing and verification procedures to ensure reliable operation in demanding industrial environments.We provide complete technical support covering installation guidance,configuration assistance,and operational troubleshooting to ensure successful implementation.Our commitment extends throughout the product lifecycle,with ongoing support for maintenance,performance optimization,and system upgrades.We maintain adequate inventory of critical components to support urgent requirements and offer replacement services for defective units within warranty terms,ensuring minimal downtime and maximum operational efficiency for our customers
