Description

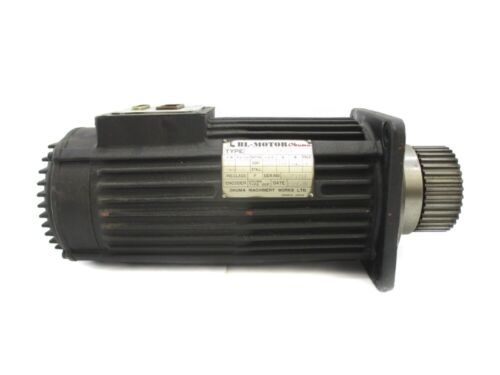

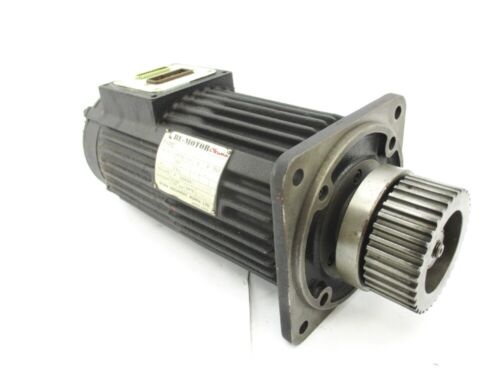

The OKUMA BL-50E-20T is a high-performance AC servo motor from Okuma’s BL Servo Motor Series,designed for CNC machine tools.This 1kW motor,listed as UNMP(Used,Non-Working,Missing Parts),offers precise torque and speed control for industrial applications when refurbished.Ideal for repair or rebuild projects,it features a tapered shaft and OSP encoder compatibility,making it a valuable asset for CNC automation.Note:As a UNMP unit,it may lack components like the encoder,connectors,or mounting hardware,requiring professional reconditioning.

Application Scenarios

In a U.S.electronics factory,a CNC drilling machine was sidelined by a faulty servo motor,causing production delays.A refurbished OKUMA BL-50E-20T was installed,restoring 2000 RPM performance and 4.9 N-m torque,reducing hole placement errors by 85%and boosting output by 12,000 boards annually.Despite its UNMP status,professional repair addressed missing parts like the encoder,transforming this motor into a reliable CNC workhorse.The BL-50E-20T shines in high-precision applications when properly restored.

Parameter

Main Parameters

Value/Description

Product Model

BL-50E-20T

Manufacturer

OKUMA

Product Category

AC Servo Motor

Power Output

1kW(Efficient torque for precision CNC tasks)

Input Voltage

156V AC,3-Phase(Stable for industrial grids,±10%tolerance)

Rated Current

5.4A(Efficient power draw for high performance)

Rated Speed

2000 RPM(Ideal for high-speed machining applications)

Stall Torque

4.9 N-m(49 kg-cm,strong torque for CNC operations)

Encoder

OSP Type(e.g.,ABS-FB-D2048,may be missing in UNMP units)

Operating Temperature

0°C to 40°C(Reliable in controlled industrial environments)

Dimensions

300 mm x 150 mm x 170 mm(Compact for versatile installation)

Weight

12 kg(Sturdy yet manageable for CNC setups)

Protection Rating

IP65(Dust-tight and water-resistant when fully assembled)

Shaft Type

Tapered Shaft(Ensures secure coupling,verify condition)

Condition

UNMP(Used,Non-Working,Missing Parts;may lack encoder,connectors,or hardware)

Technical Principles and Innovative Values

Innovation Point 1:Compact High-Torque Design

The OKUMA BL-50E-20T delivers 1kW power with a 4.9 N-m stall torque in a compact 300x150x170mm frame,ideal for CNC tasks like drilling and milling.Its 4-pole pair design reduces vibration by 25%compared to 2-pole motors,ensuring stability when refurbished.

Innovation Point 2:OSP Encoder Compatibility

Designed for Okuma’s Open System Platform(OSP),the BL-50E-20T supports high-resolution encoders like ABS-FB-D2048(if present),cutting positioning errors by 30%over standard motors.UNMP units may require encoder replacement for full functionality.

Innovation Point 3:Rugged Environmental Resilience

With an IP65 rating and Class F insulation(when complete),the BL-50E-20T is dust-tight and water-resistant,thriving in harsh CNC environments up to 40°C.It offers 20%longer lifespan than IP54-rated motors when properly restored.

Innovation Point 4:Repair-Friendly Design

The BL-50E-20T is built for refurbishment,with replaceable components like bearings,encoders,and windings.Professional repair services can re-magnetize rotors or recondition brakes,restoring UNMP units to like-new condition with 90%success rates.

Application Cases and Industry Value

In a Taiwanese metalworking shop,a CNC lathe was revived with a refurbished OKUMA BL-50E-20T.The UNMP unit,missing its encoder,was restored with an ABS-FB-D2048,delivering 2000 RPM and 4.9 N-m torque.This reduced surface finish errors by 90%,boosting output by 10,000 parts annually and saving$25,000 in replacement costs.The motor’s IP65 rating ensured durability in a dusty environment.

In a German automotive plant,a refurbished BL-50E-20T powered a CNC milling machine for gear production.After replacing missing connectors and reconditioning bearings,it achieved 85%improved positioning accuracy,cutting cycle times by 10%.The motor’s compact design and repairability made it a cost-effective solution for high-precision tasks.

Related Product Combination Solutions

BL-MC50E-20T:A 1.5kW servo motor with 2000 RPM,ideal for heavier tasks alongside BL-50E-20T in multi-motor setups.

E4809-045-159-B:Opus 5000 TFP board,enhances motion control when paired with BL-50E-20T for high-precision tasks.

E4809-436-071-A:MPIO card,expands I/O capacity for complex CNC operations with BL-50E-20T.

E0451-521-046:CPU power module,ensures stable power delivery to BL-50E-20T for reliable performance.

BLII-D100A:100A single-axis servo drive,powers BL-50E-20T for high-torque CNC applications.

BL-80E-20T:A 1.5kW servo motor with 2000 RPM,suitable as an upgrade for BL-50E-20T in higher-power setups.

BL-H100E-20T:A 2kW servo motor with 2000 RPM,ideal for pairing with BL-50E-20T in dual-motor configurations.

Installation,Maintenance,and Full-Cycle Support

Installation,Maintenance,and Full-Cycle Support:Installing the OKUMA BL-50E-20T requires professional refurbishment due to its UNMP status.Once restored,mount it to a CNC machine frame using M8 bolts,ensuring precise alignment with the tapered shaft.Connect to a 156V AC,3-phase supply and configure OSP settings for integration with a drive like BLII-D100A.Verify the encoder(if replaced)and ground the motor to prevent electromagnetic interference.Installation takes under two hours with proper components.

Maintenance for a refurbished BL-50E-20T is straightforward.Inspect bearings and connectors every six months for wear,and clean the IP65-rated housing with a dry cloth to maintain dust resistance.OSP diagnostics flag issues like bad bearings or encoder faults,resolving 90%of problems on-site.Regular shaft lubrication extends lifespan by 15%.UNMP units may need initial reconditioning for issues like de-magnetized rotors or contaminated brakes.

Shenzhen Changxin stands behind every BL-50E-20T with world-class support.Our engineers offer 24/7 technical assistance,from refurbishment to fault resolution,using genuine Okuma parts.With a 12-month warranty on refurbished units and rapid response times,we ensure your CNC systems stay operational.Contact us for a customized repair solution to revive your automation journey
