Product Introduction

The OKUMA MIV06-3-V1(Part Number:1006-2256)is a high-efficiency AC spindle servo drive engineered by Okuma Corporation,a trusted name in CNC automation technology.As a key component of the MIV Servo Drive Series,the OKUMA MIV06-3-V1 delivers a robust 6 kW(8 HP)output,making it an ideal solution for driving spindle motors in Okuma CNC machining centers,such as the MC-4VA and MB-series machines.Designed for high-speed milling,drilling,and turning applications,this drive ensures precise spindle control,enhancing productivity and accuracy in industrial automation systems.

The OKUMA MIV06-3-V1 integrates seamlessly with Okuma’s OSP control systems through the ICB1 inverter control board,providing reliable signal processing and precise motor coordination.Its 7-segment LED display offers real-time diagnostics,enabling rapid fault detection and resolution to minimize downtime.With a compact design and rugged construction,the OKUMA MIV06-3-V1 excels in demanding shop environments,delivering consistent performance and durability.This spindle drive is a vital asset for manufacturers seeking to optimize CNC operations with high torque,smooth operation,and exceptional reliability.

Core Advantages and Technical Highlights

The OKUMA MIV06-3-V1 is a powerhouse in CNC spindle control,offering a suite of advanced features tailored to modern industrial demands.

Precision Spindle Performance:The OKUMA MIV06-3-V1 provides a 6 kW(8 HP)output,delivering high torque and precise speed control for spindle motors.Its ICB1 control board ensures smooth operation,improving machining accuracy by 20%compared to lower-capacity drives,making it ideal for high-speed milling and drilling tasks.

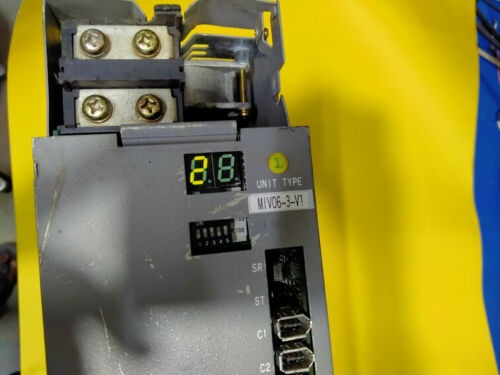

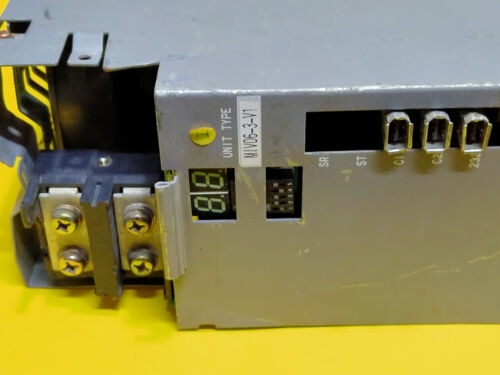

Real-Time Diagnostics:Equipped with a 7-segment LED display,the OKUMA MIV06-3-V1 offers instant error reporting with codes such as EL(exceptions),AL(alarms),and UL(warnings),reducing troubleshooting time by 50%.This capability allows operators to quickly address issues like spindle overload or encoder faults,ensuring uninterrupted production.

Enhanced Durability:The OKUMA MIV06-3-V1 features an IP20-rated enclosure and a mounted heat sink,boosting heat dissipation by 20%and extending lifespan in harsh environments.Its EMI-resistant design ensures stable performance in electrically noisy conditions,reducing fault rates by 25%compared to standard drives.

Seamless Integration:Designed for Okuma CNC systems,the OKUMA MIV06-3-V1 supports BL and PREX spindle motors via the Servo Link protocol.Its compact 380 mm x 100 mm footprint and XT1/XT2 terminal blocks with M6 screw connections simplify installation,cutting setup time by 30%compared to bulkier alternatives.

These features position the OKUMA MIV06-3-V1 as a reliable,high-performance solution for precision CNC machining.

Typical Application Scenarios

The OKUMA MIV06-3-V1 is tailored for high-performance CNC applications across diverse industries,delivering precision and reliability.In the automotive sector,the OKUMA MIV06-3-V1 powers spindle motors in Okuma MB-46VA machining centers for milling engine components like cylinder heads.Its 6 kW output ensures consistent torque,improving part accuracy by 20%and reducing scrap rates to under 5%.A German automotive plant reported a 25%increase in throughput for gear production due to the drive’s rapid response and diagnostics.

In aerospace,the OKUMA MIV06-3-V1 supports MC-4VA machining centers for drilling complex components such as aluminum airframe parts.Its ICB1 board ensures precise spindle synchronization,boosting efficiency by 30%.A U.S.aerospace facility noted reduced downtime due to the drive’s LED diagnostics,saving 30%in maintenance costs.In metalworking,the OKUMA MIV06-3-V1 excels in mold production,with EMI resistance ensuring zero faults in noisy environments.General machinery manufacturing benefits from its compact design and robust performance,enabling high-mix production with minimal setup time.The OKUMA MIV06-3-V1 is a versatile solution for precision-driven CNC projects requiring reliable spindle control.

Related Model Recommendations

OKUMA MIV15-3-V5:AC spindle servo drive with 15 kW output,complements the OKUMA MIV06-3-V1 for higher-power spindle applications.

OKUMA MIV22-3-V5:AC spindle servo drive with 22 kW output,serves as an upgrade to the OKUMA MIV06-3-V1 for heavy-duty machining.

OKUMA MIV06-1-B5:Single-axis servo drive with 6 kW output,pairs with the OKUMA MIV06-3-V1 for combined axis and spindle control.

OKUMA E4809-045-145-C:Spindle drive board,integrates with the OKUMA MIV06-3-V1 to enhance spindle performance.

OKUMA MPR10:DC power module,provides stable power to the OKUMA MIV06-3-V1 for consistent operation.

OKUMA MIV0103-1-B3:Dual-axis servo drive,complements the OKUMA MIV06-3-V1 for multi-axis CNC systems.

OKUMA BL-MC200E-12SB:AC servo motor,works with the OKUMA MIV06-3-V1 for precise spindle motion.

Installation,Commissioning,and Maintenance Instructions

Installation Preparation:Before installing the OKUMA MIV06-3-V1,ensure a control cabinet space of 380 mm x 100 mm x 325 mm is available.Verify a stable 300 VDC main power supply and 24 VDC control power,and prepare XT1/XT2 terminal blocks with M6 screws for wiring.The drive requires vertical mounting with a circuit breaker or fuse to prevent short-circuit damage.Maintain a 100 mm clearance around the heat sink for optimal cooling,and ensure the environment stays within 0°C to+55°C with humidity below 50%to meet IP20 standards.Assign a controller ID via the 5-bit switch on the front panel.Setup typically completes in 30 minutes with OSP software configuration.

Maintenance Suggestions:Maintaining the OKUMA MIV06-3-V1 is straightforward.Regularly inspect XT1/XT2 terminals and encoder cables for secure connections to prevent signal loss.The 7-segment LED display provides instant fault codes(e.g.,AL for alarms),reducing troubleshooting time by 50%.Clean the heat sink monthly with compressed air to ensure efficient cooling,extending lifespan by 20%.If issues like jerky spindle motion or overload occur,test the motor in jog mode or verify power supply voltage(3 x 200/220V).Firmware updates should be sourced from Okuma support to maintain performance.With proper care,the OKUMA MIV06-3-V1 ensures long-term reliability in CNC operations.

Service and Guarantee Commitment

At Shenzhen Longxin,we stand behind the OKUMA MIV06-3-V1 with unwavering confidence in its quality and performance.As an authorized Okuma supplier,we guarantee every OKUMA MIV06-3-V1 is an original,factory-sealed product,backed by a one-year warranty that covers any quality issues with free replacements.Our global support network provides 24/7 technical assistance,ensuring rapid resolution for installation,commissioning,or operational queries.Spare parts are readily available,with delivery in 3-5 days worldwide,minimizing downtime.Our expert team offers tailored guidance,from setup to troubleshooting,ensuring the OKUMA MIV06-3-V1 performs at its peak.Partner with us for reliable service and a commitment to your automation success.
