Product Introduction

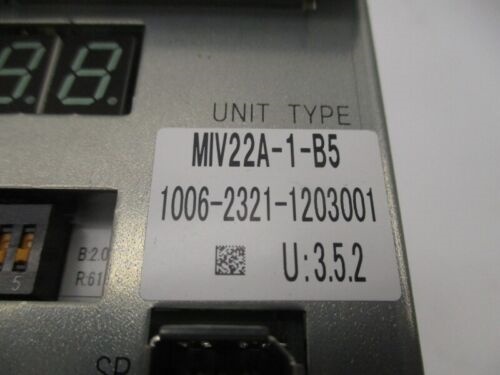

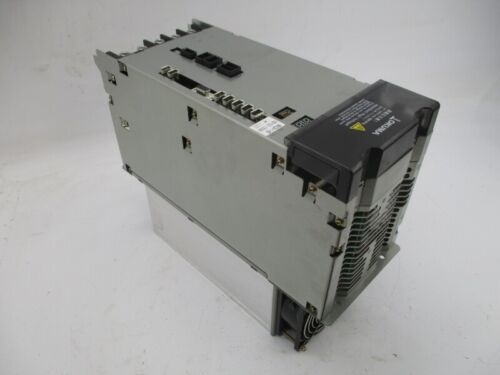

The Okuma MIV22A-1-B5(1006-2321-1203WBR001)is a high-performance spindle servo drive from Okuma’s well-established MIV series.Specifically engineered for use in CNC machining centers and lathes,this unit delivers robust torque and precise spindle control,essential for demanding cutting and forming operations.With a continuous power output of 22 kW,the MIV22A-1-B5 supports large-scale applications such as deep milling,contouring,and multi-axis machining with exceptional stability.

As part of Okuma’s integrated drive-control architecture,the MIV22A-1-B5 is equipped with an onboard logic processor that reduces response time and enhances synchronization with servo axes.It utilizes a modular design,making it ideal for both OEM system integration and after-market retrofit needs.The unit also maintains compatibility with legacy Okuma systems,making it a go-to solution for both upgrades and repairs.

In precision machining environments,the MIV22A-1-B5 ensures smooth acceleration,minimal vibration,and reliable thermal performance.Its compact footprint and rugged design allow it to fit neatly into control cabinets,contributing to space efficiency and streamlined wiring.Widely recognized for its reliability and performance,it remains one of the most trusted spindle drive solutions in modern industrial automation.

Core Advantages and Technical Highlights

Integrated control logic for faster response:

The MIV22A-1-B5 features an embedded processor that handles motor control logic directly on the unit.This eliminates the need for external control modules and shortens processing time,resulting in more accurate spindle positioning and improved machining precision.

High-output spindle power:

Delivering 22 kW continuously,the MIV22A-1-B5 meets the torque and speed demands of high-inertia applications.Its stable power output ensures excellent performance in operations such as gear roughing,mold milling,and large-part turning.

Modular and compact design:

Despite its power,the drive maintains a relatively small footprint,making it suitable for retrofitting into existing panels.The modular layout simplifies installation and maintenance,reducing overall downtime during equipment upgrades.

Advanced communication interfaces:

With support for servo link,encoder link,and converter link protocols,the MIV22A-1-B5 facilitates real-time synchronization between the drive and the CNC controller.This ensures stable speed control and accurate feedback from the spindle motor.

Built-in protection features:

The drive includes integrated safeguards against over-voltage,over-current,and thermal overload.These functions prevent unplanned shutdowns,contributing to system longevity and operator safety.

Robust cooling and heat dissipation:

An internal fan and ribbed heat sink provide consistent cooling under full load conditions.This ensures thermal stability,even in continuous or high-speed operations over long production cycles.

Compatible with legacy and current systems:

Designed to operate seamlessly with Okuma’s OSP control platforms and VAC motors,the MIV22A-1-B5 ensures excellent backward compatibility,helping users maximize their existing investment in Okuma machinery.

Application Areas

The MIV22A-1-B5 finds widespread application across industries where high spindle torque and precision are essential.In the aerospace sector,it is often used for titanium and Inconel machining,where material resistance demands stable power delivery and minimal vibration.Its performance under load ensures smoother surface finishes and accurate dimensional tolerances.

In the automotive industry,the MIV22A-1-B5 powers spindles for transmission housing milling,cylinder block boring,and crankshaft machining.Its ability to maintain torque across varying speeds supports uninterrupted production and extended tool life.

The MIV22A-1-B5 is also commonly deployed in tool and die manufacturing,especially for deep cavity machining in molds and dies.Its precise spindle control is vital for fine detailing and surface texture quality.

System integrators and MRO teams rely on the MIV22A-1-B5 to restore aging Okuma systems,due to its drop-in compatibility with older drive racks.This drive allows plants to extend machine lifespan while achieving performance close to that of new installations.

Related Products

MIV22A-3-V1–Variant with three-axis support and different internal firmware logic;suitable for more complex multi-spindle applications.

MIV30-1-B5–Higher power spindle drive offering 30 kW for extremely high-load machining centers.

MIV0103-1-B5–Lower power version ideal for smaller spindles or lighter cutting requirements.

VAC5-D6–Digital drive for advanced integration with Okuma’s newer OSP-P control systems.

MIV0101A-1-B5–Compact axis drive for fine motion control and smaller CNC systems.

MIV0102-1-B5–Mid-range model balancing power and size,used in medium-duty CNCs.

OSP-E100L–Okuma’s CNC control unit that pairs with MIV series drives for complete system integration.

PNL-E10I–Display panel often used alongside MIV drives for real-time diagnostics and system configuration.

Okuma Spindle Motor BL-MC200J-20T–Compatible motor designed to match the MIV22A-1-B5 in terms of power and torque characteristics.

Installation,Commissioning and Maintenance

Installation preparation:

Before installing the MIV22A-1-B5,ensure that the control cabinet is clean,properly ventilated,and that no previous drive faults exist.Prepare appropriate mounting brackets and torque tools.The incoming power supply should be a stable 200–220 VAC three-phase source.Connect the power and signal cables carefully according to Okuma’s terminal designation.Make sure grounding is secure to avoid noise and electrical interference during operation.

Maintenance suggestions:

Regular maintenance of the MIV22A-1-B5 includes monthly visual inspection of the fan and heat sink.Accumulated dust should be removed using anti-static brushes or compressed air.Monitor spindle load and temperature readings via the CNC control panel for anomalies.If abnormal vibration or motor overheating occurs,inspect the drive’s output stages and connections.Always stock compatible spare units to ensure immediate replacement in case of unexpected failure.

Service and Guarantee Commitment

Every MIV22A-1-B5 we provide undergoes comprehensive functionality testing,thermal cycling,and signal integrity validation to ensure optimal performance.We offer a standard 12-month warranty covering all electrical and firmware-related issues under normal operating conditions.In addition,technical support is available for commissioning,parameter setup,and fault diagnosis.Our service team provides prompt remote troubleshooting and can guide you through swap procedures if needed.Our commitment is to deliver quality-assured,ready-to-use drives that help minimize machine downtime and maximize production efficiency.
