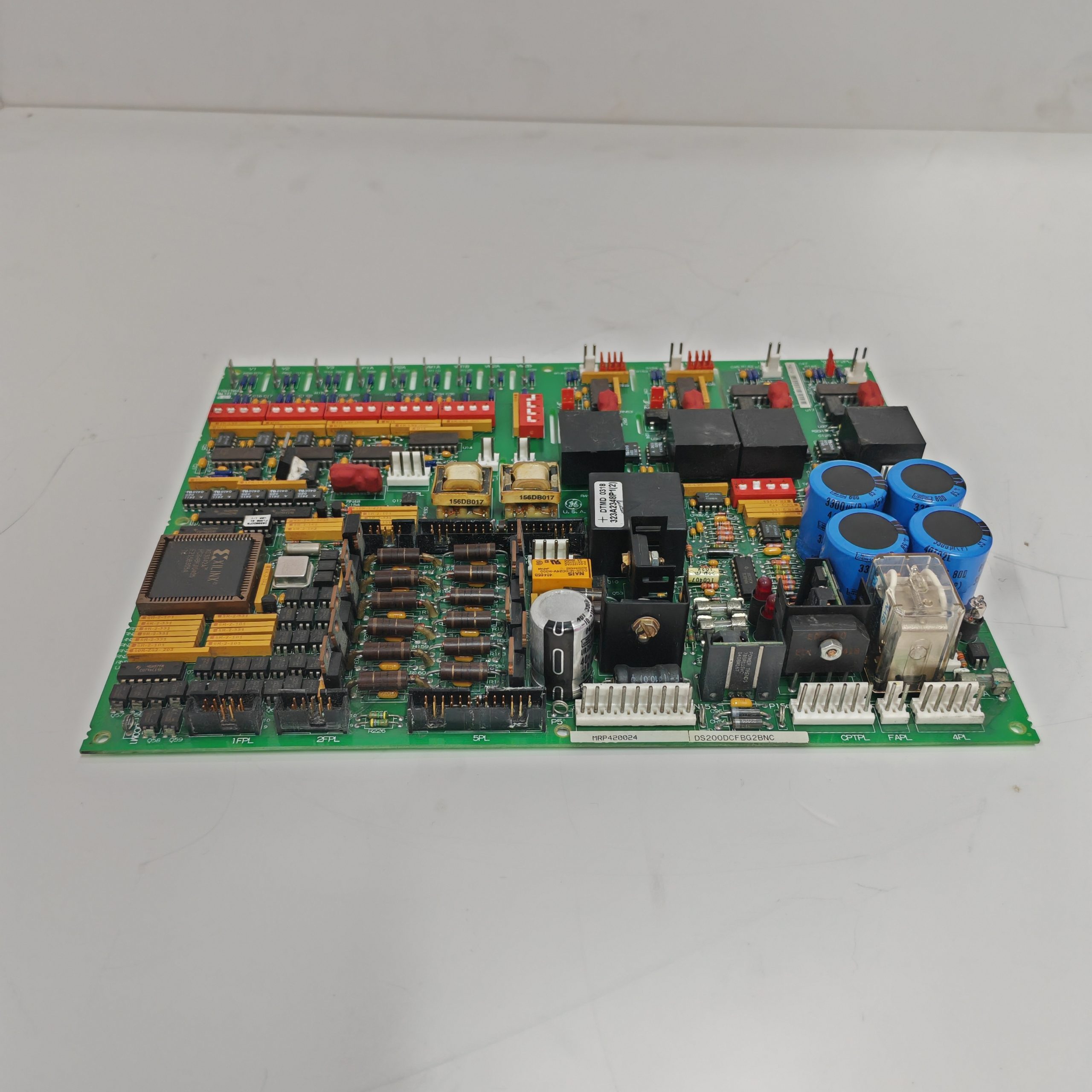

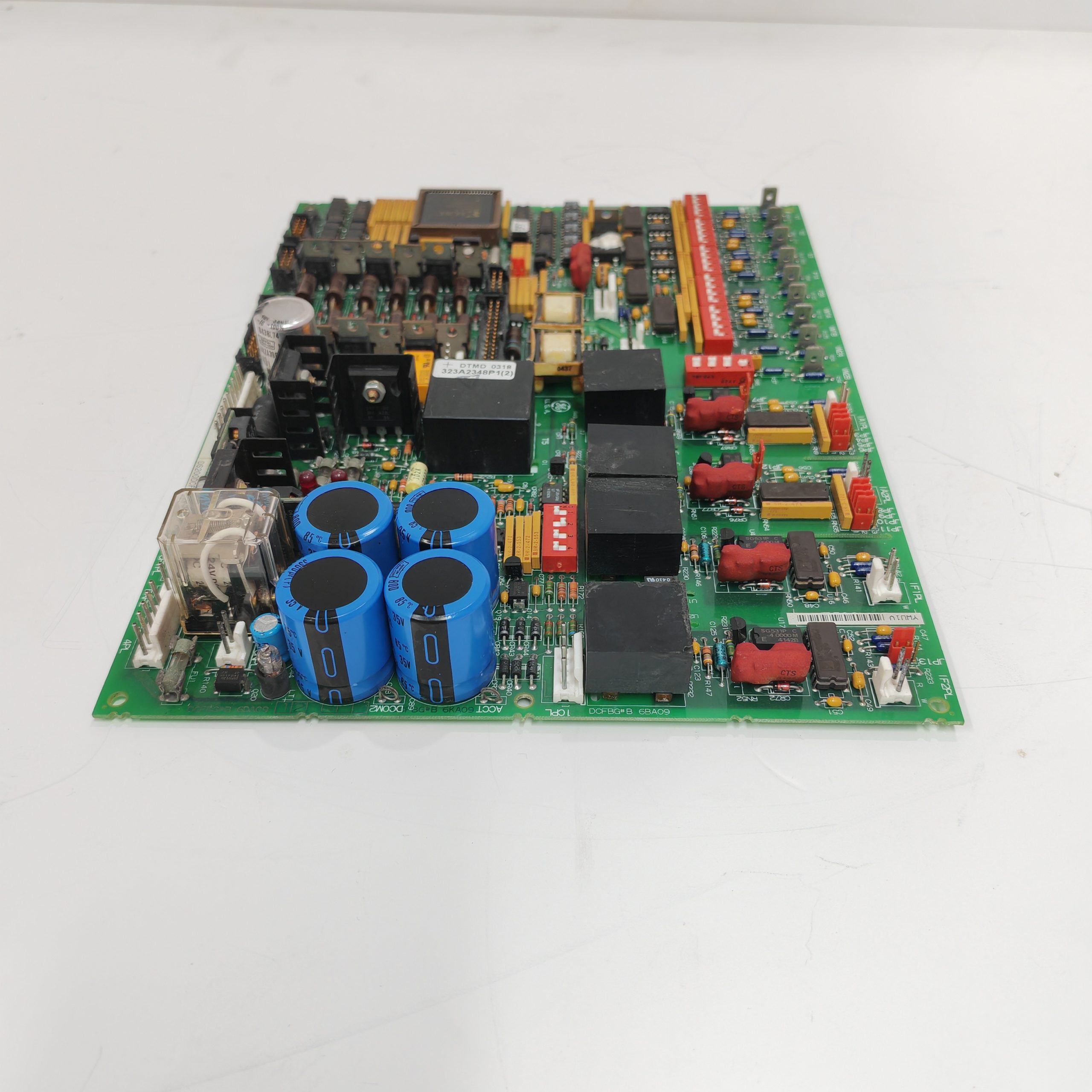

GE DS200DCFBG2BNC MRP420024 Product Introduction

GE DS200DCFBG2BNC MRP420024 is an industrial grade DC power module launched by General Electric (GE), designed specifically for high reliability scenarios. As an important member of the MRP series power products, this module supports wide voltage input, high-efficiency output, and multiple protection functions, suitable for stable power supply needs of industrial automation, power systems, and communication equipment.

Product Overview:

The GE DS200DCFBG2BNC MRP420024 adopts a modular design, compatible with GE industrial automation system standard interfaces, and can be directly integrated into PLC, sensor or actuator power supply networks. Its compact size and lightweight structure make it easy to install, while supporting hot swappable maintenance to reduce downtime. This product has passed ISO 9001 certification, meeting the stringent requirements for long-term stability in industrial environments.

Main technical parameters:

parameter description

Input voltage range 18VDC to 36VDC

Output voltage 24VDC

Output power 200W

Conversion efficiency ≥ 90%

Size 85mm x 55mm x 30mm

Working temperature -20 ℃ to 60 ℃

Protection function overvoltage/overcurrent/short circuit protection

Isolation level 2500V AC

Response time<10ms

Main features and advantages:

Wide voltage adaptability: Supports 18-36VDC input, adapts to different industrial power environments, and reduces equipment failures caused by voltage fluctuations.

High energy efficiency design: adopting advanced topology structure, with a conversion efficiency of over 90%, reducing energy consumption and minimizing heat dissipation requirements.

Multiple safety protections: Integrated overvoltage, overcurrent, and short-circuit protection mechanisms ensure the safety of equipment and circuits in case of abnormal conditions.

Compact compatibility: Complies with DIN rail installation standards, reduces volume by 30%, saves cabinet space, and is compatible with compact control systems.

Hot swappable maintenance: supports live replacement, reduces maintenance complexity, and improves system availability.

Application areas:

Industrial Automation: Provides stable 24VDC power supply for PLC, servo drives, and sensor networks.

Electricity and Energy: Applied in scenarios such as substation monitoring systems and photovoltaic inverter auxiliary power supply.

Communication infrastructure: providing redundant power supply for equipment such as base stations and switches.

Robots and motion control: powering precision equipment such as robotic arm joint motors and encoders.

Installation and compatibility:

Installed on DIN 35mm rails and secured with M4 screws, it supports parallel expansion (up to 4 modules).

The input interface is a 2.54mm spacing terminal, and the output interface is compatible with BNC coaxial cables or customized connectors.

Compatible with other power modules in the GE MRP series (such as MRP420020, MRP420030), it can flexibly construct multiple power supply systems.

Related products:

MRP420020:24VDC/150W power module, with low output power, suitable for small controllers.

MRP420030:24VDC/250W power module, with higher power, suitable for large equipment clusters.

DS200DCFBG2BNC adapter: BNC adapter, used to expand output interface compatibility.

GE 90-30 series PLC: such as IC693CPU350, it needs to be equipped with this power module to achieve integrated power supply and control.

GE DS200DCFBG2BNC MRP420024产品简介

GE DS200DCFBG2BNC MRP420024是通用电气（GE）推出的工业级直流电源模块，专为高可靠性场景设计。作为MRP系列电源产品的重要成员，该模块支持宽电压输入、高效率输出及多重保护功能，适用于工业自动化、电力系统及通信设备的稳定供电需求。

产品概述：

GE DS200DCFBG2BNC MRP420024采用模块化设计，兼容GE工业自动化系统标准接口，可直接集成至PLC、传感器或执行器供电网络。其紧凑尺寸与轻量化结构便于安装，同时支持热插拔维护，减少停机时间。该产品通过ISO 9001认证，满足工业环境对长期稳定性的严苛要求。

主要技术参数：

参数描述

输入电压范围18VDC至36VDC

输出电压24VDC

输出功率200W

转换效率≥90%

尺寸85mm x 55mm x 30mm

工作温度-20℃至60℃

保护功能过压/过流/短路保护

隔离等级2500V AC

响应时间<10ms

主要特点和优势：

宽电压适应性：支持18-36VDC输入，适配不同工业电源环境，减少因电压波动导致的设备故障。

高能效设计：采用先进拓扑结构，转换效率达90%以上，降低能耗并减少散热需求。

多重安全防护：集成过压、过流及短路保护机制，确保异常情况下设备与电路安全。

紧凑兼容性：符合DIN导轨安装标准，体积缩小30%，节省机柜空间，适配紧凑型控制系统。

热插拔维护：支持带电更换，降低维护复杂度，提升系统可用性。

应用领域：

工业自动化：为PLC、伺服驱动器及传感器网络提供稳定24VDC电源。

电力与能源：应用于变电站监控系统、光伏逆变器辅助供电等场景。

通信基础设施：为基站、交换机等设备提供冗余电源保障。

机器人与运动控制：为机械臂关节电机、编码器等精密设备供电。

安装与兼容性：

采用DIN 35mm导轨安装，通过M4螺钉固定，支持并联扩展（最多4个模块）。

输入接口为2.54mm间距端子，输出接口兼容BNC同轴电缆或定制化接头。

兼容GE MRP系列其他电源模块（如MRP420020、MRP420030），可灵活构建多路供电系统。

相关产品：

MRP420020：24VDC/150W电源模块，输出功率较低，适用于小型控制器。

MRP420030：24VDC/250W电源模块，功率更高，适配大型设备集群。

DS200DCFBG2BNC适配器：BNC转接头，用于扩展输出接口兼容性。

GE 90-30系列PLC：如IC693CPU350，需搭配该电源模块实现供电与控制一体化。
