Product Overview

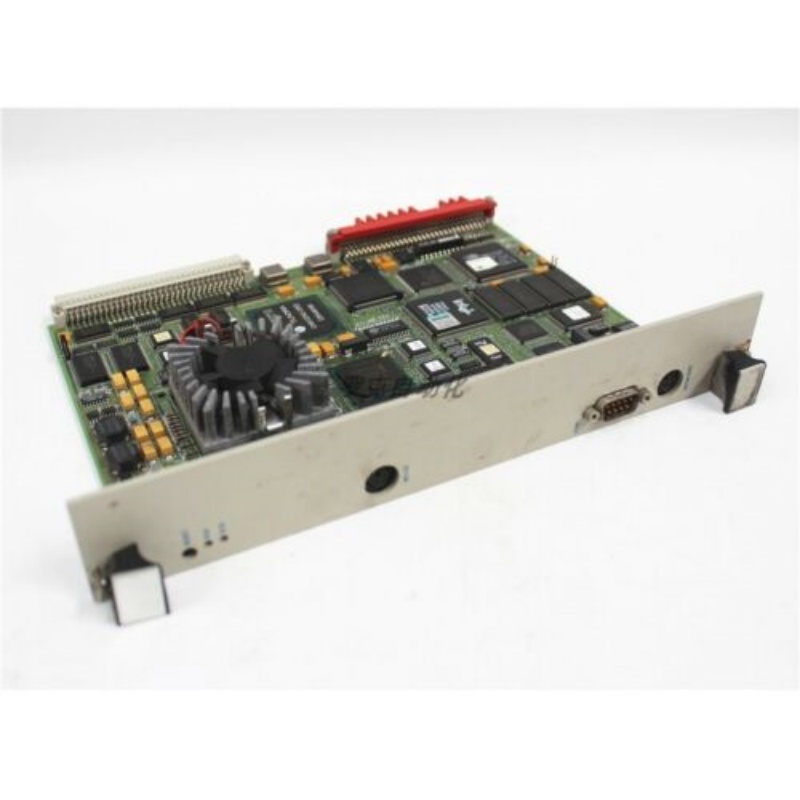

Radisys IC660ELB906S is an ISA bus interface card specially designed for industrial automation and data acquisition applications.The card supports a variety of input and output functions and is suitable for environments that require high reliability and stability,such as factory automation,process control and test measurement.

Technical parameter

Main features

Bus Type:ISA(Industry Standard Architecture)

Number of input/output channels:the specific number depends on the configuration

Compatibility:Compatible with widely used operating systems,including but not limited to Windows series and Linux

Installation method:Plug-in ISA slot installation

Functional features

Multi-channel analog input/output:Support the input and output of multiple analog signals,suitable for complex sensor networks.

Digital I/O ports:Several programmable digital input and output ports are provided to control external devices or receive status feedback.

Counter/timer function:Built-in hardware counter and timer can be used for accurate time interval measurement or event counting.

Interrupt support:Support the ISA bus interrupt mechanism to facilitate real-time response to external events.

Application scenarios

Industrial automation

On the industrial production line,the IC660ELB906S card can be used to monitor the state of the machine,collect key parameters such as temperature and pressure,and directly control the action of the actuator through its digital output port,so as to realize automatic process control.

Process control

For continuous production processes in chemical,petroleum and other industries,the card can continuously monitor various physical quantity changes on the production line and feedback this information to the central control system to maintain the stability of production.

Test measurement

In the laboratory environment,IC660ELB906S can be used as part of the data acquisition system to record various signals generated during the experiment and help researchers analyze the experimental results.

Installation and maintenance

Installation Guide

Turn off the computer and disconnect all connections.

Open the computer chassis and find the free ISA slot.

Carefully insert the IC660ELB906S card into the ISA slot to ensure that the card is fully in place and firmly fixed.

Reconnect the computer power and other peripherals to start the computer.

Install the corresponding drivers and software tools according to the accompanying documents.

Maintenance suggestions

Check the working status of the card regularly to ensure that there is no overheating.

Avoid use in dusty environments and take dust prevention measures if necessary.

When not using certain ports,please keep the relevant connectors well to prevent damage.

Conclusions

Although the ISA bus has been gradually replaced by more advanced standards such as PCIe with the development of technology,ISA cards such as Radisys IC660ELB906S still have a certain market value in some specific applications,such as the upgrading of old systems or small cost-sensitive small-scale projects.It not only provides the necessary I/O expansion capabilities,but also wins the favor of users for its simple and easy-to-use characteristics.This card is undoubtedly a good choice for professionals who seek stable and low-cost solutions.
